Neomounts FPMA-DTB200 Toolbar desk rail 10-24"

Neomounts FPMA-DTB200 Toolbar desk rail for 1-6 screens - 10-24" - max 10 kg/screen - VESA 75x75-100x100 - combinable with FPMA-DTBW100/DTBW200 - silver

Compare

Tell a friend

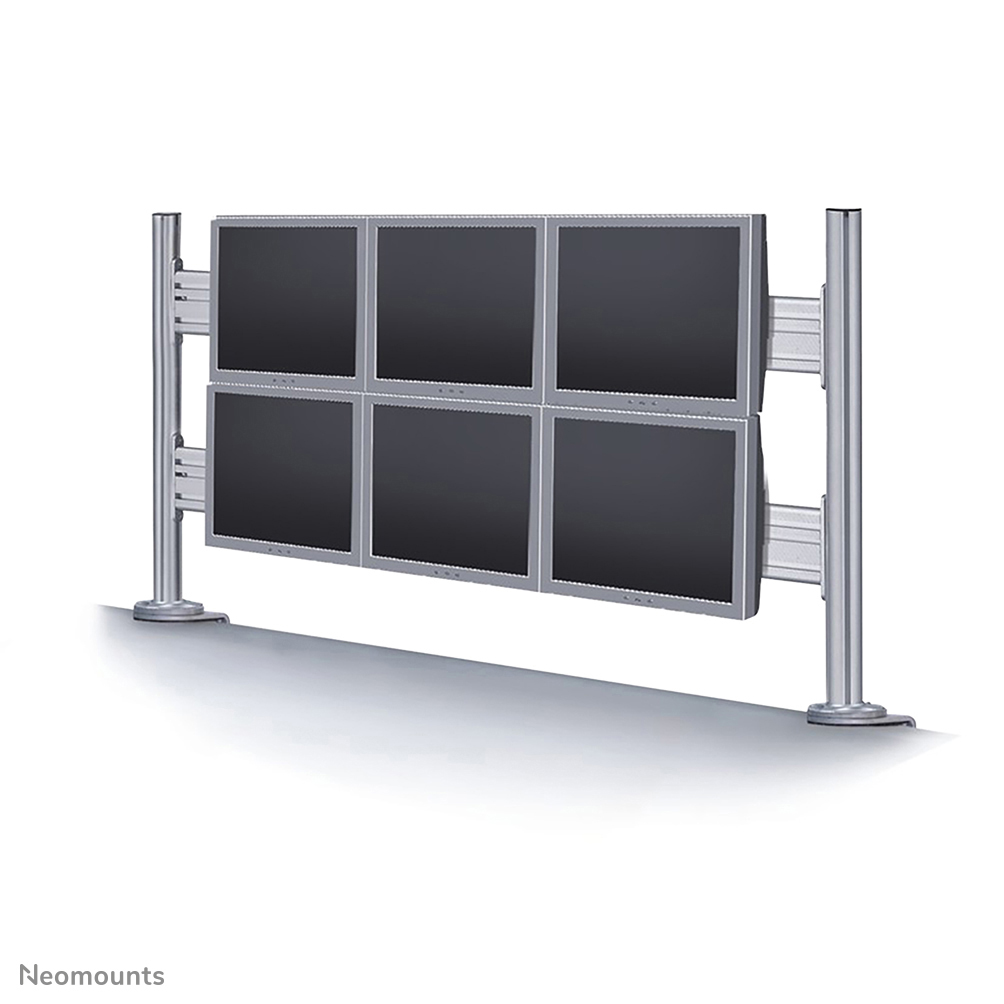

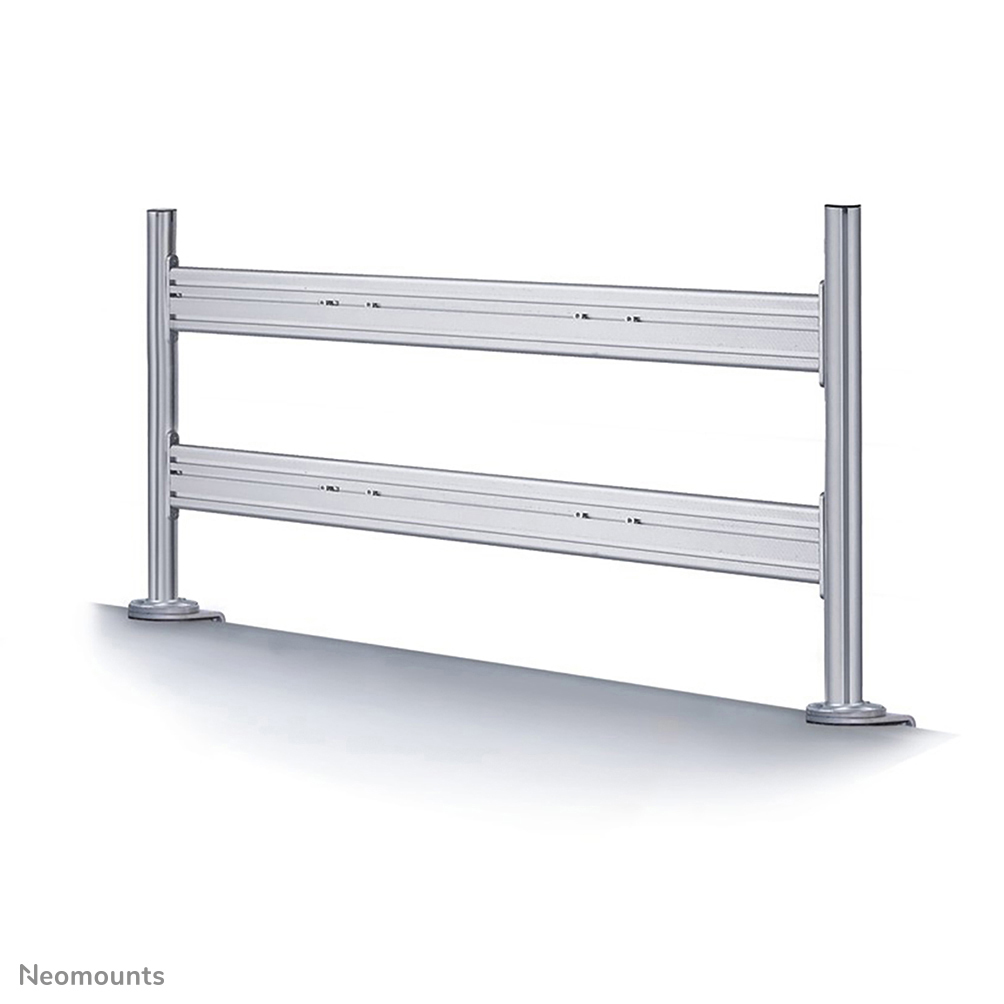

With the Neomounts FPMA-DTB200 toolbar desk rail, you can install up to 6 screens from 10-24" and maximum 10 kg per screen to the tabletop using a desk clamp. On the 130 cm wide toolbar, screens can easily be moved from left to right, utilizing the full functionality of the screens. The toolbar desk rail is supplied without monitor bracket; these should be ordered separately. Each screen requires one bracket. There are various monitor brackets available that can be combined with the FPMA-DTB200 toolbar desk mount: * The FPMA-DTBW100 monitor bracket is 8 cm deep and can both tilt and rotate. Its maximum capacity is 8 kg. * The FPMA-DTBW200 monitor bracket is 12 cm deep and features a tilt, rotate and swivel option. The maximum capacity of this bracket is 10 kg. Both monitor brackets are suitable for screens with a VESA hole pattern of 75x75 and 100x100 mm. FPMA-DTB200 toolbar desk mount features cable clips so cables can be easily and neatly routed.

Specifications

General

Min. screen size*:

10 inch

Max. screen size*:

24 inch

Min. weight:

0 kg (per screen)

Max. weight:

10 kg (per screen)

Screens:

6

VESA pattern:

75x75, 100x100 mm

VESA minimum:

75x75 mm

VESA maximum:

100x100 mm

Desk mount:

Clamp

Functionality

Type:

Fixed

Height adjustment:

0-70 cm

Depth adjustment:

8 cm

Adjustment type:

Manual

Information

Article number:

FPMA-DTB200

EAN:

8717371442279

Color:

Silver

Main material:

Aluminium

Warranty:

5 year

*Please note: The inch sizes stated are just an indication, combined with the weight and VESA sizes. The maximum weight and VESA size are absolute restrictions for the products and should not be exceeded.

10- 24 inch

0 - 10 kg

75x75 - 100x100 mm

0-70 cm

8 cm

5 year

Product information

With the Neomounts FPMA-DTB200 toolbar desk rail, you can install up to 6 screens from 10-24" and maximum 10 kg per screen to the tabletop using a desk clamp. On the 130 cm wide toolbar, screens can easily be moved from left to right, utilizing the full functionality of the screens. The toolbar desk rail is supplied without monitor bracket; these should be ordered separately. Each screen requires one bracket.

There are various monitor brackets available that can be combined with the FPMA-DTB200 toolbar desk mount:

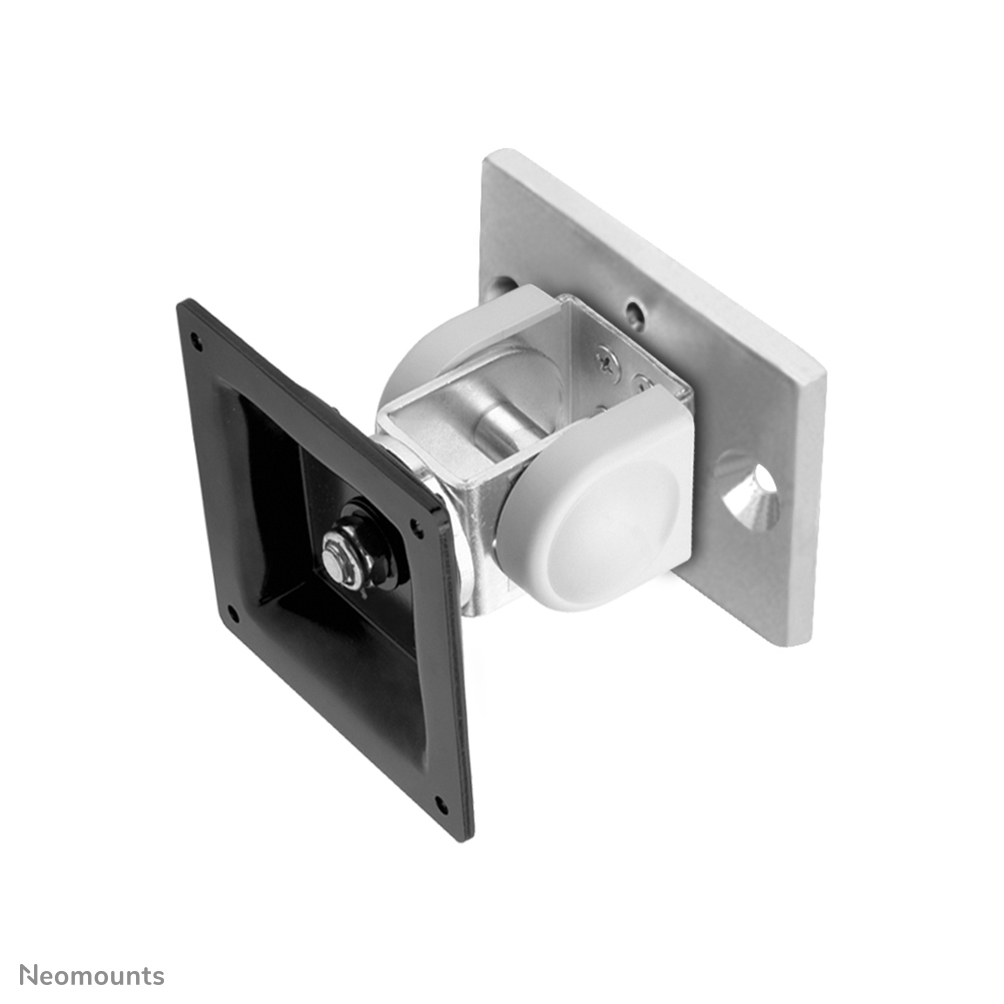

* The FPMA-DTBW100 monitor bracket is 8 cm deep and can both tilt and rotate. Its maximum capacity is 8 kg.

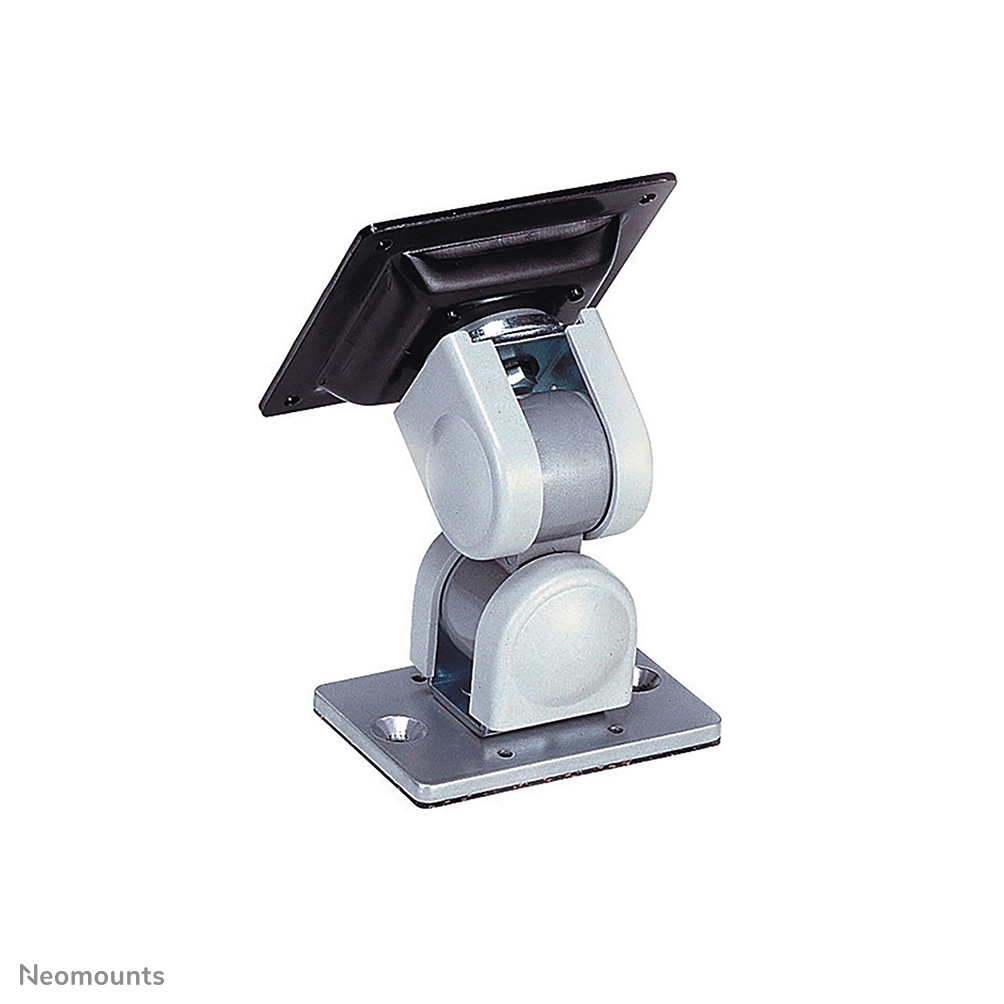

* The FPMA-DTBW200 monitor bracket is 12 cm deep and features a tilt, rotate and swivel option. The maximum capacity of this bracket is 10 kg.

Both monitor brackets are suitable for screens with a VESA hole pattern of 75x75 and 100x100 mm. FPMA-DTB200 toolbar desk mount features cable clips so cables can be easily and neatly routed.

Product documentation

Download the available product documentation here. In case of any further questions please do not hesitate to contact our service & support desk by email: info@neomounts.com.
