Neomounts NS-WMB200PBLACK Menuboard wall mount 40-52" - tiltable - portrait

Neomounts NS-WMB200PBLACK Menuboard wall mount 40-52" - tiltable - portrait video
Neomounts NS-WMB200PBLACK Menuboard wall mount 2 screens - 40-52" - max 50 kg/screen - VESA 200x200-400x600 - d 7,8 cm - tiltable - portrait - black
Tell a friend
The Neomounts menu board wall mount (vertical mounting), model NS-WMB200PBLACK is a tiltable wall mount for two flat screens up to 52" (132 cm). This mount is a great choice when you want the ultimate viewing flexibility with your flat screen. Neomounts tilt (0°/-5°/-10°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. Depth of this mount is 7,8 centimetres. Neomounts NS-WMB200PBLACK is suitable for 2 screens up to 52" (132 cm). The weight capacity of this product is 50 kg each screen. The wall mount is suitable for screens that meet VESA hole pattern 200x200 to 400x600 mm (vertical mounting). All installation material is included with the product.
Read more

SpecificationsProduct informationProduct documentationAccessories

Specifications

General
Min. screen size*:

40 inch
Max. screen size*:

52 inch
Min. weight:

0 kg (per screen)
Max. weight:

50 kg (per screen)
Screens:

2
VESA pattern:

200x200, 200x300, 200x400, 300x200, 300x300, 400x200, 400x300, 400x400, 400x500, 400x600, 600x200, 600x300, 600x400 mm
VESA minimum:

200x200 mm
VESA maximum:

400x600 mm
Distance to wall:

7,8 cm

Functionality
Type:

Tilt
Height adjustment:

68 cm
Width adjustment:

110 cm
Tilt (degrees):

10°
Rotate (degrees):

6°
Adjustment type:

Micro adjustment

Information
Article number:

NS-WMB200PBLACK

EAN:

8717371447366

Color:

Black

Main material:

Steel

Warranty:

5 year


*Please note: The inch sizes stated are just an indication, combined with the weight and VESA sizes. The maximum weight and VESA size are absolute restrictions for the products and should not be exceeded.
Min. screen size*40- 52 inch
Min. weight0 - 50 kg
VESA minimum200x200 - 400x600 mm
Height adjustment68 cm
Distance to wall7,8 cm
Tilt (degrees)10°
Rotate (degrees)6°
Warranty5 year

Product information

The Neomounts menu board wall mount (vertical mounting), model NS-WMB200PBLACK is a tiltable wall mount for two flat screens up to 52" (132 cm). This mount is a great choice when you want the ultimate viewing flexibility with your flat screen. Neomounts tilt (0°/-5°/-10°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. Depth of this mount is 7,8 centimetres.

Neomounts NS-WMB200PBLACK is suitable for 2 screens up to 52" (132 cm). The weight capacity of this product is 50 kg each screen. The wall mount is suitable for screens that meet VESA hole pattern 200x200 to 400x600 mm (vertical mounting).

All installation material is included with the product.

Product documentation

Download the available product documentation here. In case of any further questions please do not hesitate to contact our service & support desk by email: info@neomounts.com.

productsheet
Product sheet
manual
Manual

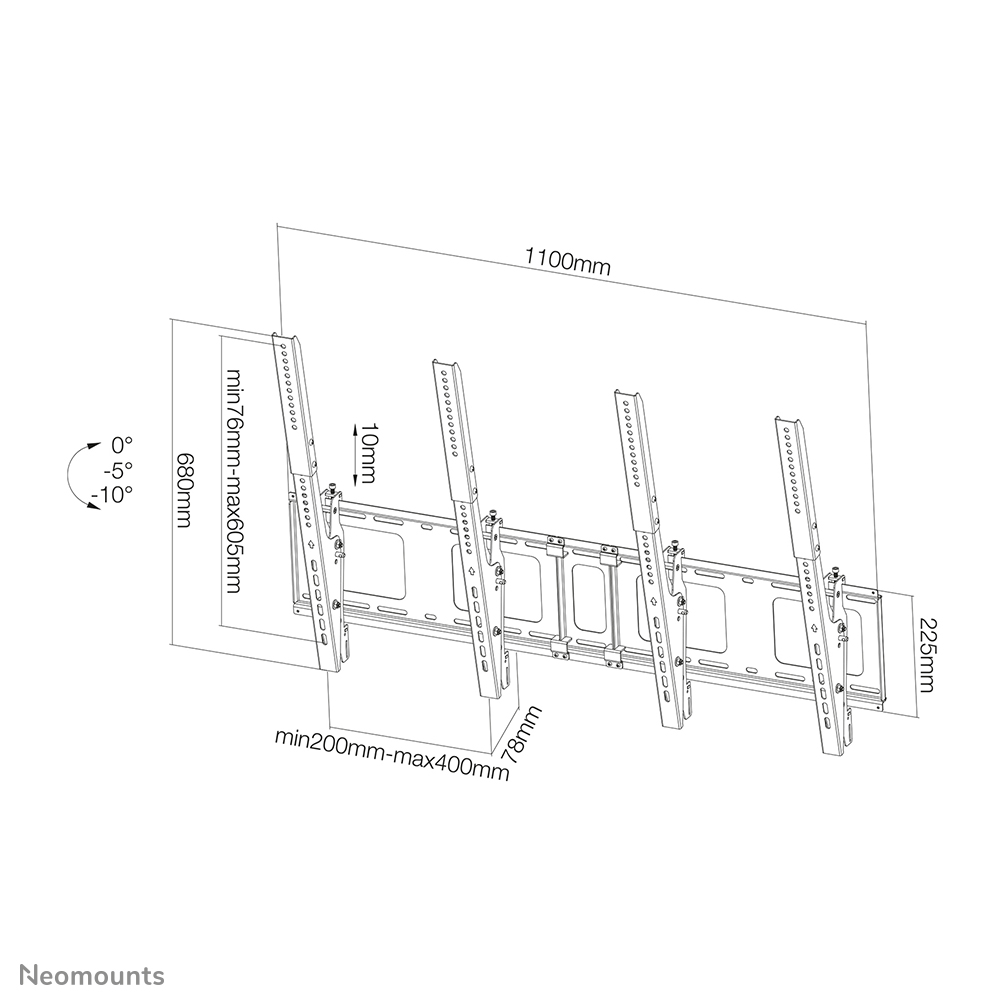

linedrawing
Line drawing
safetysheet
Safety sheet
