DS70S-950WH1 Neomounts desk monitor arm

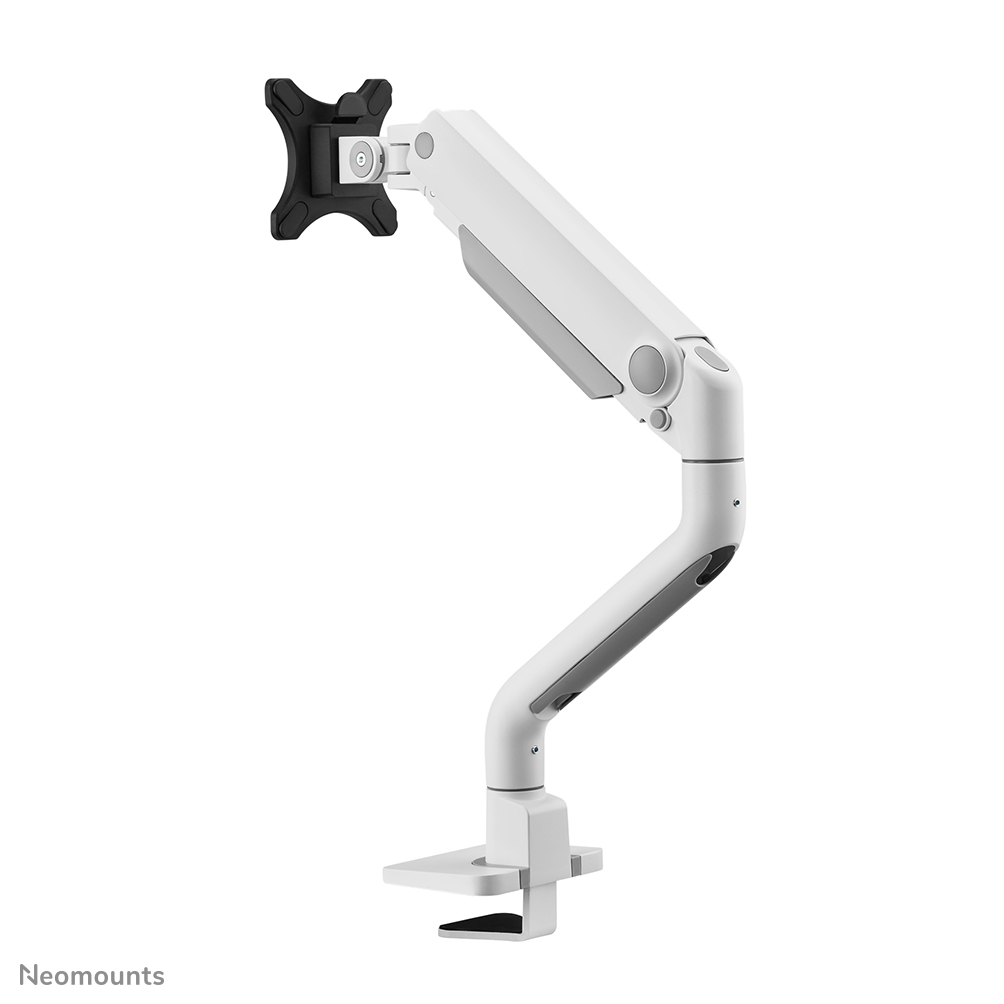

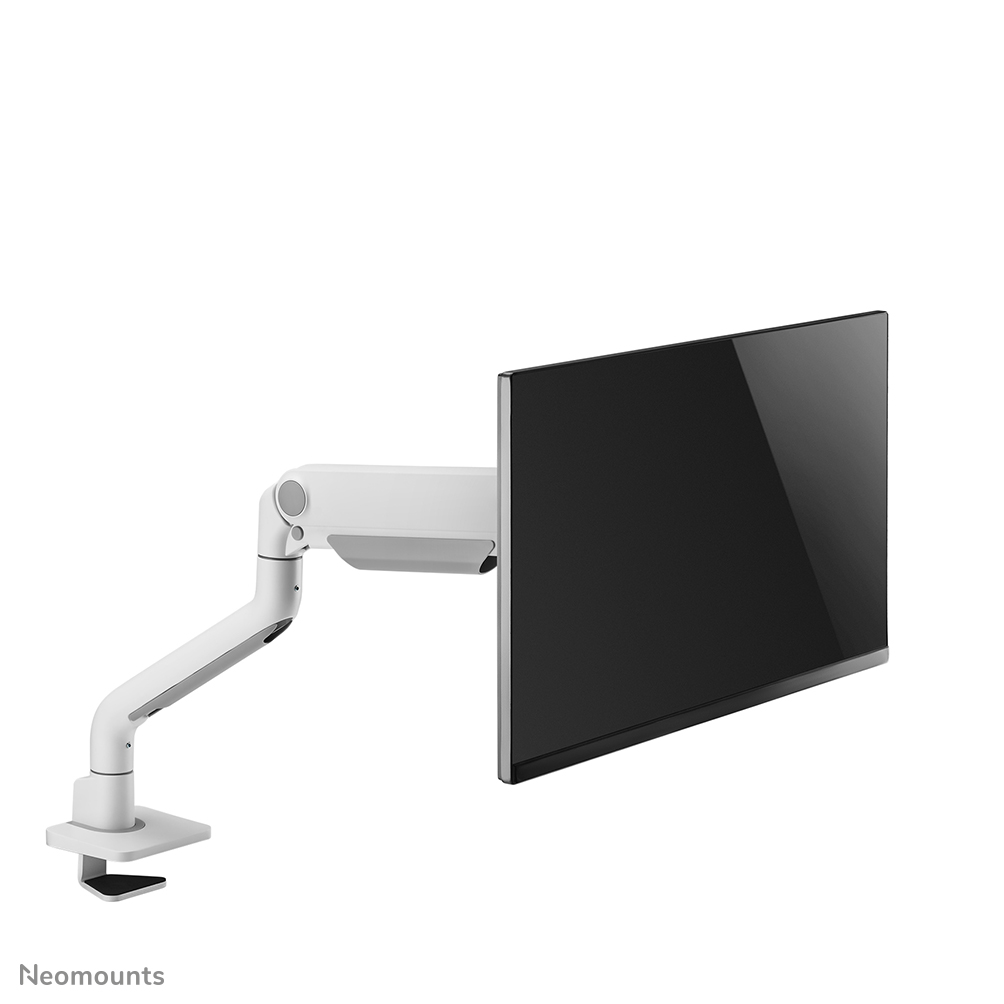

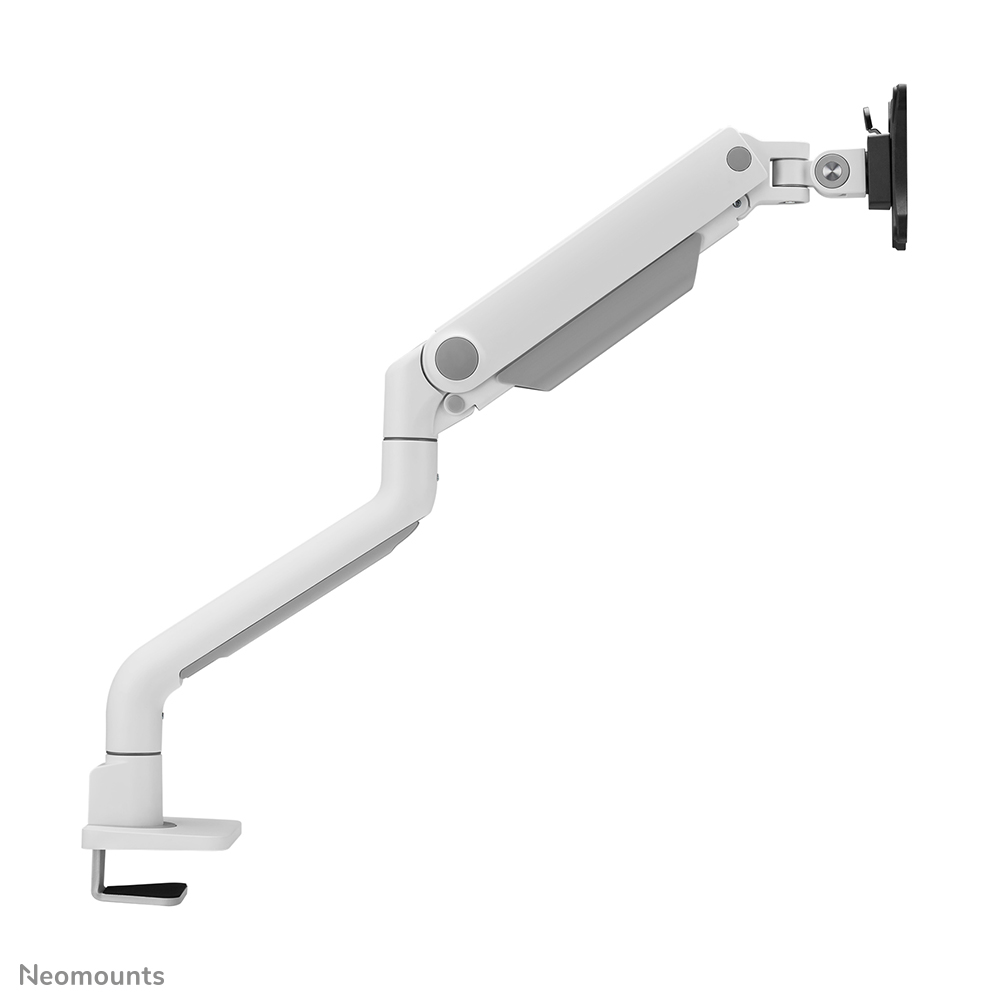

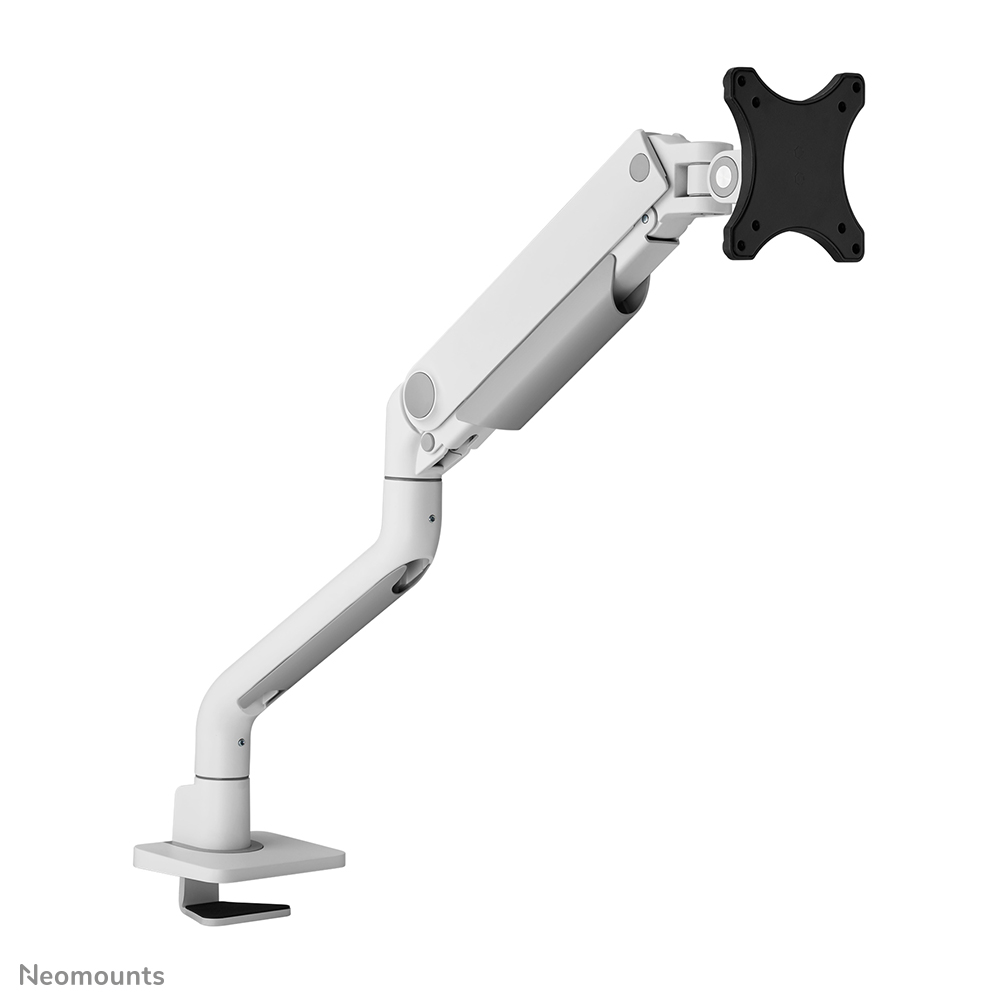

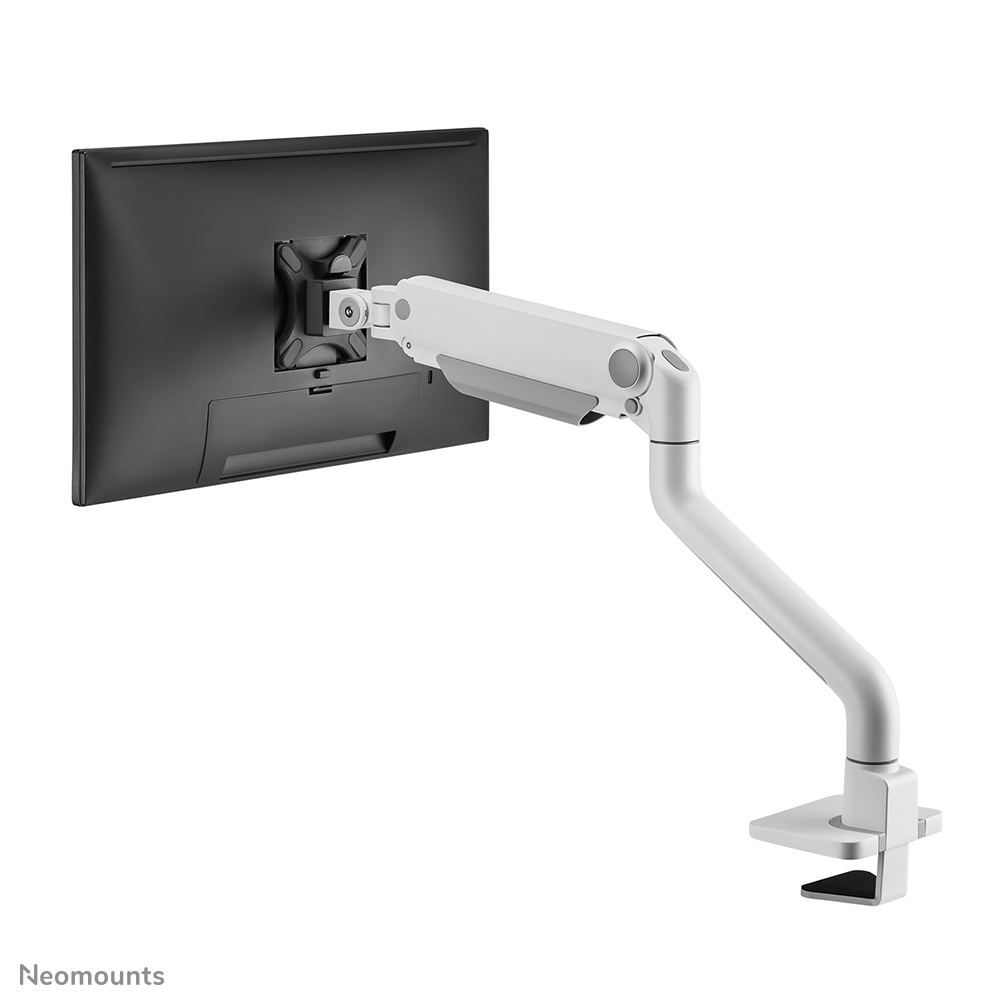

Neomounts DS70S-950WH1 full motion desk monitor arm for 17-49" screens - White
The Neomounts DS70S-950WH1 NEXT One is a full motion desk mount for screens up to 49". The DS70S-950WH1 is a true all-in one solution for small to large displays. The NEXT One features a strengthened head specifically designed to also support curved ultra-wide screens and features a higher maximum weight capacity up to 18 kg (curved 15 kg). The versatile tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (20-52 cm) and depth adjustment (8,8-62,5 cm), to create the perfect working position. The DS70S-950WH1 features the nifty 180° stop mechanism, that prevents the mount from making contact with the wall or separation panel when installed near it. The smart cable management system ensures orderly routing of the cables. The black VESA plate of the NEXT One integrate stylishly with the black back of your screen. The DS70S-950WH1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. For non-standard hole patterns, Neomounts has various optional VESA adapter plates available. The monitor arm is equipped with a Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation. The packaging of the DS70S-950WH1 desk mount 100% plastic free and entirely made from cardboard and paper. The NEXT One products have an extended warranty period of 10-years.
Read more

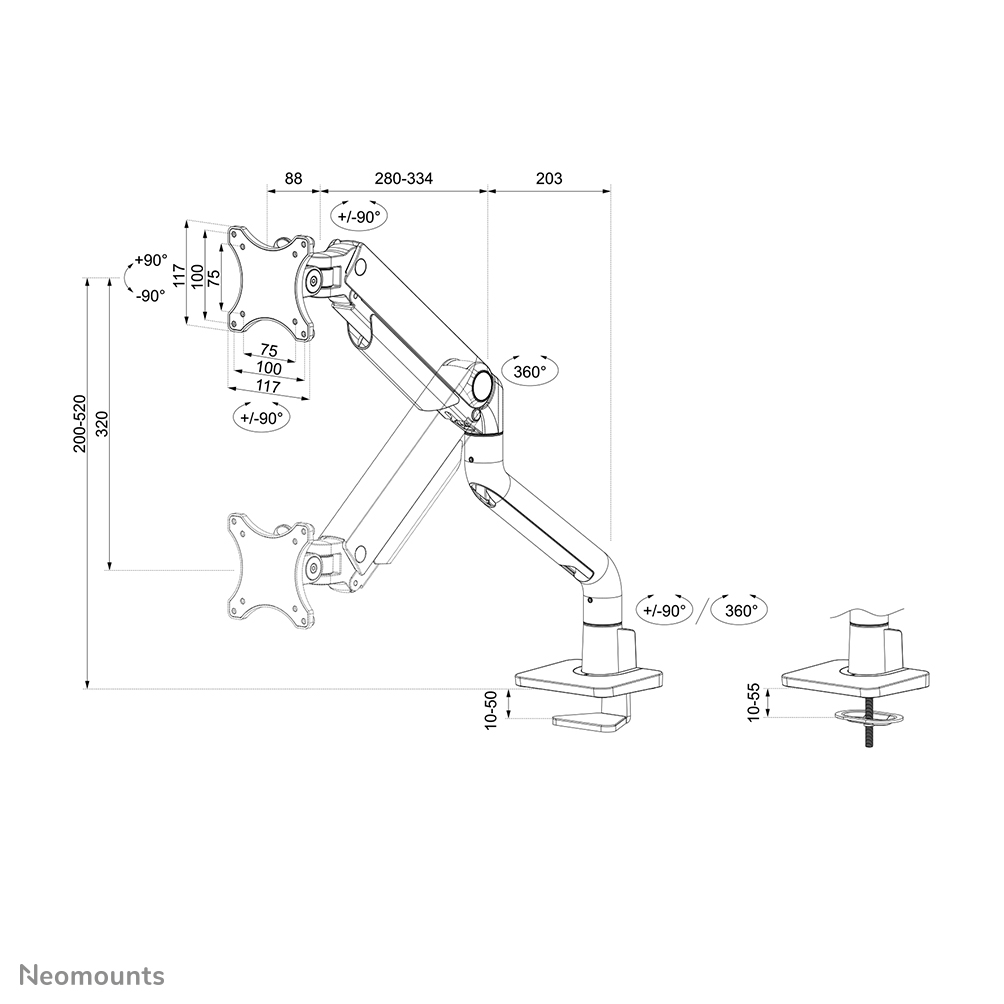

Specifications

General
Min. screen size*
17 inch
Max. screen size*
49 inch
Min. weight
1 kg
Max. weight
18 kg
Max. weight curved/ultra-wide
15 kg
Screens
1
VESA pattern
75x75, 100x100 mm
VESA minimum
75x75 mm
VESA maximum
100x100 mm
Desk mount
Grommet, Clamp
Distance to wall
11,9-65,6 cm

Functionality
Type
Full motion
Height adjustment
20-52 cm
Width adjustment
107,4 cm
Depth adjustment
8,8-62,5 cm
Tilt (degrees)
+90°, -90°
Swivel (degrees)
+90°, -90°
Rotate (degrees)
+180°, -180°
Height
57,9 cm
Width
13,5 cm
Depth
65,6 cm
Adjustment type
Gas spring

Information
Article number
DS70S-950WH1

EAN
8717371441418

Color
White

Main material
Aluminium

Warranty
10 year


*Please note: The inch sizes stated are just an indication, combined with the weight and VESA sizes. The maximum weight and VESA size are absolute restrictions for the products and should not be exceeded.
Min. screen size*17- 49 inch
Min. weight1 - 18 kg
VESA minimum75x75 - 100x100 mm
Height adjustment20-52 cm
Depth adjustment8,8-62,5 cm
Distance to wall11,9-65,6 cm
Tilt (degrees)+90°, -90°
Swivel (degrees)+90°, -90°
Rotate (degrees)+180°, -180°
Warranty10 year


Product information

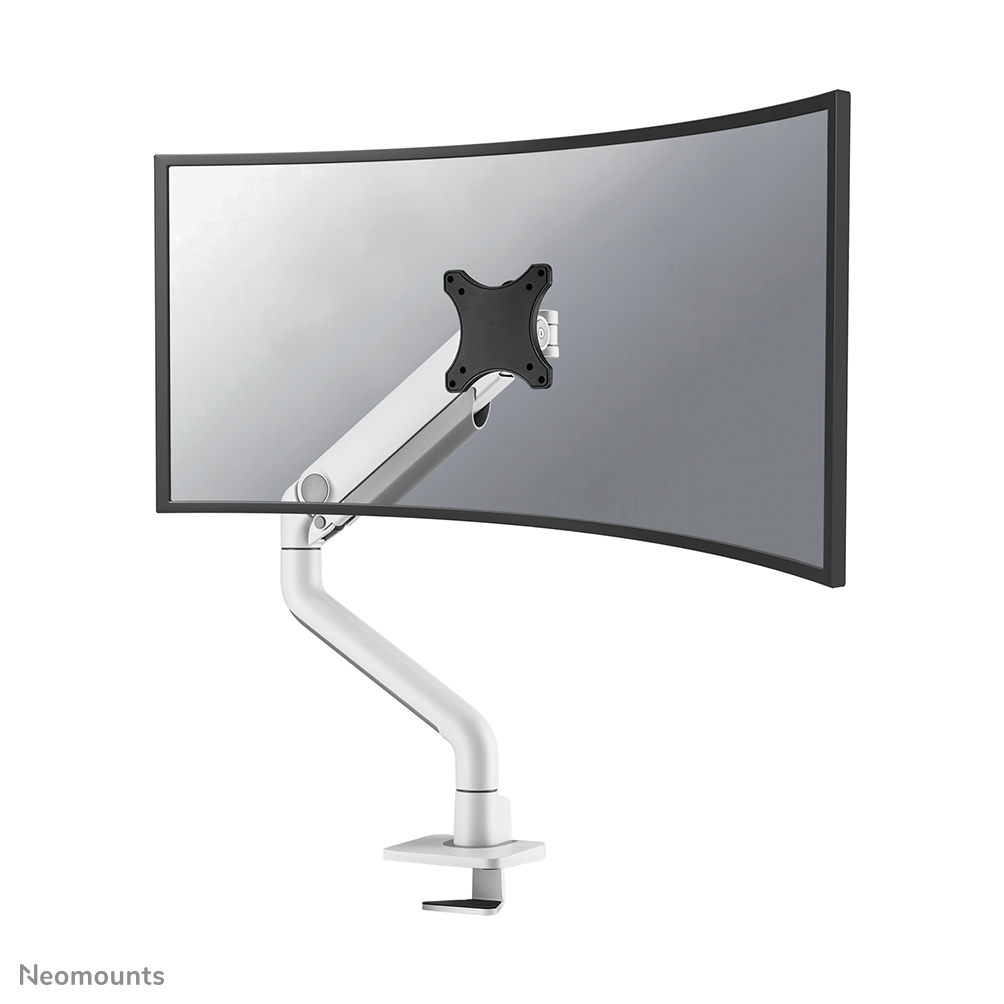

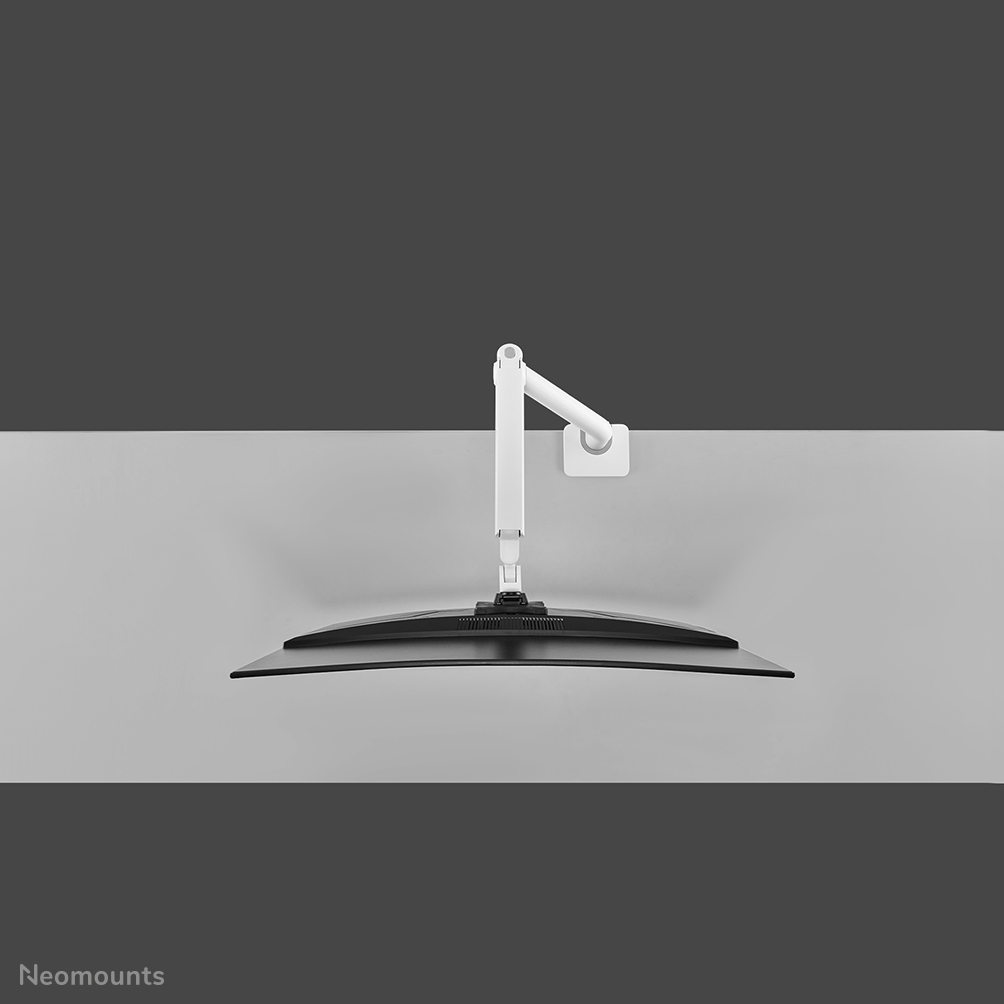

The Neomounts DS70S-950WH1 NEXT One is a full motion desk mount for screens up to 49". The DS70S-950WH1 is a true all-in one solution for small to large displays. The NEXT One features a strengthened head specifically designed to also support curved ultra-wide screens and features a higher maximum weight capacity up to 18 kg (curved 15 kg). The versatile tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (20-52 cm) and depth adjustment (8,8-62,5 cm), to create the perfect working position.

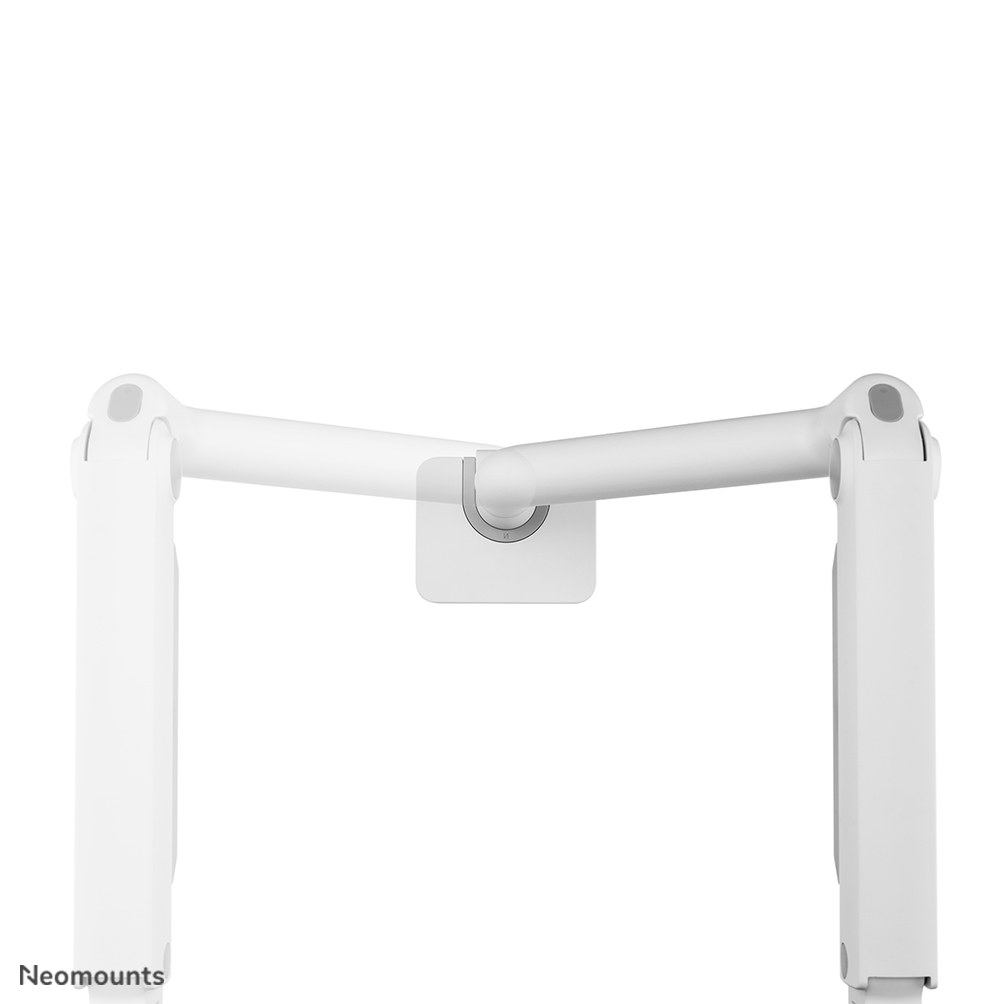

The DS70S-950WH1 features the nifty 180° stop mechanism, that prevents the mount from making contact with the wall or separation panel when installed near it. The smart cable management system ensures orderly routing of the cables.

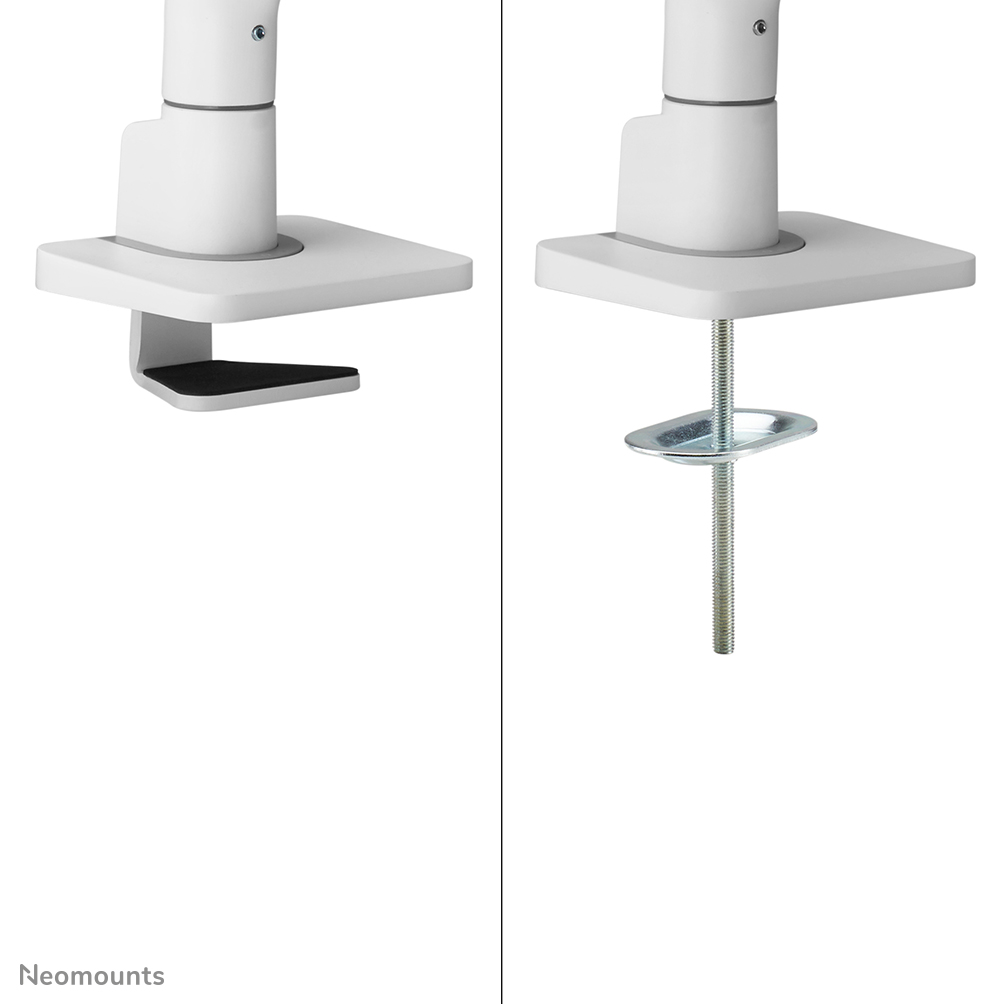

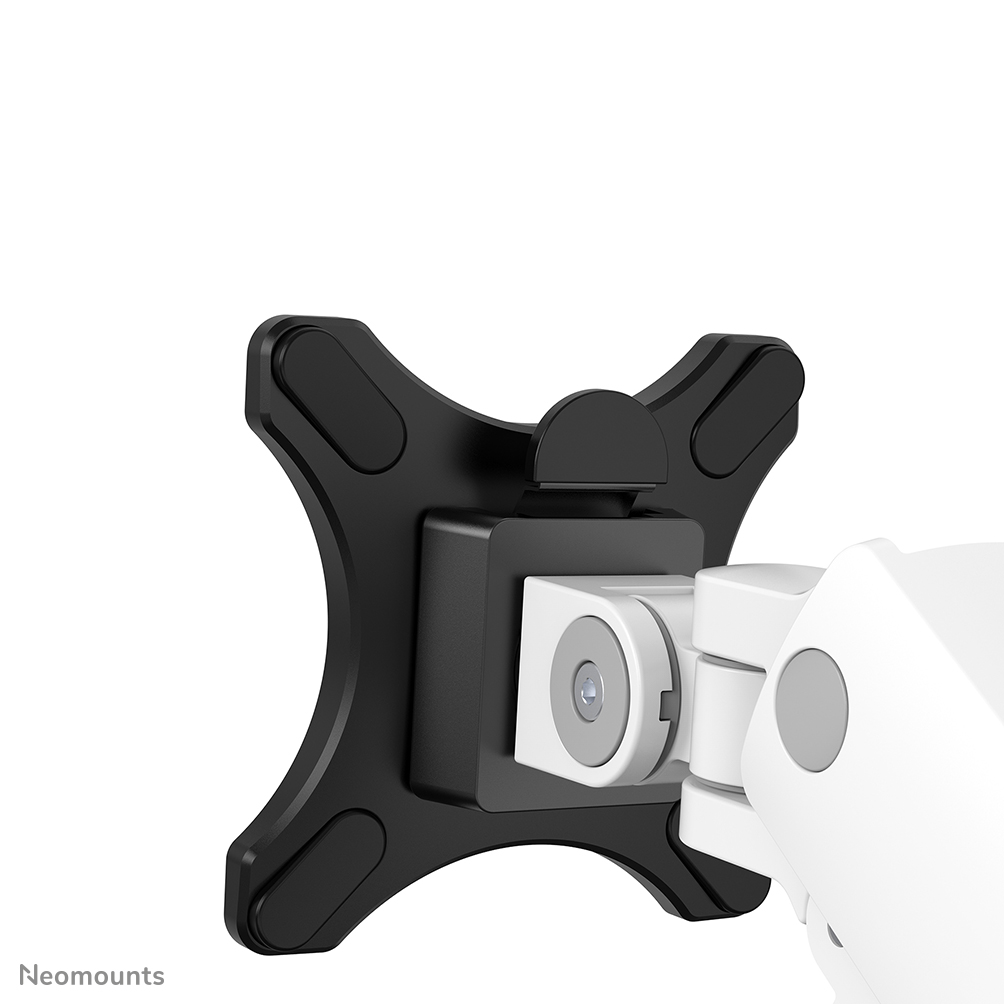

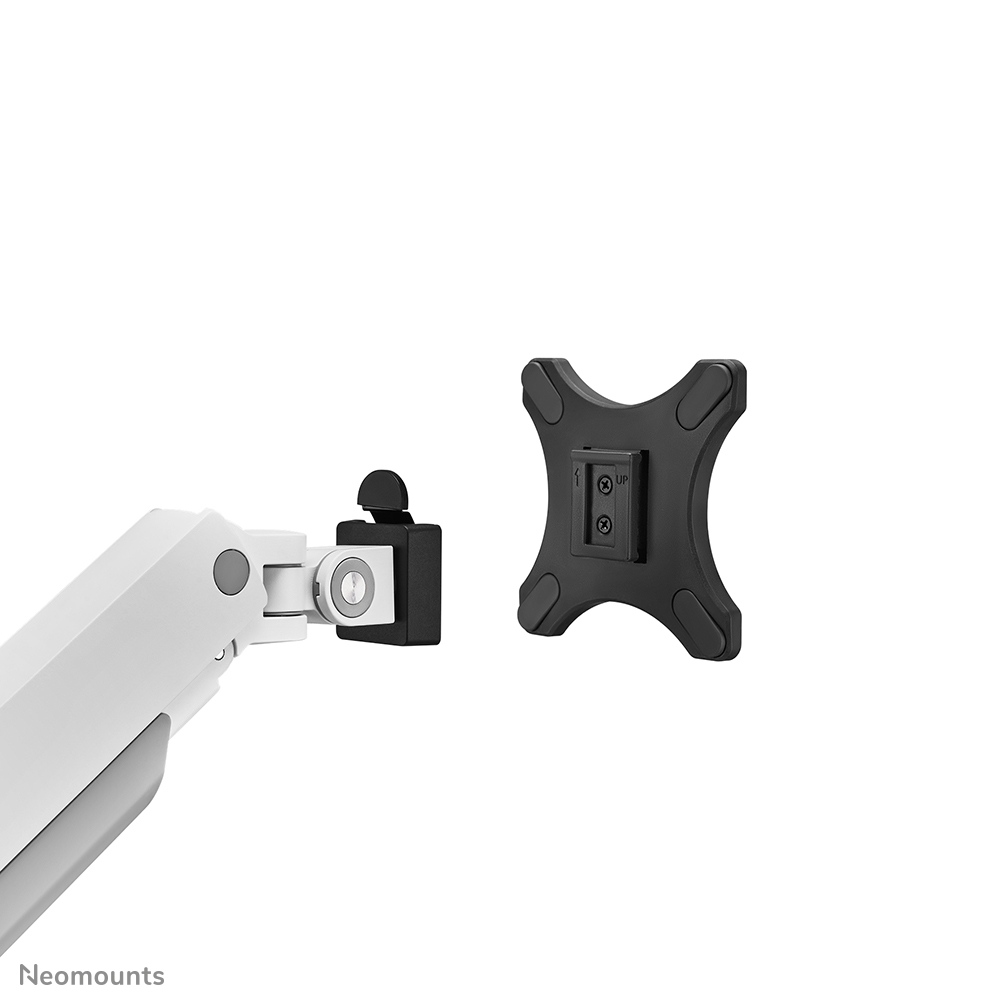

The black VESA plate of the NEXT One integrate stylishly with the black back of your screen. The DS70S-950WH1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. For non-standard hole patterns, Neomounts has various optional VESA adapter plates available. The monitor arm is equipped with a Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.

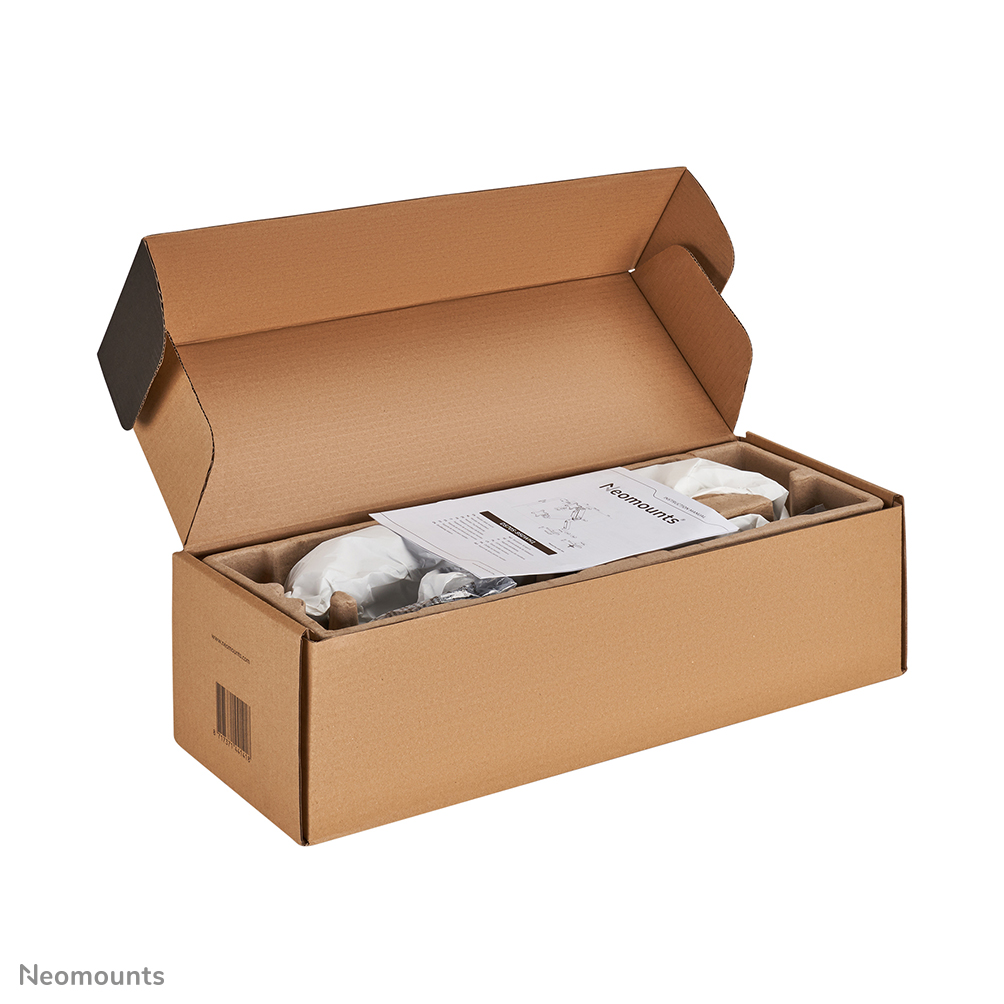

The packaging of the DS70S-950WH1 desk mount 100% plastic free and entirely made from cardboard and paper. The NEXT One products have an extended warranty period of 10-years.

Product documentation

Download the available product documentation here. In case of any further questions please do not hesitate to contact our service & support desk by email: info@neomounts.com.
