Neomounts DS75-450WH2 Monitor arm 17-32" - gas spring - Topfix - 180°-stop

Neomounts NEXT Core DS75-450WH2 Dual crossbar monitor arm - 17-32" - 1-8 kg/screen - gas spring - 180°-stop - Topfix - Easy Install-model - 100% plastic-free packaging - white

Colours:

Variants:

Compare

Alternative product: DS75-450BL2

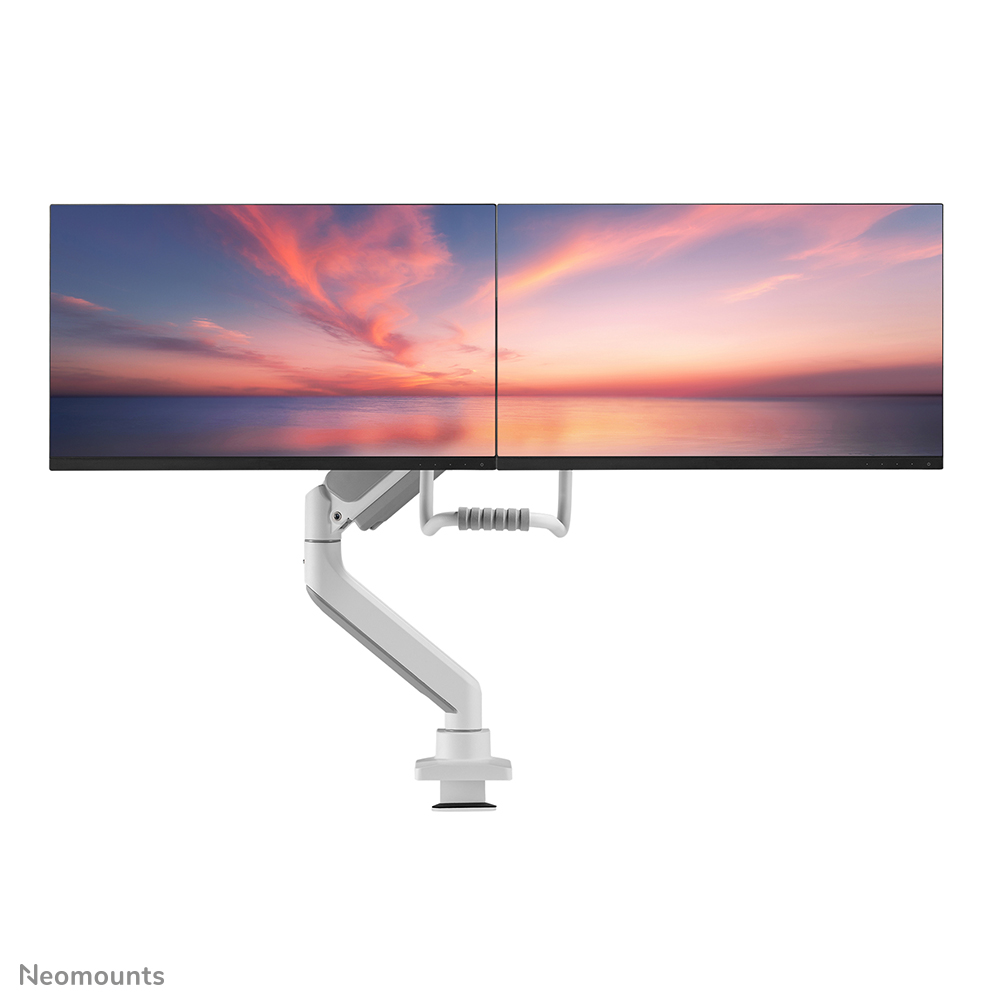

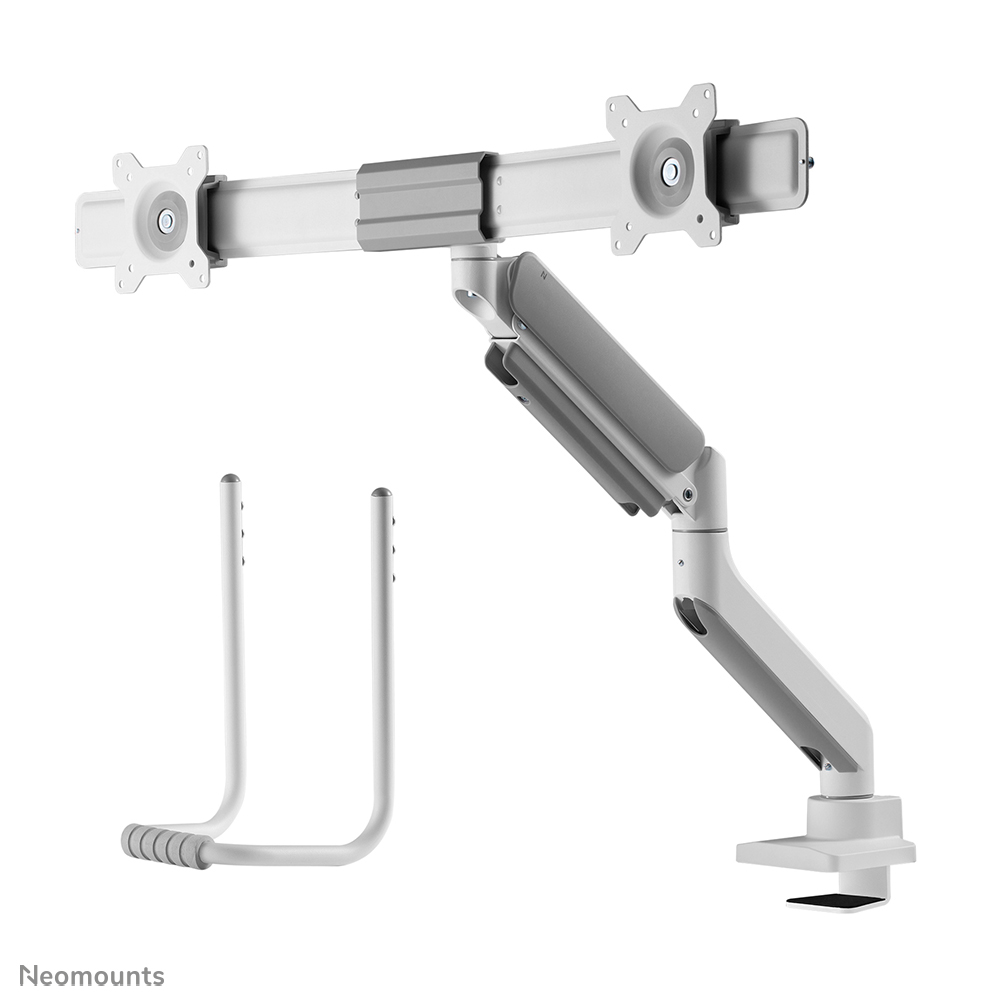

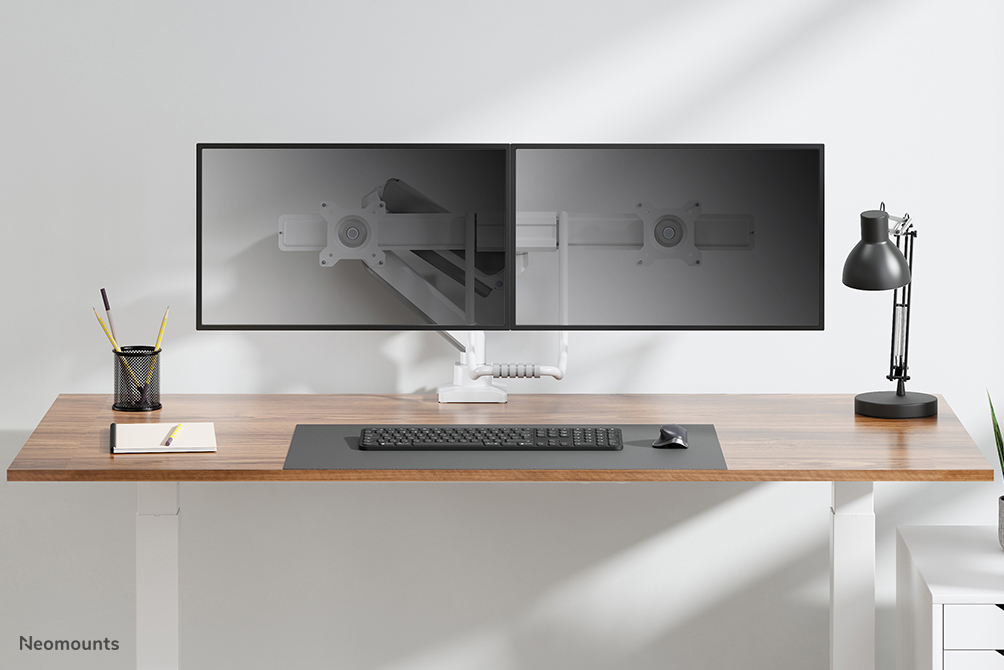

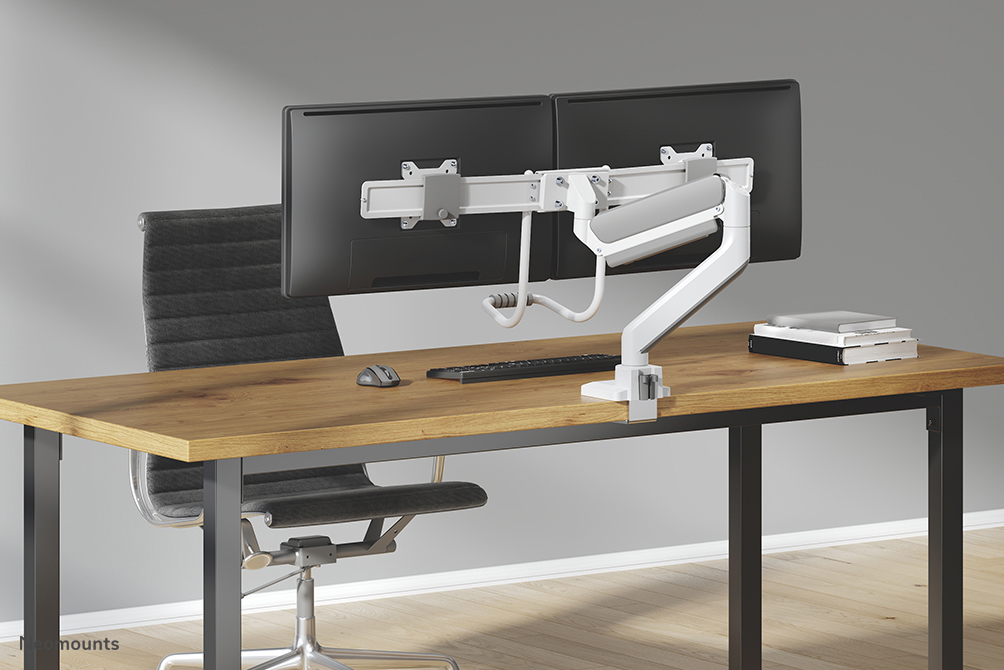

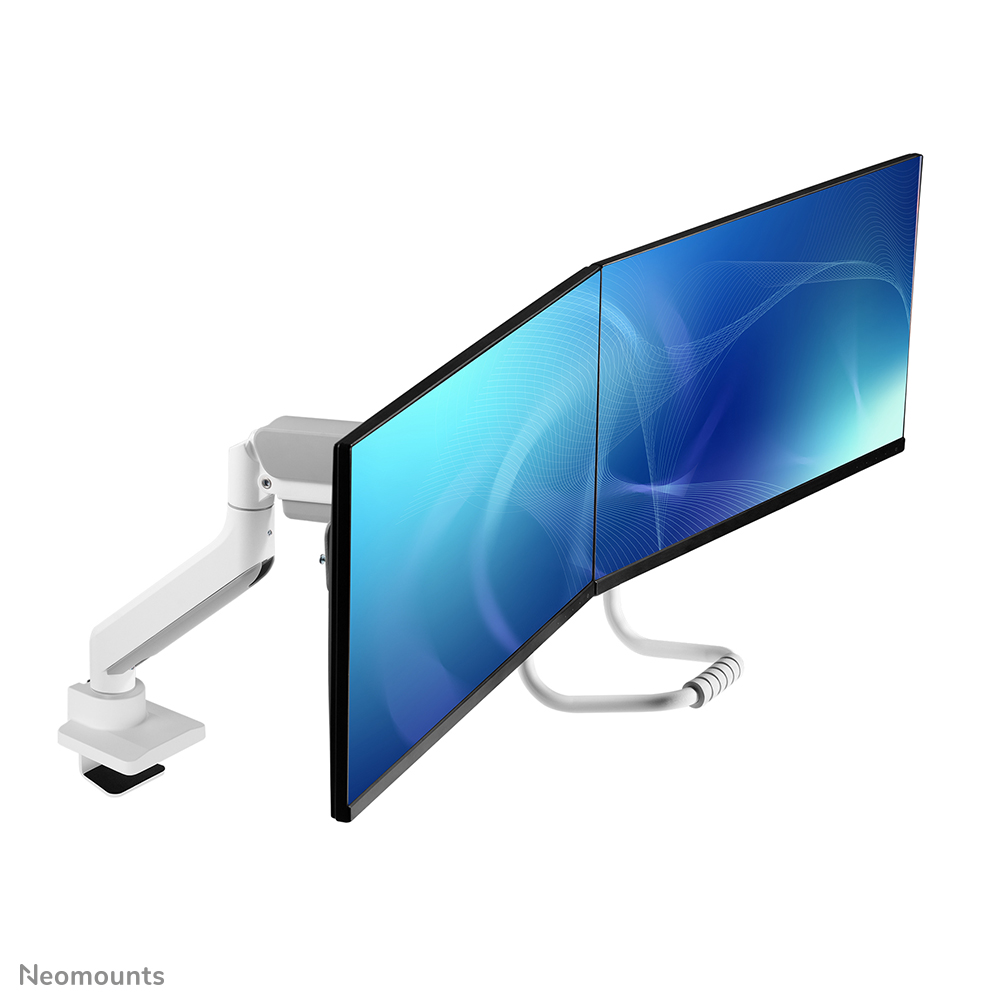

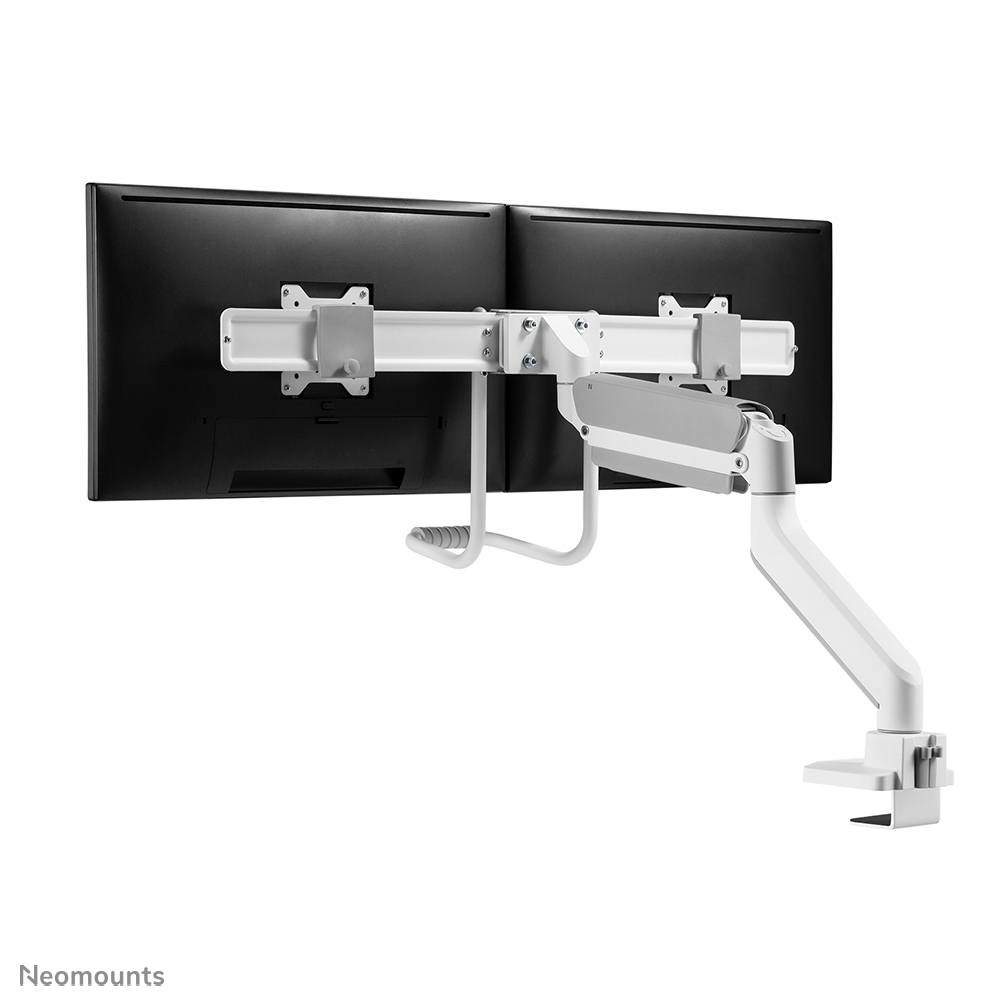

The Neomounts DS75-450WH2 NEXT Core is a full motion desk mount for two flat screens up to 32" with a maximum weight capacity of 8 kg per screen. The versatile tilt (20°), rotate (360°) and swivel (20°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screens. Additionally, the mount has gas spring height adjustment (27,7-56 cm) and depth adjustment (0-50,5 cm), to create the perfect working position. The DS75-450WH2 NEXT Core features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables. The DS75-450WH2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The desk mount is equipped with an Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation. The inner packaging of the NEXT Core is plastic free and made from cardboard and paper. For wall installation, the AWL75-450WH wall adapter is optionally available.

Specifications

General

Min. screen size*:

17 inch

Max. screen size*:

32 inch

Min. weight:

1 kg (per screen)

Max. weight:

8 kg (per screen)

Screens:

2

VESA pattern:

75x75, 100x100 mm

VESA minimum:

75x75 mm

VESA maximum:

100x100 mm

Desk mount:

Grommet, Clamp

Functionality

Type:

Full motion

Height adjustment:

28 cm

Width adjustment:

54 cm

Depth adjustment:

68 cm

Tilt (degrees):

+10°, -10°

Swivel (degrees):

+90°, -90°

Rotate (degrees):

+180°, -180°

Height:

64,6 cm

Width:

85,3 cm

Depth:

11,5 cm

Adjustment type:

Gas spring

Information

Article number:

DS75-450WH2

EAN:

8717371449490

Series:

NEXT Core

Color:

White

Main material:

Steel

Warranty:

5 year

*Please note: The inch sizes stated are just an indication, combined with the weight and VESA sizes. The maximum weight and VESA size are absolute restrictions for the products and should not be exceeded.

17- 32 inch

1 - 8 kg

75x75 - 100x100 mm

28 cm

68 cm

+10°, -10°

+90°, -90°

+180°, -180°

5 year

Product information

The Neomounts DS75-450WH2 NEXT Core is a full motion desk mount for two flat screens up to 32" with a maximum weight capacity of 8 kg per screen. The versatile tilt (20°), rotate (360°) and swivel (20°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screens. Additionally, the mount has gas spring height adjustment (27,7-56 cm) and depth adjustment (0-50,5 cm), to create the perfect working position.

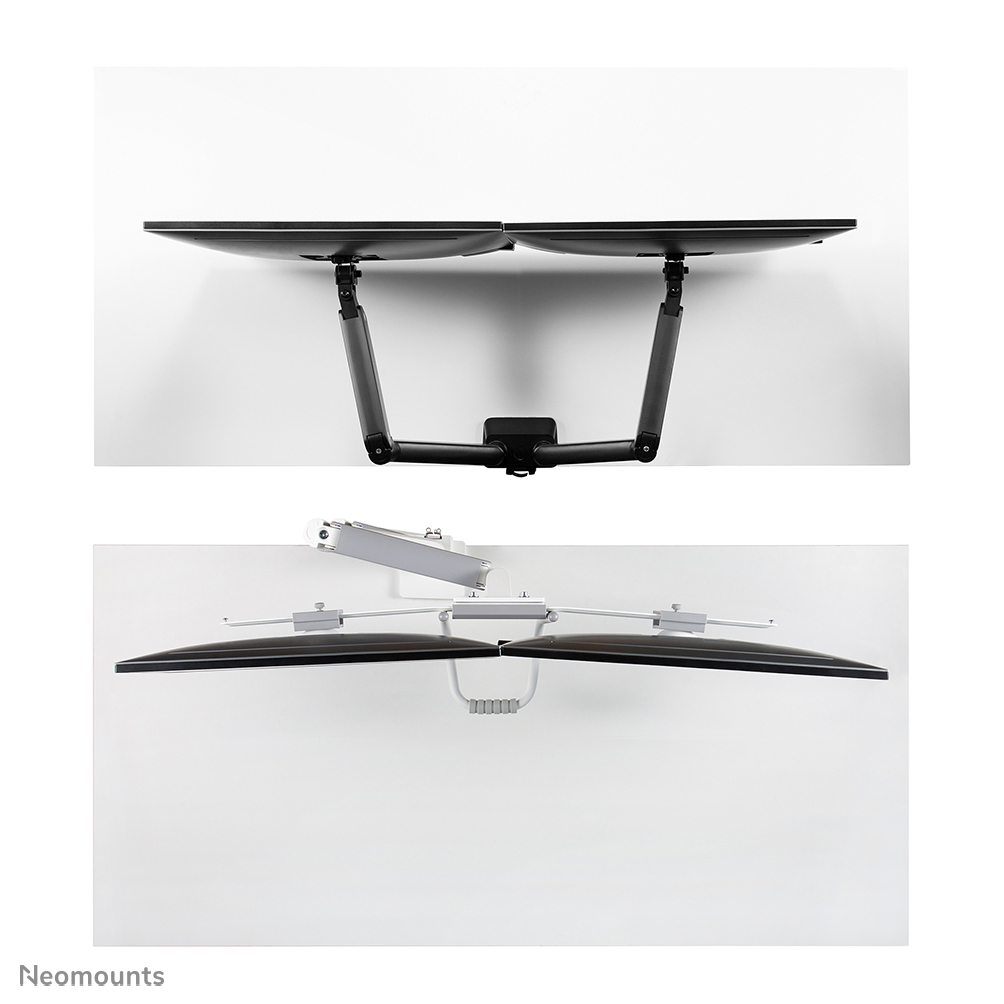

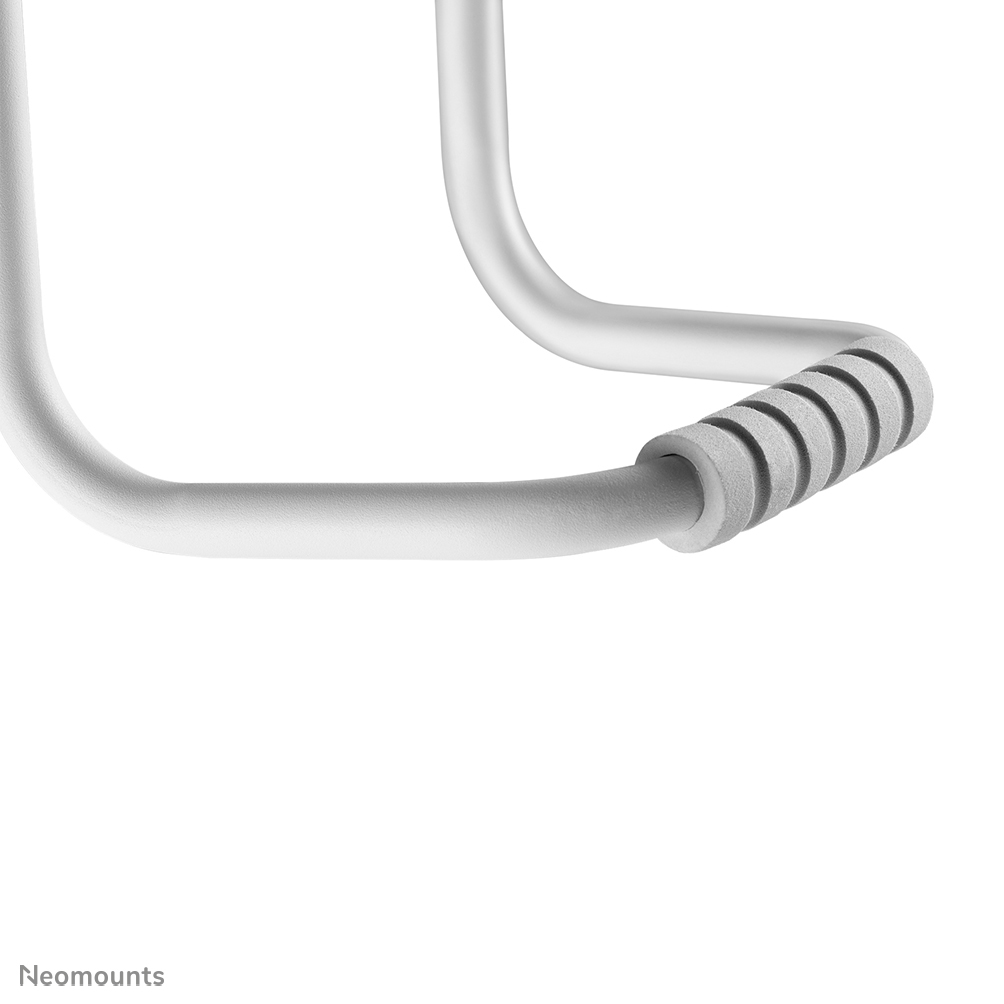

The DS75-450WH2 NEXT Core features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.

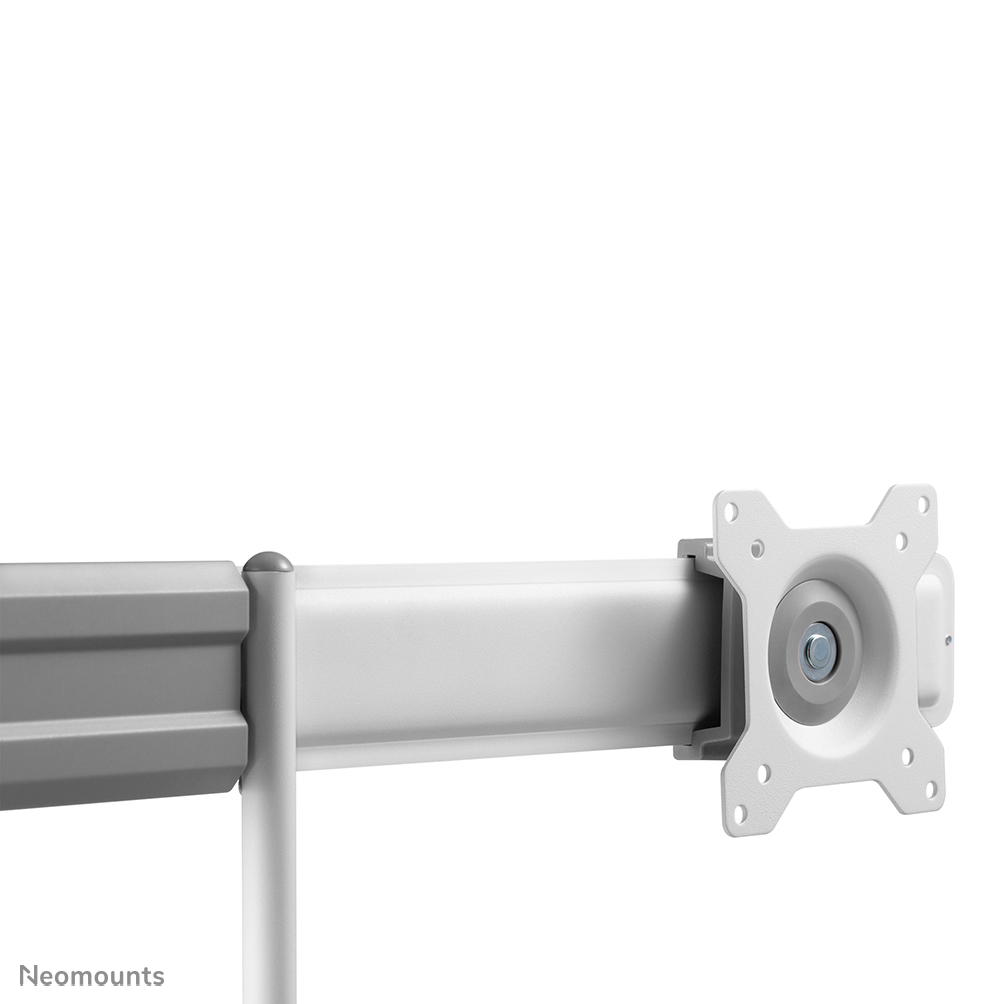

The DS75-450WH2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The desk mount is equipped with an Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.

The inner packaging of the NEXT Core is plastic free and made from cardboard and paper.

For wall installation, the AWL75-450WH wall adapter is optionally available.

Product documentation

Download the available product documentation here. In case of any further questions please do not hesitate to contact our service & support desk by email: info@neomounts.com.
