Neomounts desk monitor arm for curved screens video

NM-D775SILVERPLUS Neomounts desk monitor arm for curved screens

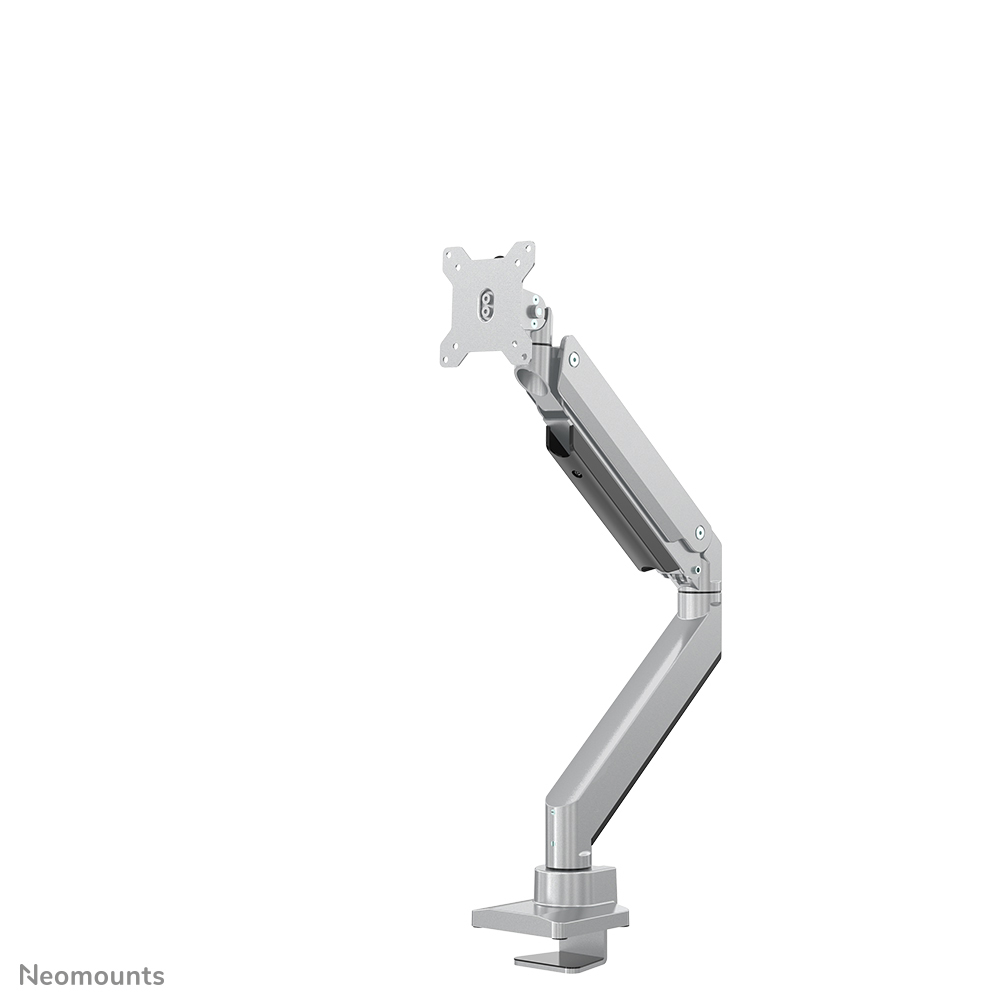

Neomounts NM-D775SILVERPLUS Full Motion desk monitor arm (clamp & grommet) for 10-49" Curved Monitor Screens, Height Adjustable (gas spring) - Silver

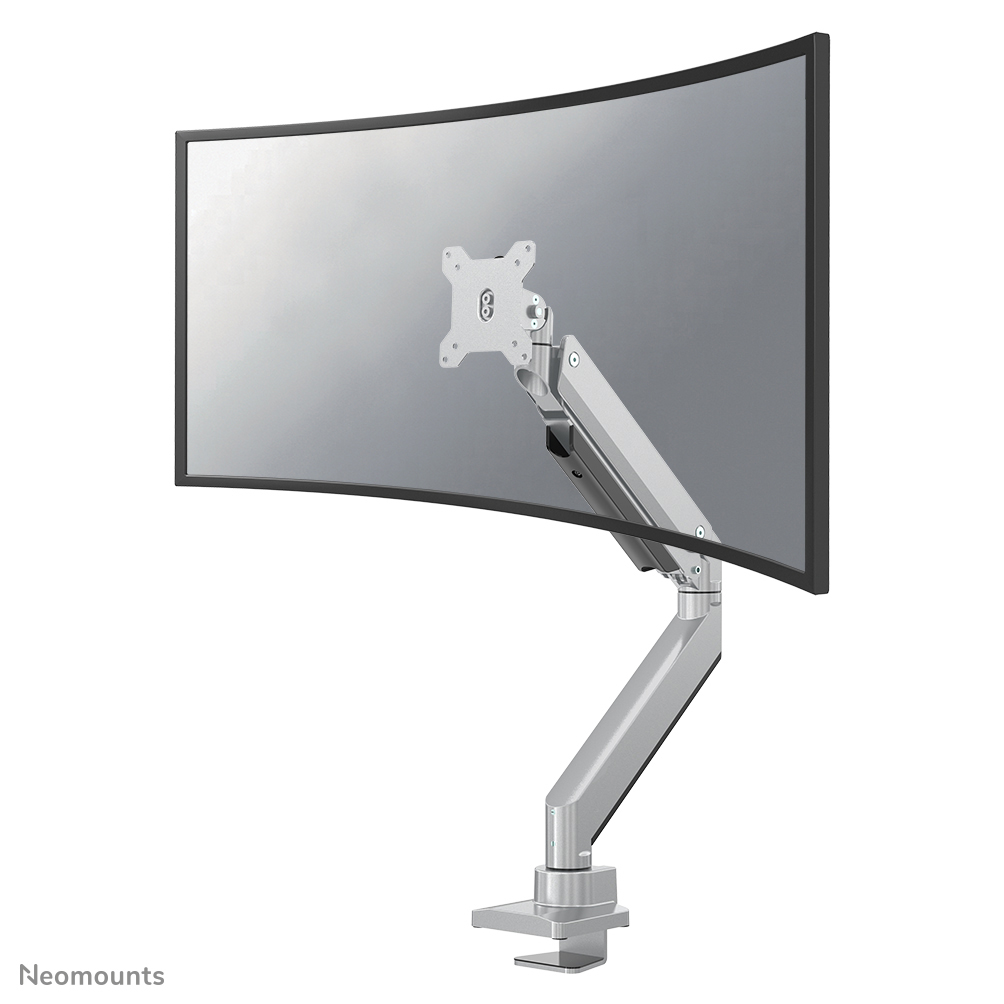

The Neomounts NM-D775SILVERPLUS is a tilt-, swivel and rotatable desk mount for curved screens up to 49". This mount is a great choice for space saving placement on desks using a top-fix desk clamp or grommet mount. The NM-D775SILVERPLUS mounts are specifically designed to support curved screens. They feature a strengthened head for curved screens and are designed to support a higher total capacity up to 49" and a maximum weight of 18 kg. Neomounts unique tilt (180°), rotate (360°) and swivel (180°/ 360°) technology allows the NM-PLUS mounts to change to any viewing angle for optimal use of the capabilities of the ultra-wide screen. The mount is equipped with a 180° stop mechanism. The mounts are easily adjustable in height to 60 centimetres, using a gas spring. Additionally, the mounts are also adjustable in depth, from 0 to 63 centimetres. A unique cable management conceals and routes cables from mount to the ultra-wide screen. The NM-D775SILVERPLUS desk mounts are ideal for use in offices, on counters and in reception areas. All installation material is included with the product.
Read more

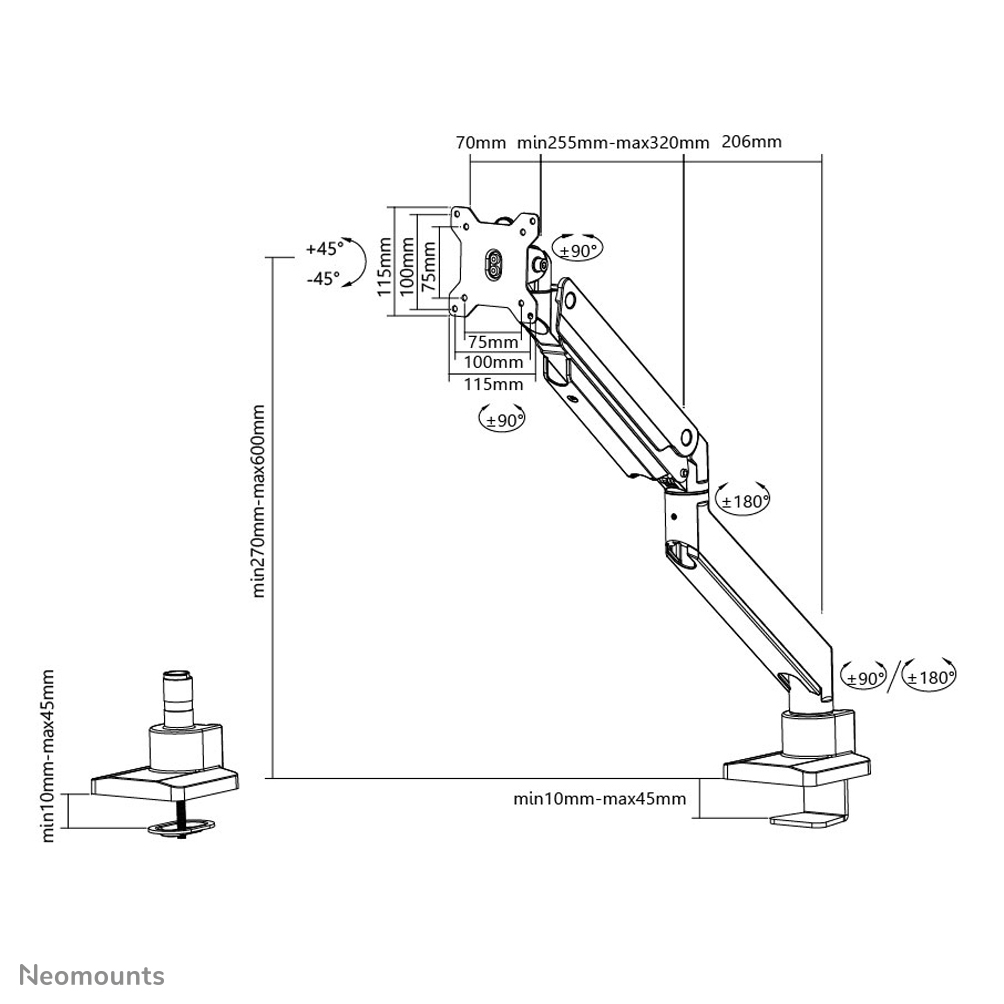

Specifications

General
Min. screen size*
10 inch
Max. screen size*
49 inch
Min. weight
1 kg
Max. weight
18 kg
Max. weight curved/ultra-wide
14 kg
Screens
1
VESA pattern
75x75, 100x100 mm
VESA minimum
75x75 mm
VESA maximum
100x100 mm
Desk mount

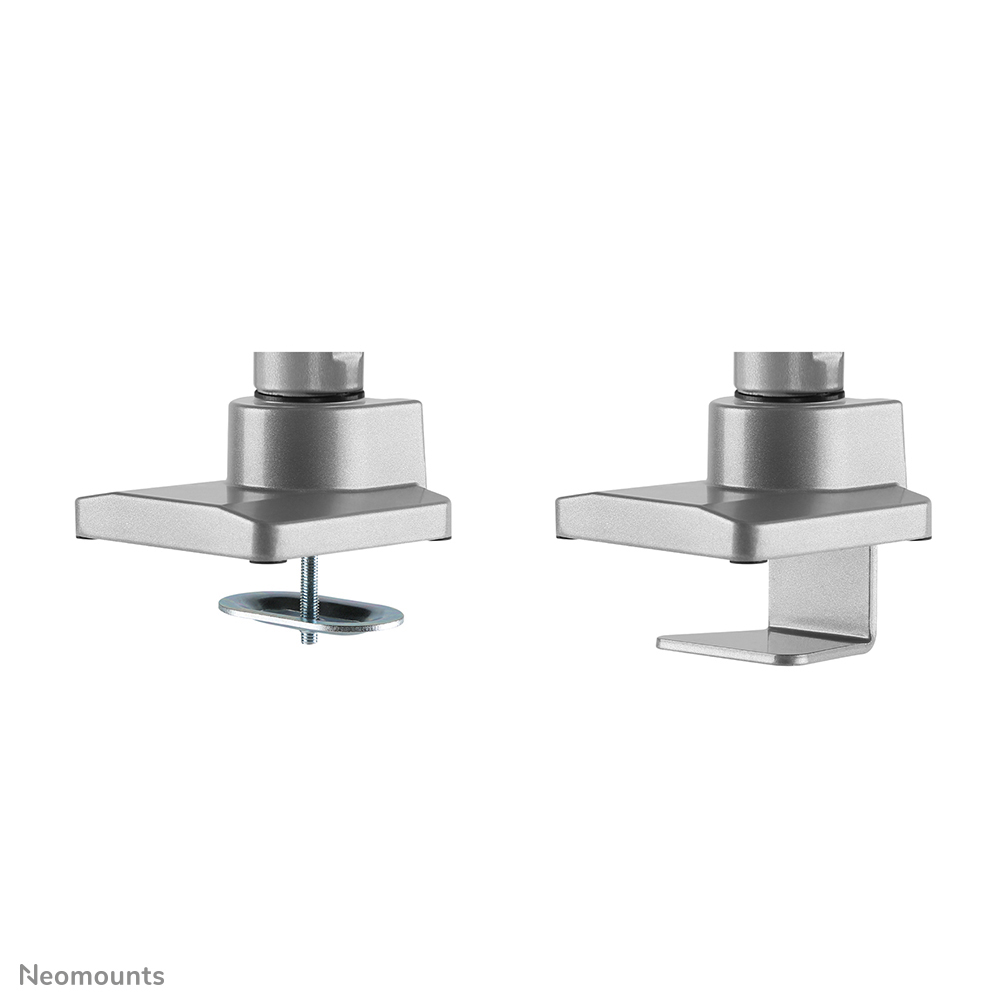

Grommet, Clamp

Functionality
Type
Full motion
Height adjustment
27-60 cm
Depth adjustment
0-63 cm
Tilt (degrees)
+45°, -45°
Swivel (degrees)
360°
Rotate (degrees)
180°
Adjustment type
Gas spring

Information
Article number
NM-D775SILVERPLUS

EAN
8717371447816

Color
Silver

Main material
Steel

Warranty
5 year


*Please note: The inch sizes stated are just an indication, combined with the weight and VESA sizes. The maximum weight and VESA size are absolute restrictions for the products and should not be exceeded.
Min. screen size*10- 49 inch
Min. weight1 - 18 kg
VESA minimum75x75 - 100x100 mm
Height adjustment27-60 cm
Depth adjustment0-63 cm
Tilt (degrees)+45°, -45°
Swivel (degrees)360°
Rotate (degrees)180°
Warranty5 year

Product information

The Neomounts NM-D775SILVERPLUS is a tilt-, swivel and rotatable desk mount for curved screens up to 49". This mount is a great choice for space saving placement on desks using a top-fix desk clamp or grommet mount.

The NM-D775SILVERPLUS mounts are specifically designed to support curved screens. They feature a strengthened head for curved screens and are designed to support a higher total capacity up to 49" and a maximum weight of 18 kg.

Neomounts unique tilt (180°), rotate (360°) and swivel (180°/ 360°) technology allows the NM-PLUS mounts to change to any viewing angle for optimal use of the capabilities of the ultra-wide screen. The mount is equipped with a 180° stop mechanism. The mounts are easily adjustable in height to 60 centimetres, using a gas spring. Additionally, the mounts are also adjustable in depth, from 0 to 63 centimetres.

A unique cable management conceals and routes cables from mount to the ultra-wide screen. The NM-D775SILVERPLUS desk mounts are ideal for use in offices, on counters and in reception areas.

All installation material is included with the product.

Product documentation

Download the available product documentation here. In case of any further questions please do not hesitate to contact our service & support desk by email: info@neomounts.com.
