DS70-450BL1 Neomounts by Newstar monitor arm desk mount

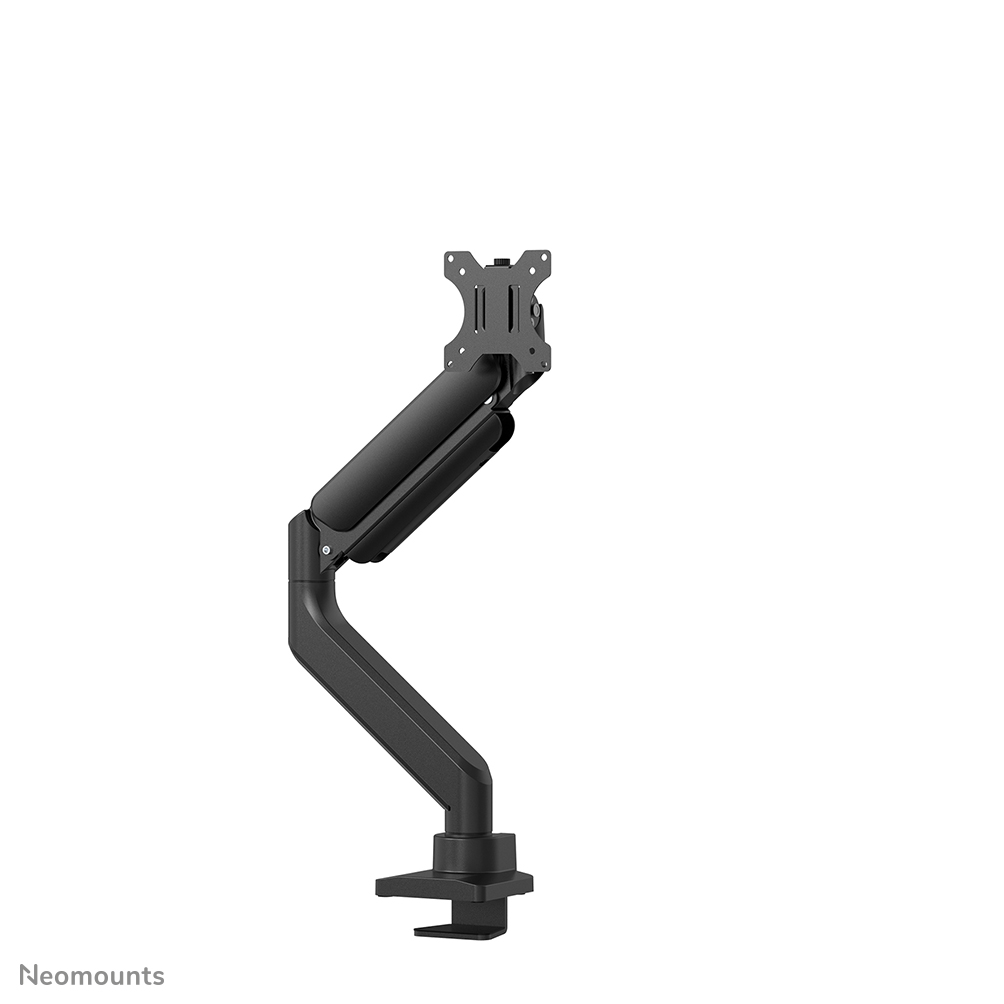

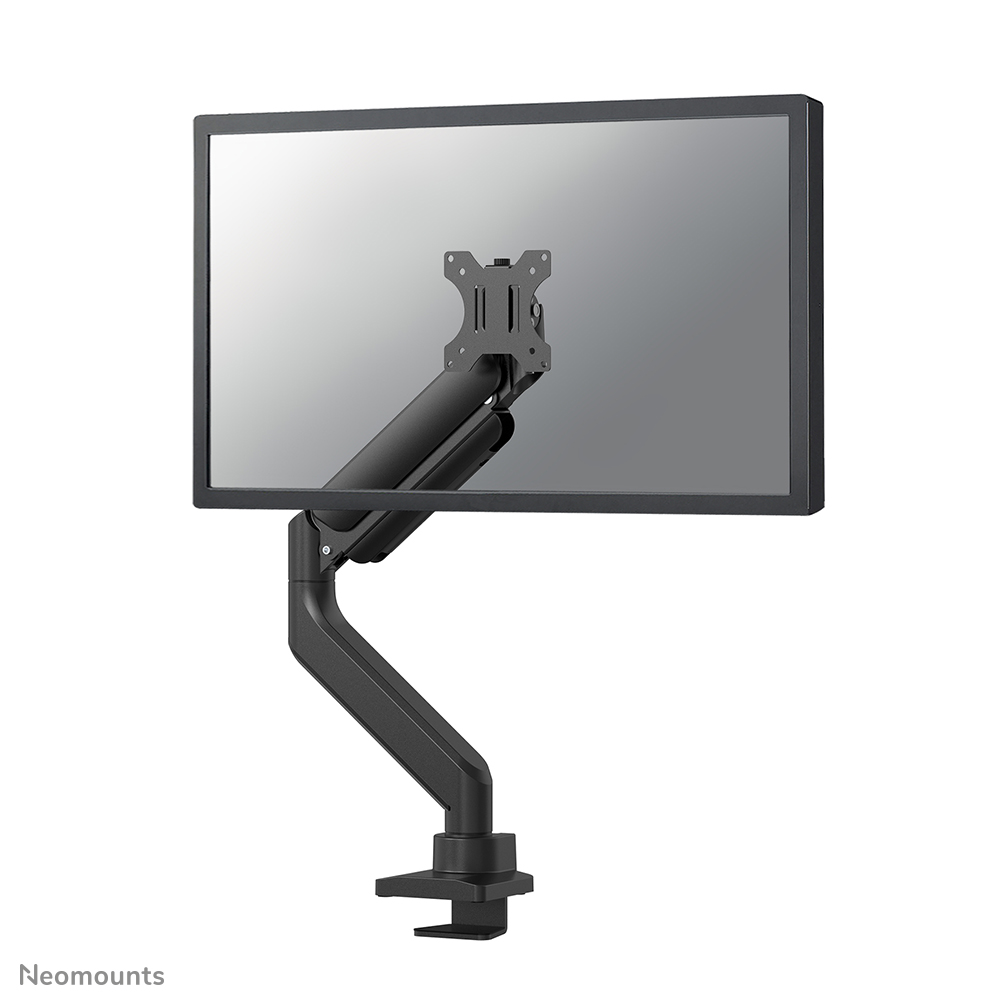

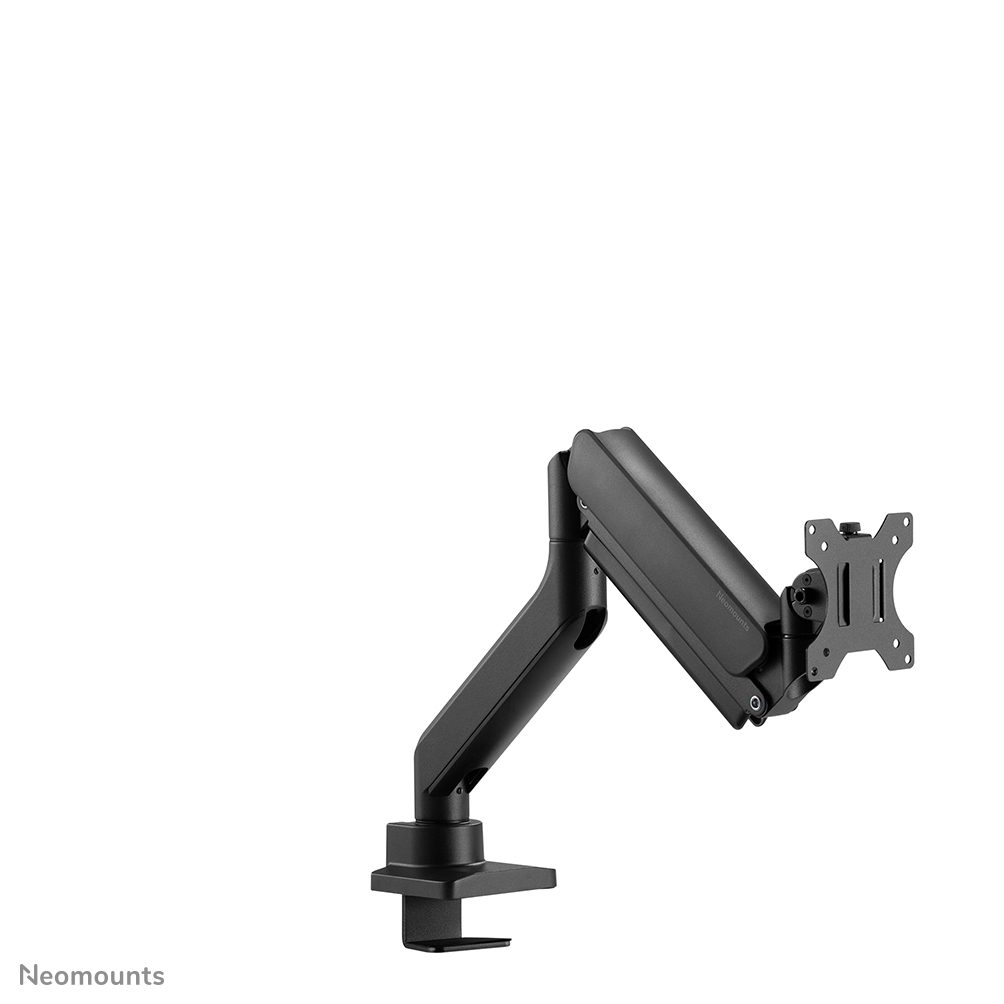

Neomounts by Newstar DS70-450BL1 full motion Monitor Arm Desk Mount for 17-42" screens - Black

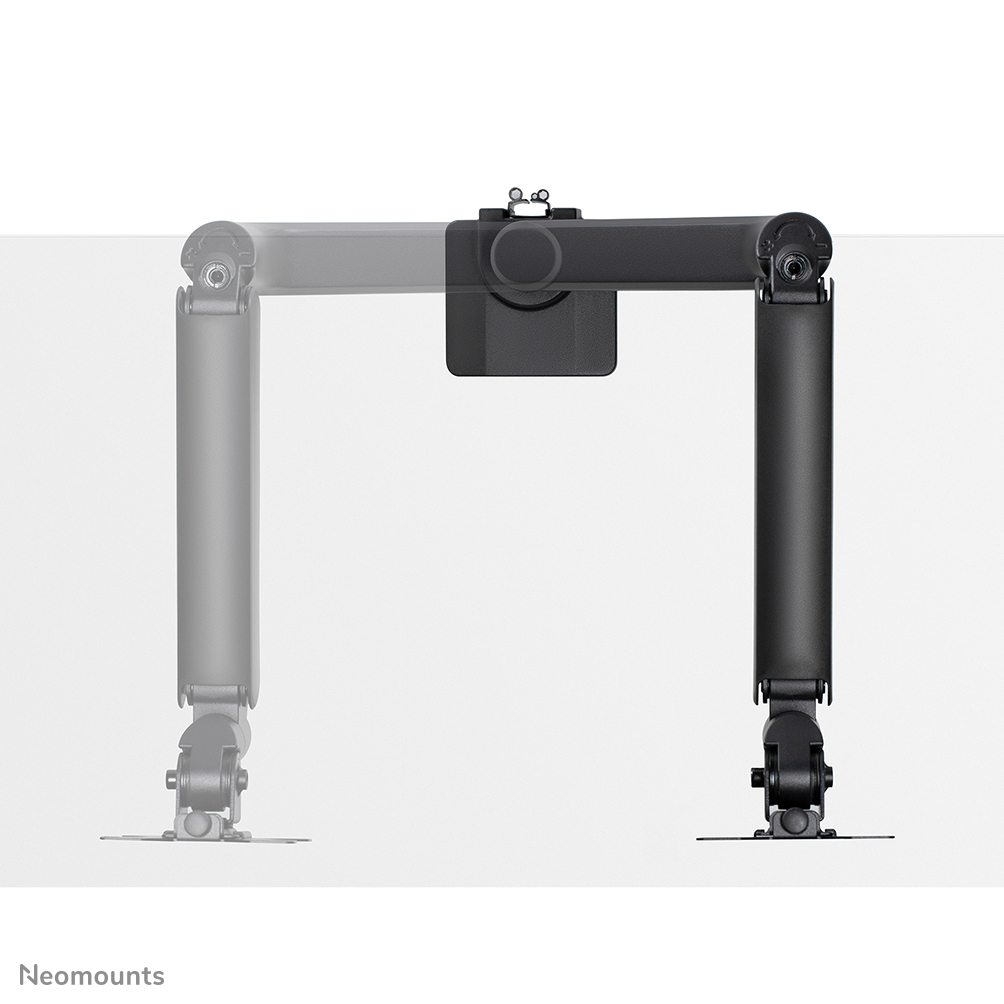

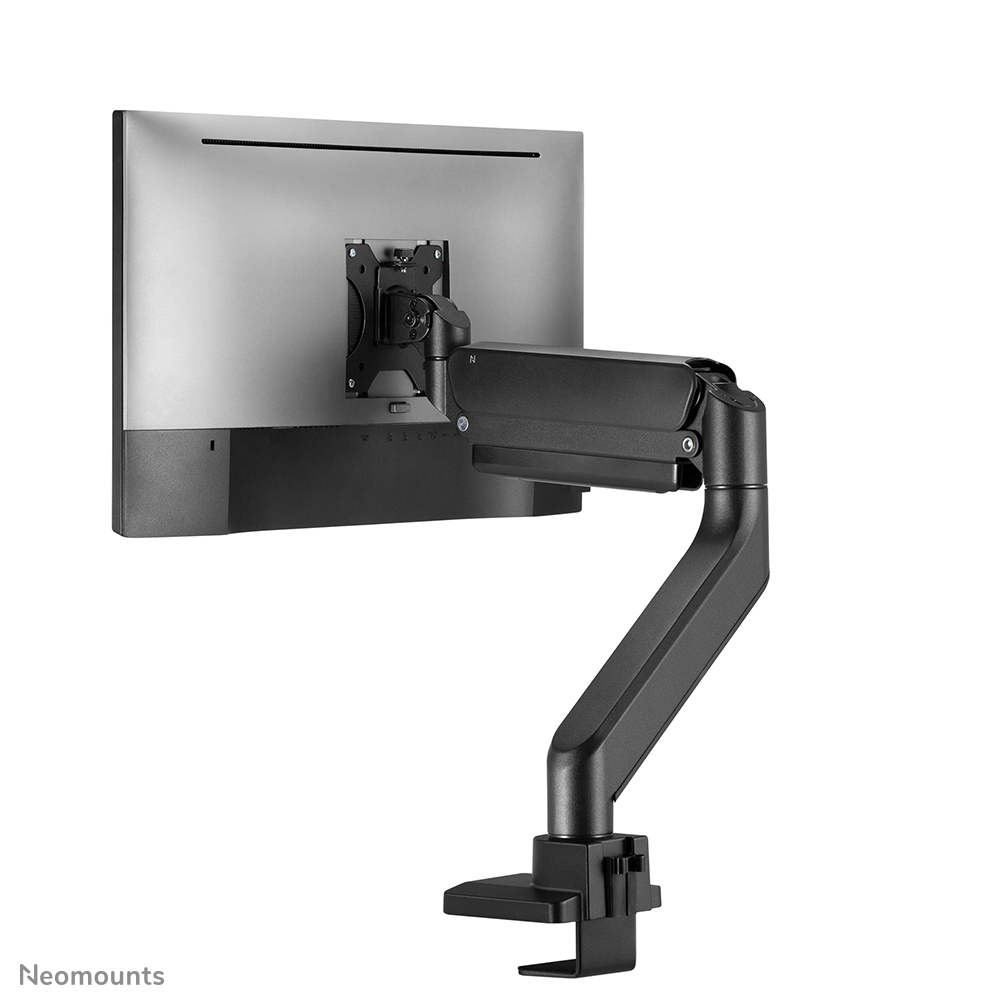

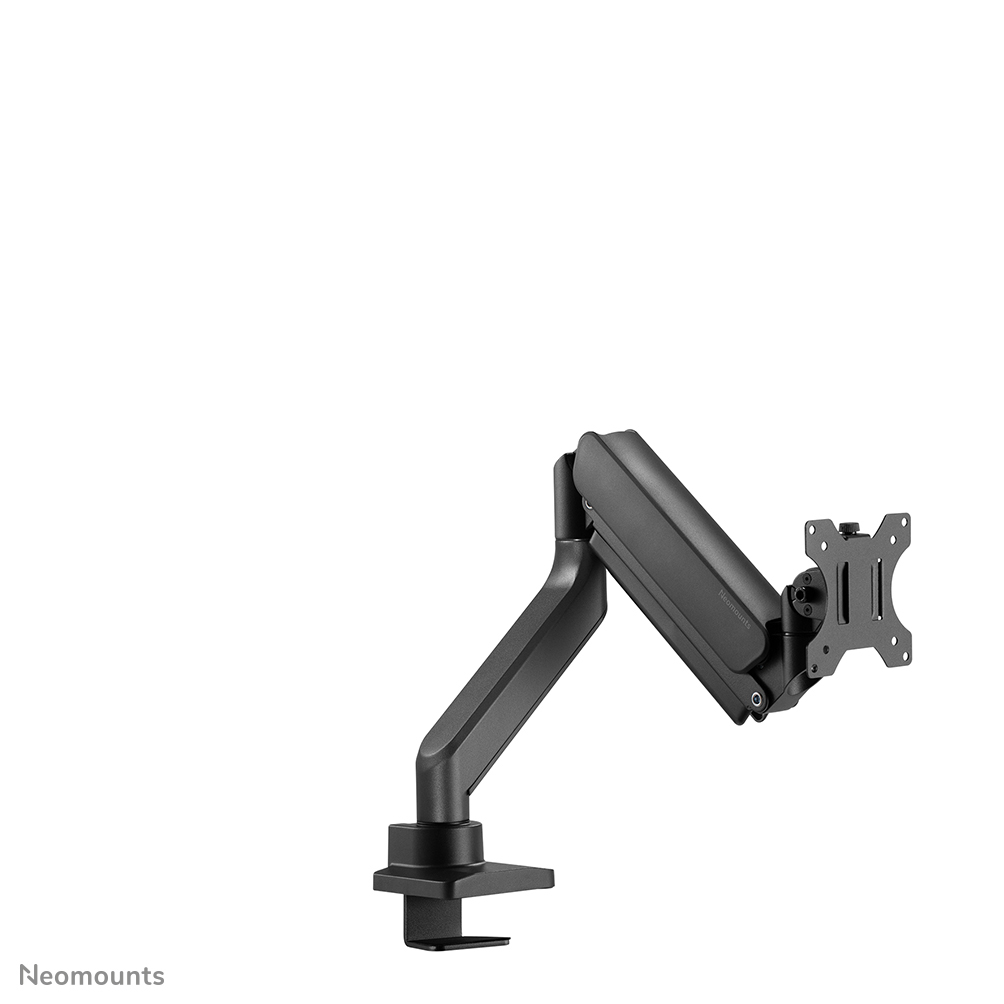

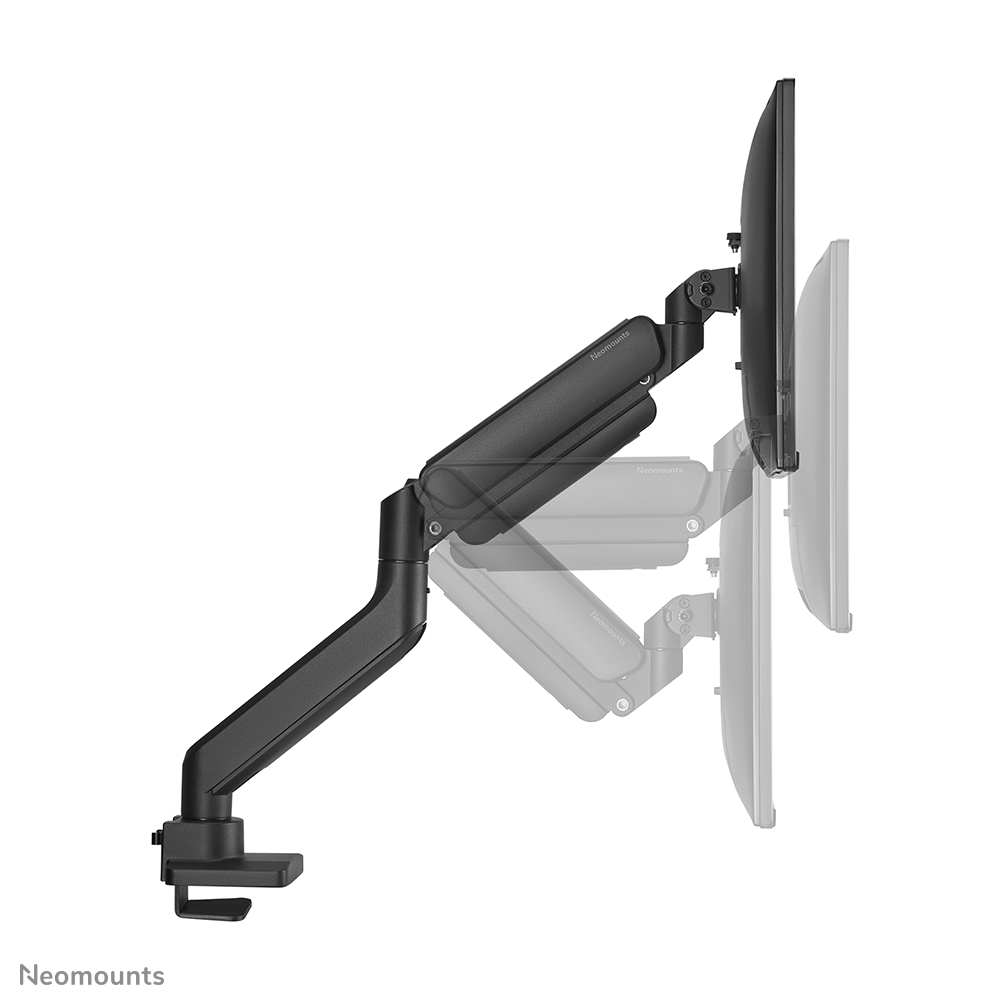

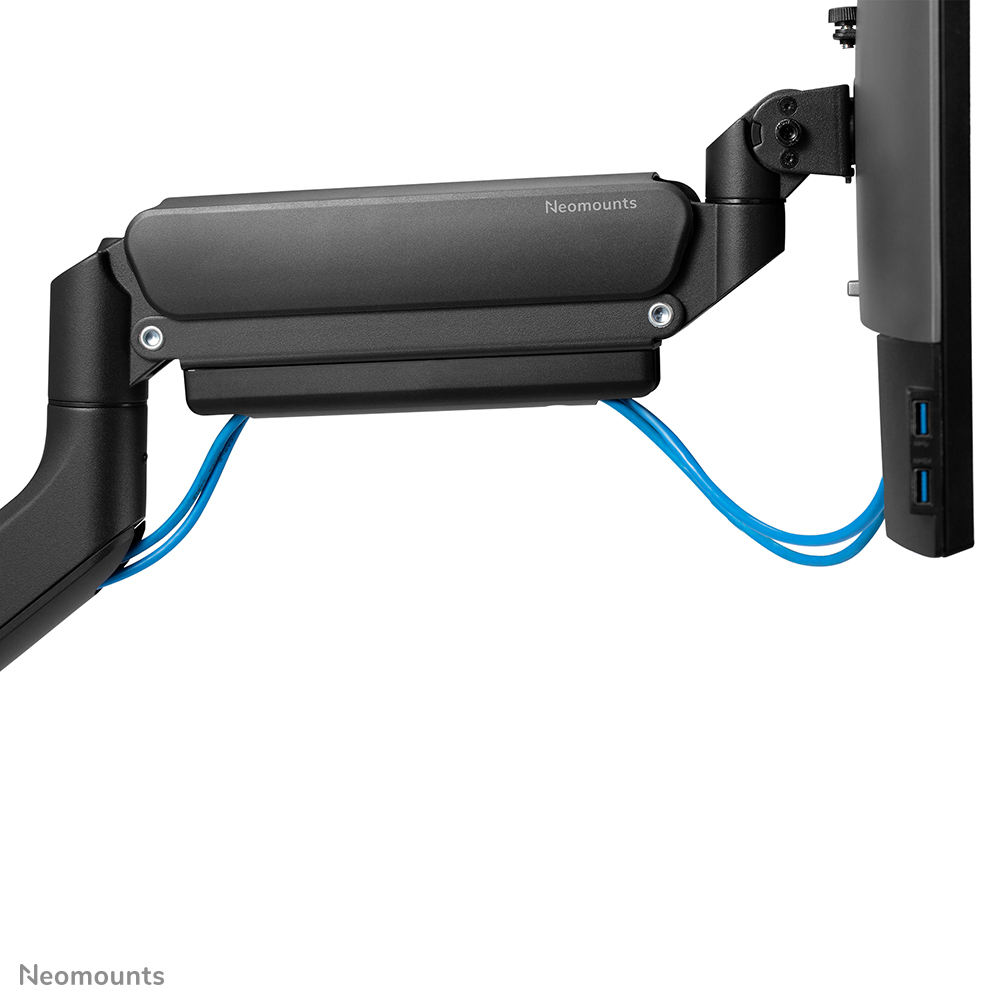

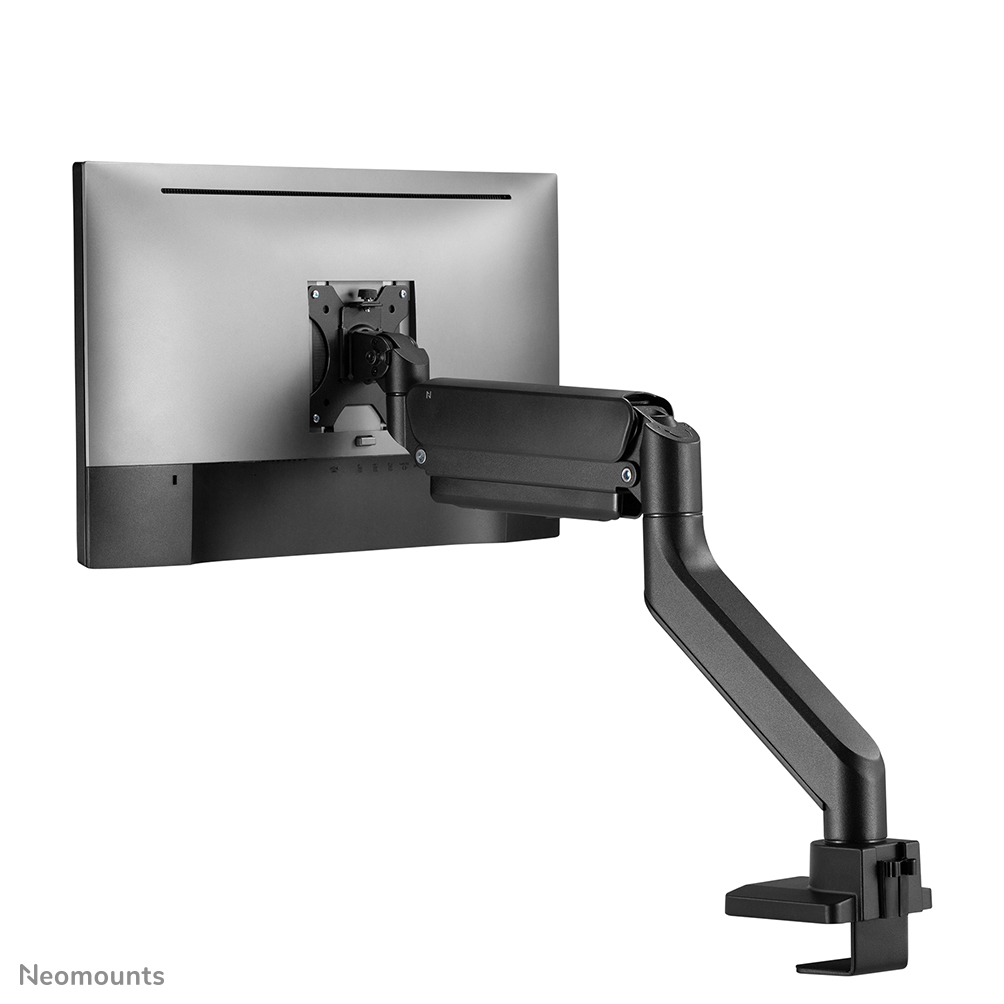

The Neomounts by Newstar DS70-450BL1 is a full motion desk mount for one flat screen up to 42" with a maximum weight capacity of 15 kg. The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (26,1-55 cm) and depth adjustment (0-51,4 cm), to create the perfect working position. The DS70-450BL1 features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.

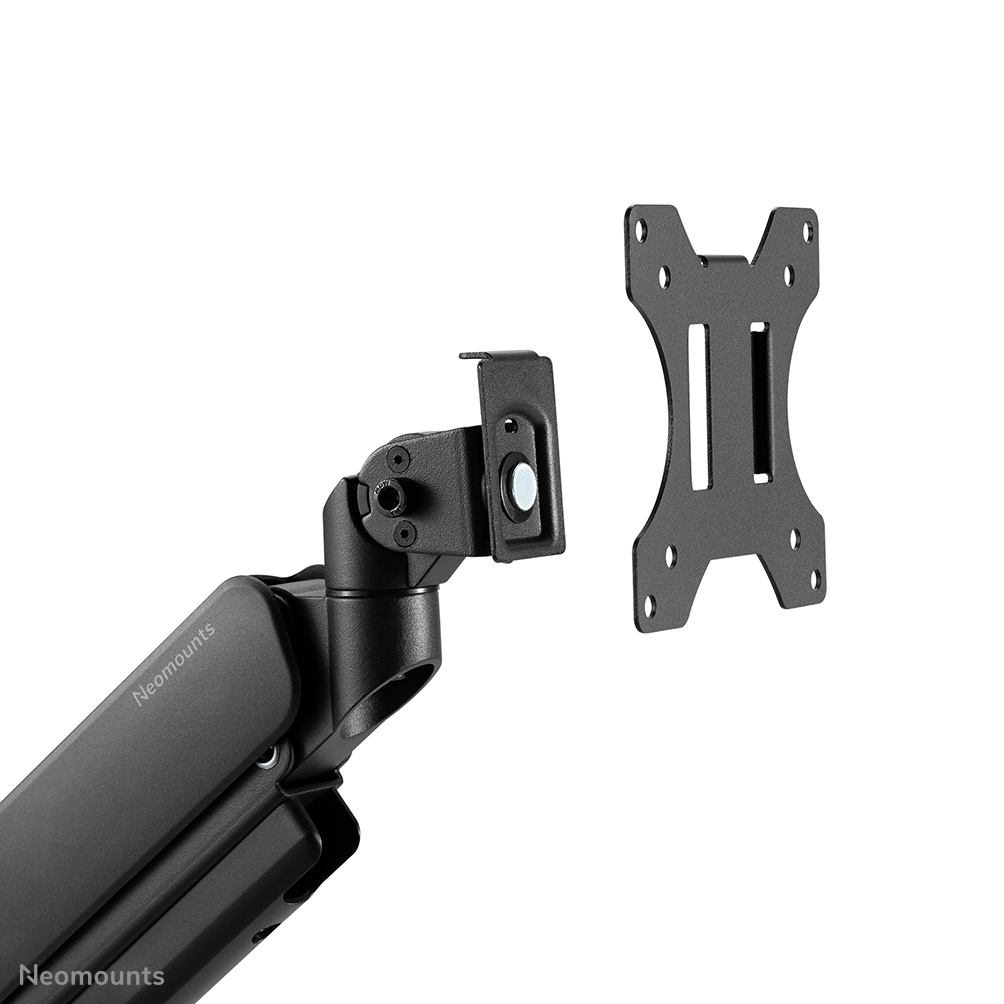

The DS70-450BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Unused hole patterns can be covered using one of Neomounts by Newstar's VESA adapter plates. The desk mount is equipped with an Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.

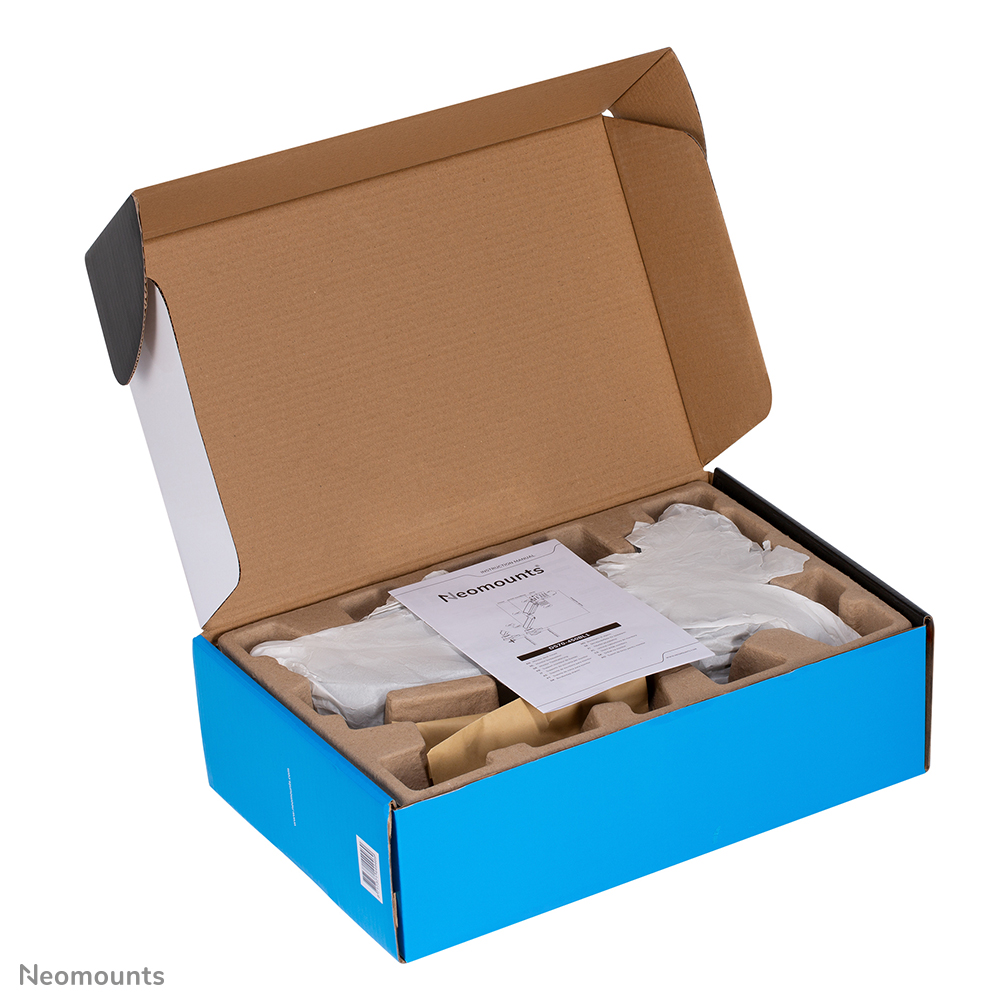

The inner packaging of the DS70-450BL1 desk mount is plastic free and made from cardboard and paper.
Read more

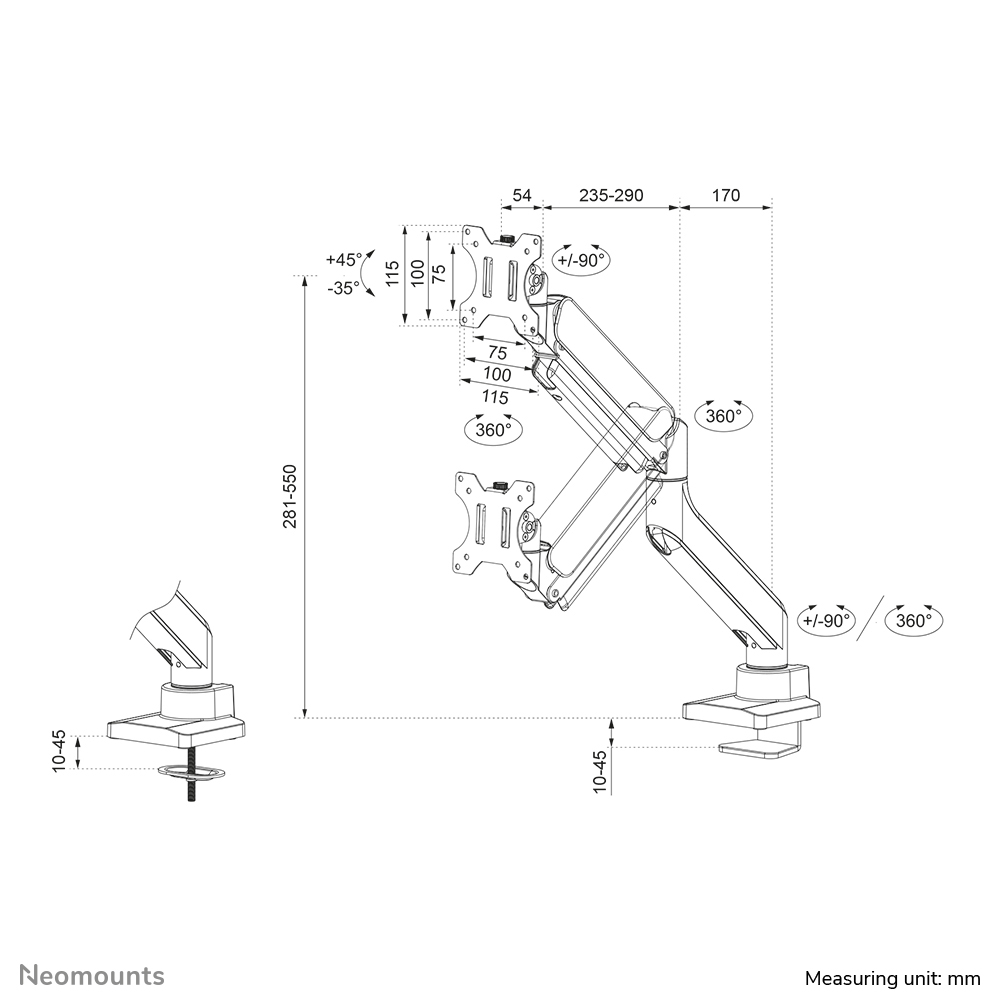

Specifications
General
Min. screen size*
: 17
inch
Max. screen size*
: 42
inch
VESA pattern
: 75x75, 100x100
mm
Desk mount
: Grommet, Clamp
Distance to wall
: 10,8-56,8 cm
FunctionalityType
: Full motion

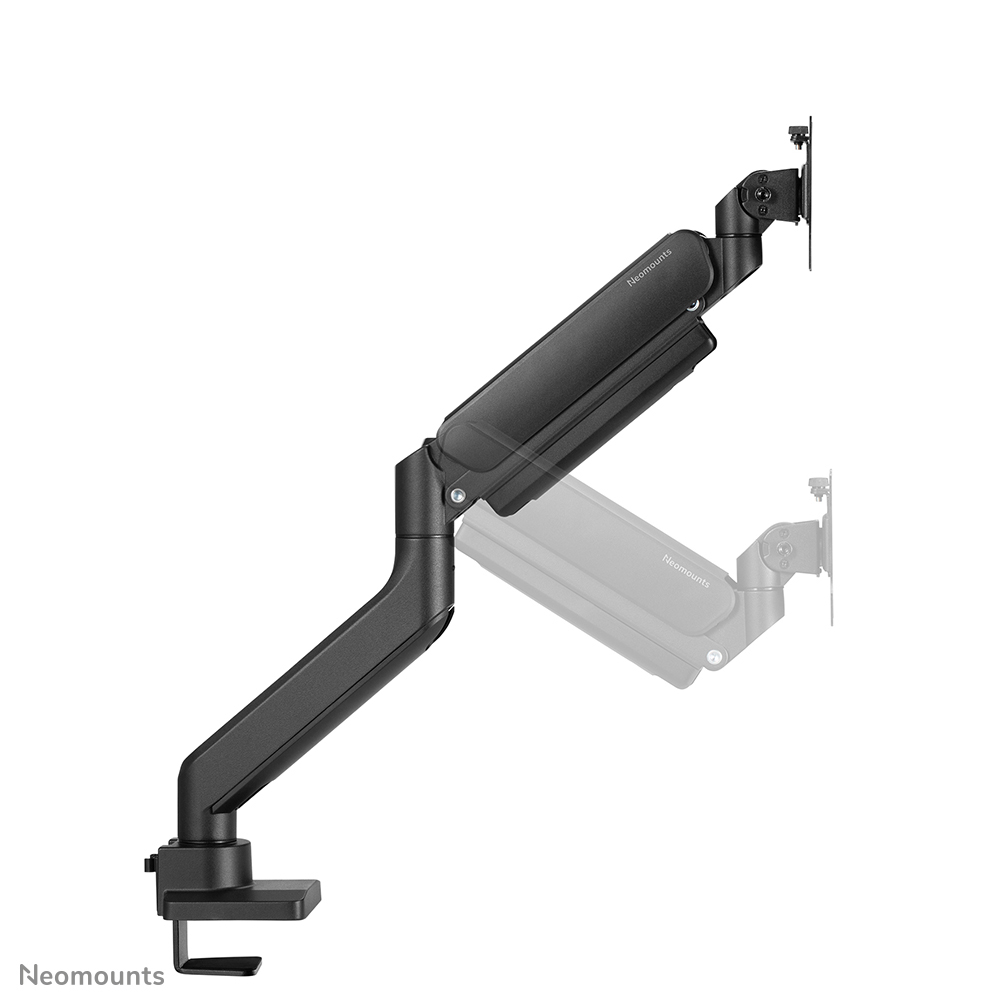

Height adjustment
: 26,1-55,5 cm
Width adjustment
: 92 cm
Depth adjustment
: 5,4-51,1 cm
Tilt (degrees)
: +45°, -45°
Swivel (degrees)
: +90°, -90°
Rotate (degrees)
: +180°, -180°
Height
: 65,3 cm
Width
: 12 cm
Adjustment type
: Gas spring
Depth
: 56,8 cm
InformationArticle number
: DS70-450BL1
EAN
: 8717371449469
Color
: Black
Main material
: Steel
Warranty
: 5 year
*Please note: The inch sizes stated are just an indication, combined with the weight and VESA sizes. The maximum weight and VESA size are absolute restrictions for the products and should not be exceeded.
17- 42 inch
1 - 15 kg
75x75
- 100x100 mm
10,8-56,8 cm
+45°, -45°
+90°, -90°
+180°, -180°
65,3 cm
Product information
The Neomounts by Newstar DS70-450BL1 is a full motion desk mount for one flat screen up to 42" with a maximum weight capacity of 15 kg. The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (26,1-55 cm) and depth adjustment (0-51,4 cm), to create the perfect working position. The DS70-450BL1 features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.
The DS70-450BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Unused hole patterns can be covered using one of Neomounts by Newstar's VESA adapter plates. The desk mount is equipped with an Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.
The inner packaging of the DS70-450BL1 desk mount is plastic free and made from cardboard and paper.
Product documentation
Download the available product documentation here. In case of any further questions please do not hesitate to contact our service & support desk by email: info@neomounts.com.
