Neomounts AV2-500BL Videobar kit 43-110" - VESA - max 10 kg - universal

Neomounts AV2-500BL Videobar kit - 43-110" - max 10 kg - VESA 200x200-800x600 - universal - black
Colours:

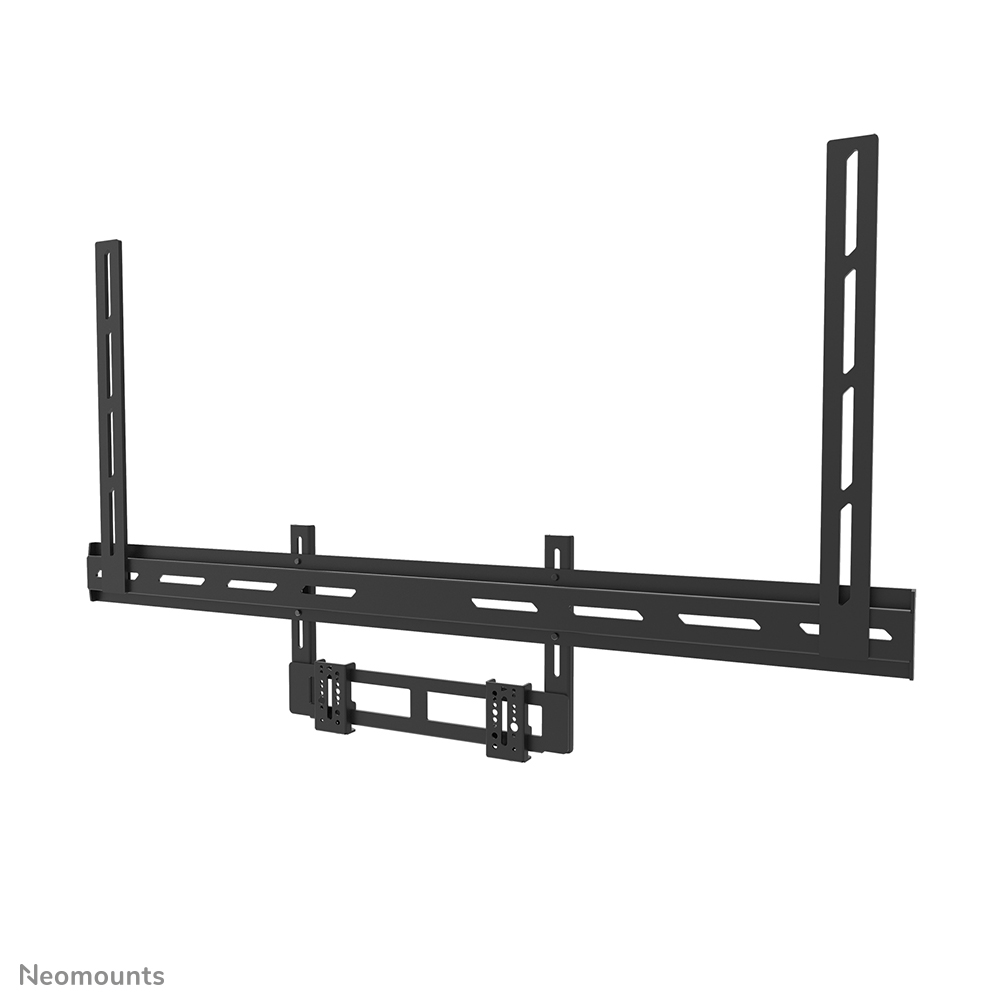

The Neomounts AV2-500BL is a universal videobar kit for screens with a minimal size of 43" and VESA hole pattern ranging from 200x200 to 800x600 mm. The very sturdy, stable and versatile kit has a maximum weight capacity of 10 kg and can be installed either above or below the screen. For maximum adaptability, both the videobar support and the backplate brackets can be independently adjusted in height. The AV2-500BL videobar kit is compatible with most videobars*, PTZ cams and soundbars, including Logitech Rally Plus speakers. To ensure a wide mounting applicability, the mounting holes can vary in width and height. The VESA frame can be adjusted both in height and width (200/400/600/800) and can be installed on wall, floor and even desk or ceiling mounts. Despite the numerous choices, installation is easy, aided by ruler-guided alignment for a seamless screen installation. * The Neomounts AV2-500BL videobar kit is universal and suitable for any type of videobar, regardless of make or model, within the range of the mounting bracket (see line drawing). In addition, the AV2-500BL is optimised for the following specific videobars: - Bose Professional VB1 and VB-S - Neat Bar and Bar Pro - Poly Studio, Studio X70 and Studio X30 - Jabra Panacast 50 - Logitech Meetup, Rally Bar, Rally Bar Mini, Rally Bar Huddle and Rally Plus - Cisco Webex Room Kit Plus - Yealink MSpeaker II, MeetingBar A30, MeetingEye 400 and MeetingEye 600 Refer to the online manual for specific model or mounting size compatibility.
Read more

Specifications

General
Min. screen size*:

43 inch
Max. screen size*:

110 inch
Max. weight:

10 kg
VESA pattern:

200x200, 200x300, 200x400, 400x200, 400x300, 400x400, 400x500, 400x600, 600x200, 600x300, 600x400, 600x500, 600x600, 800x200, 800x400, 800x500, 800x600 mm
VESA minimum:

200x200
VESA maximum:

800x600

Functionality
Height:

41,6 cm
Width:

90 cm
Depth:

3,1 cm
Adjustment type:

Manual

Information
Article number:

AV2-500BL

EAN:

8717371442651

Color:

Black

Main material:

Steel

Warranty:

5 year


*Please note: The inch sizes stated are just an indication, combined with the weight and VESA sizes. The maximum weight and VESA size are absolute restrictions for the products and should not be exceeded.
Min. screen size*43- 110 inch
VESA minimum200x200 - 800x600
Warranty5 year

Product information

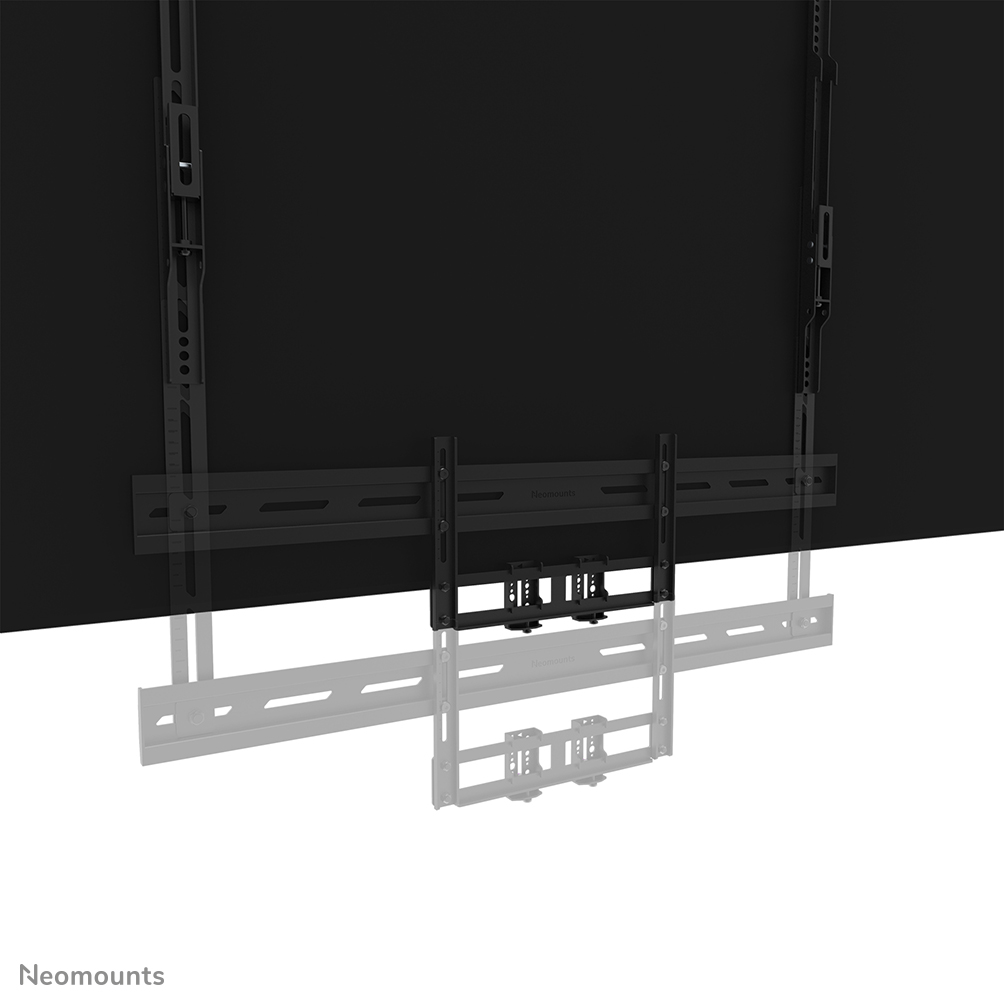

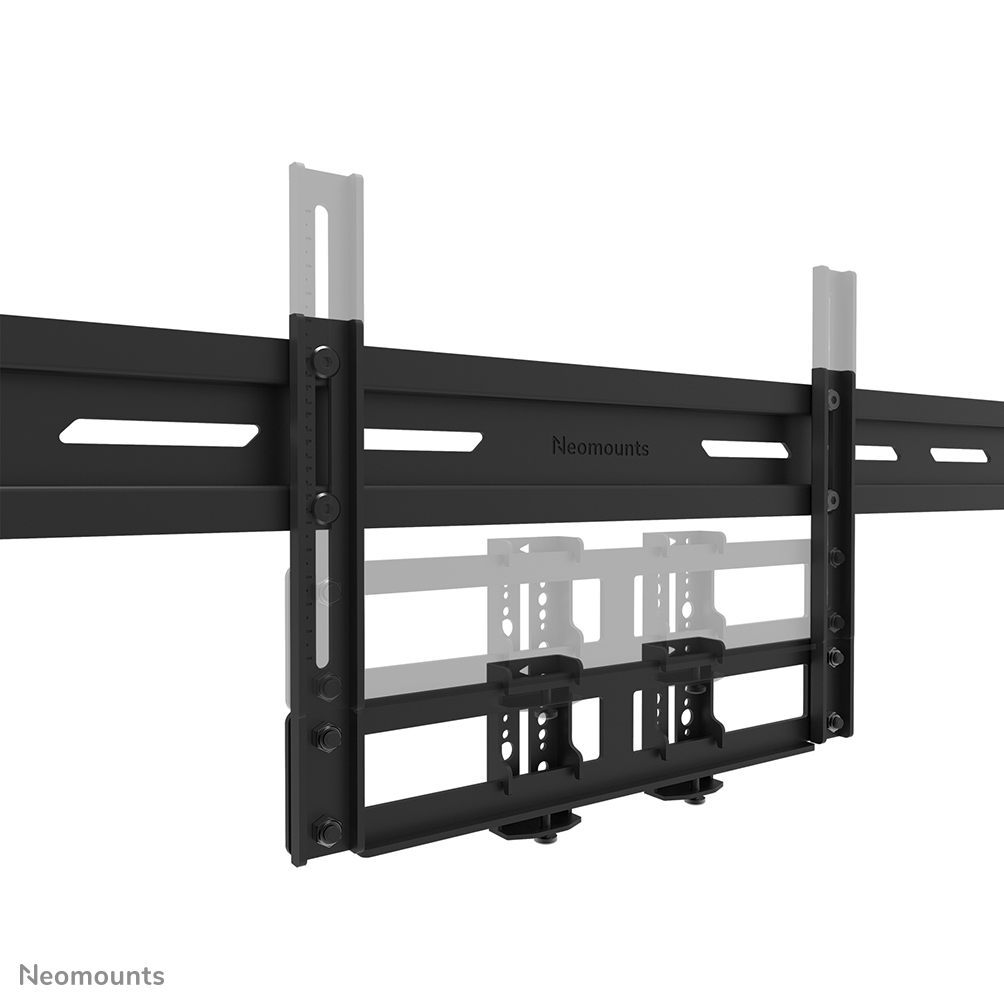

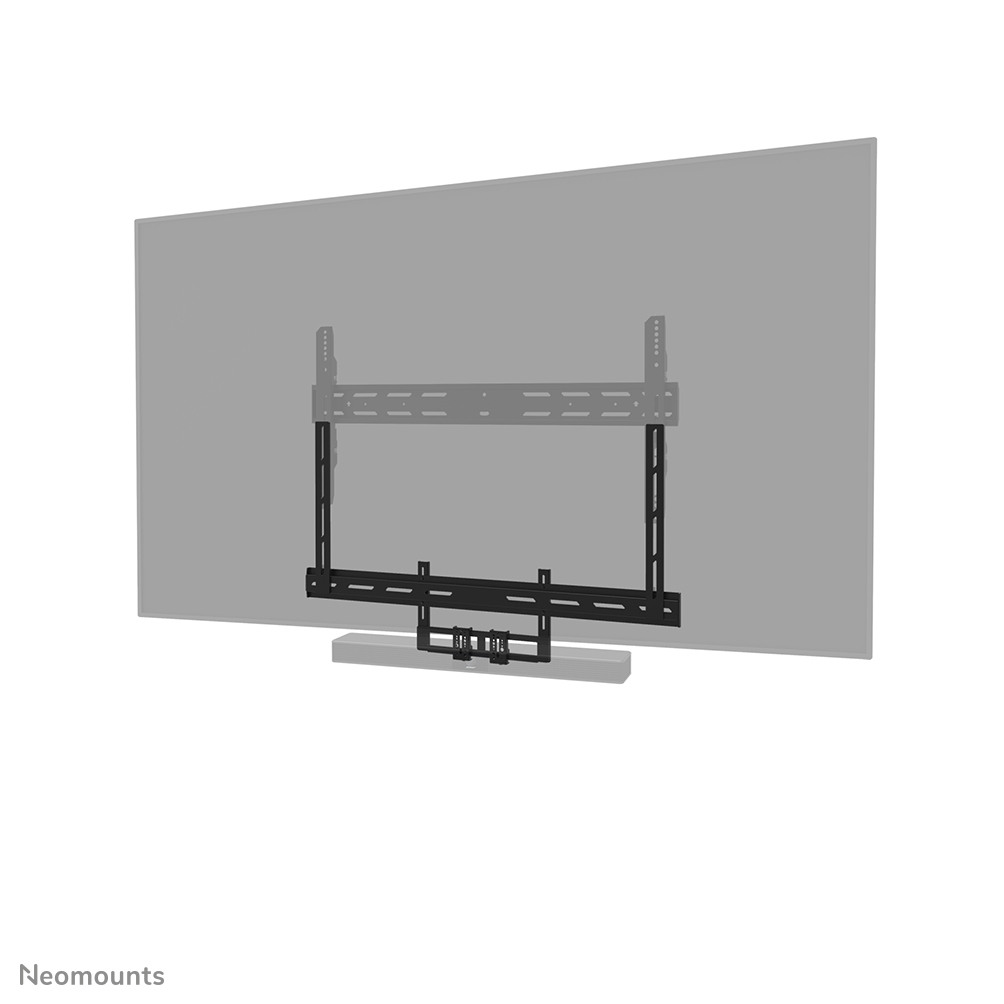

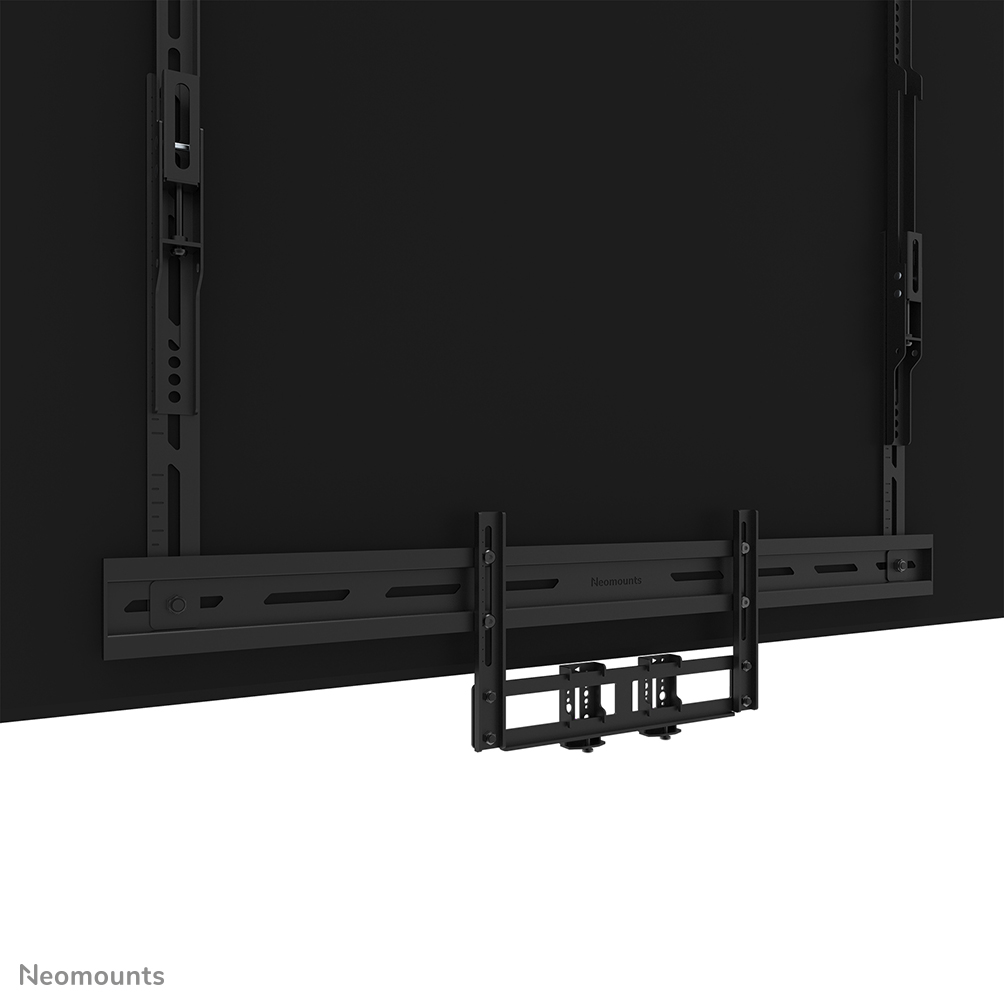

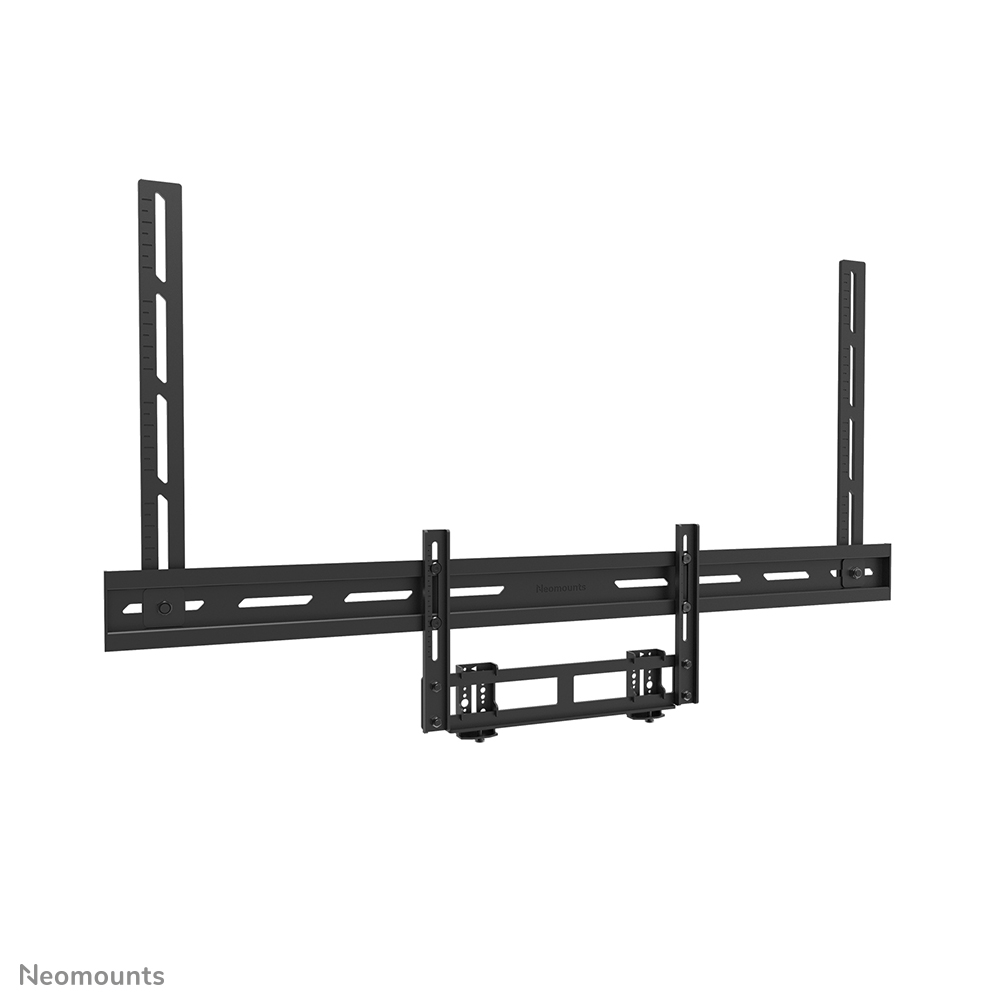

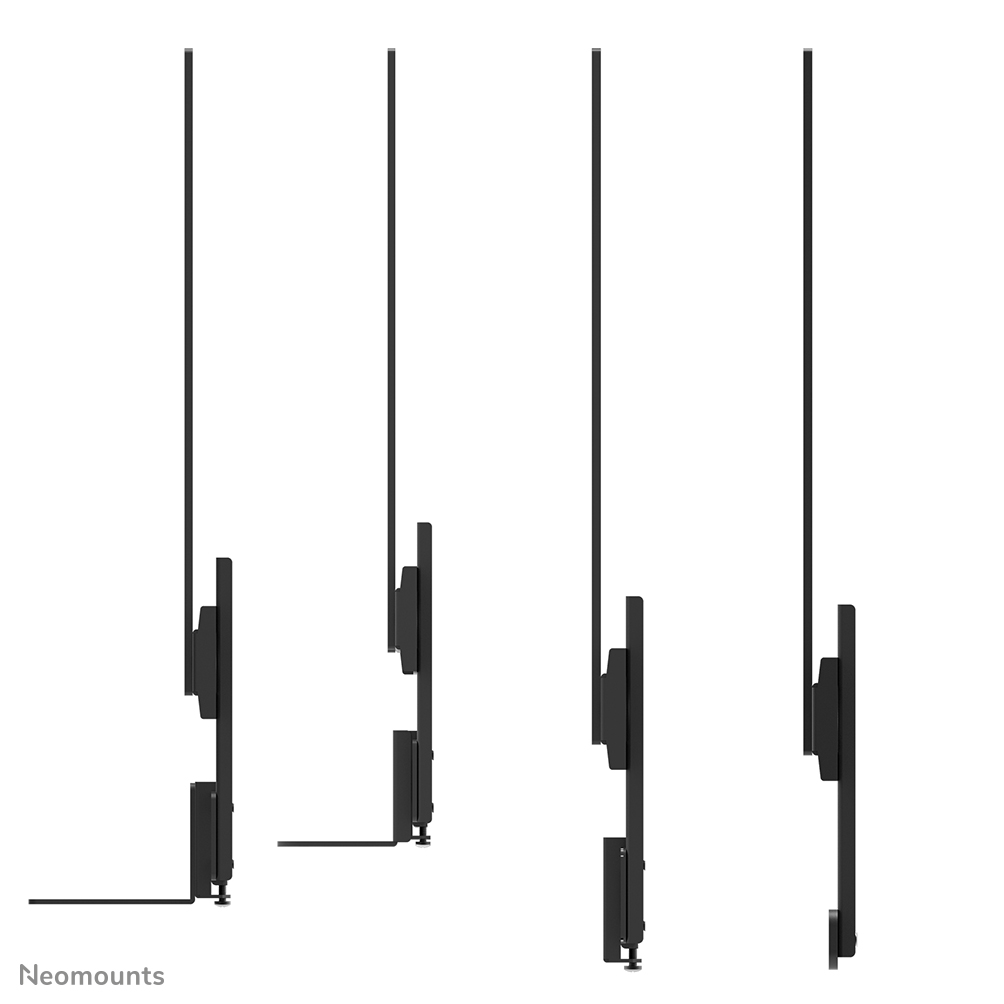

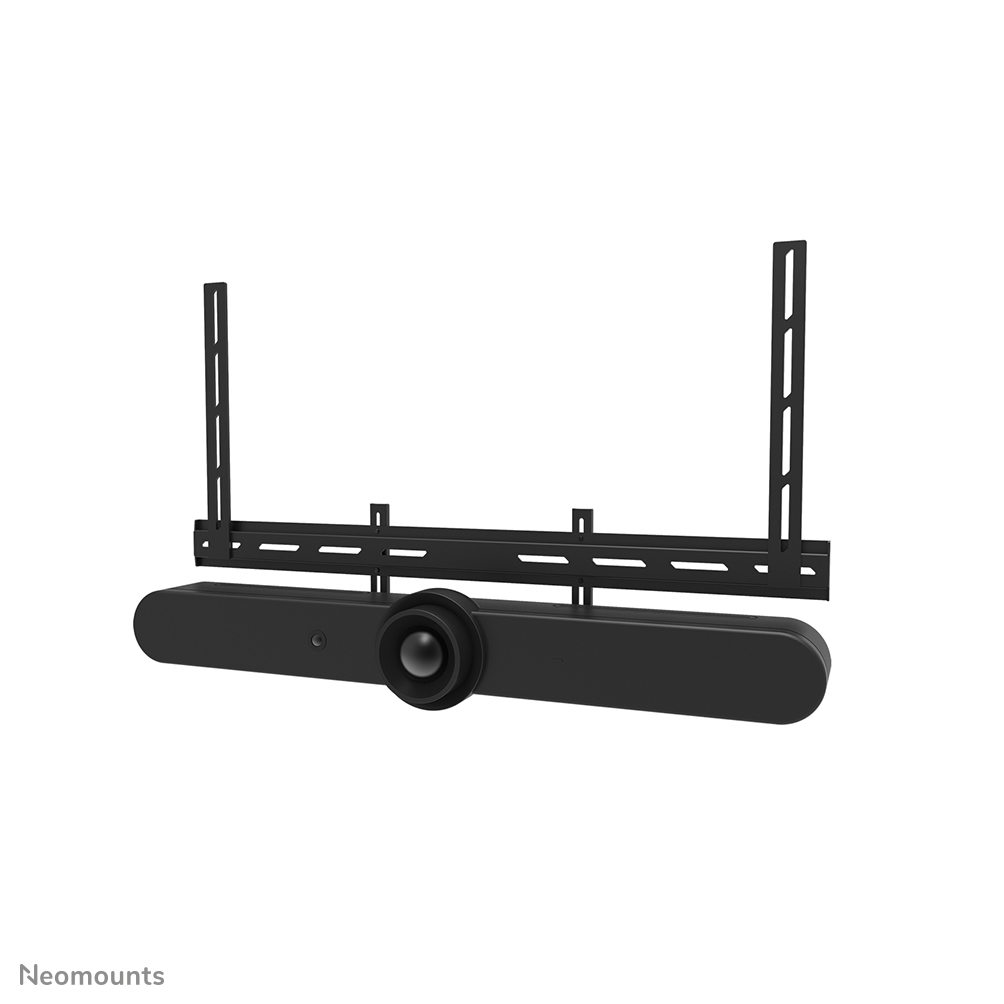

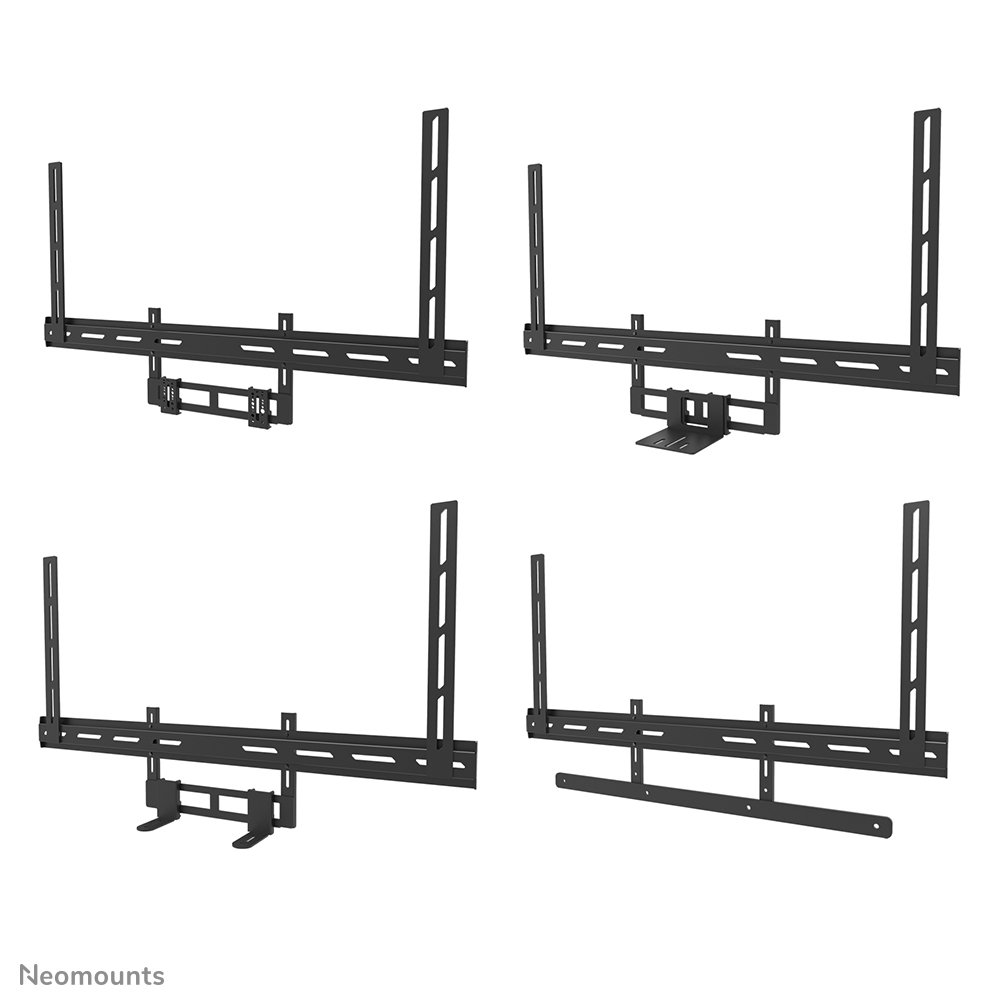

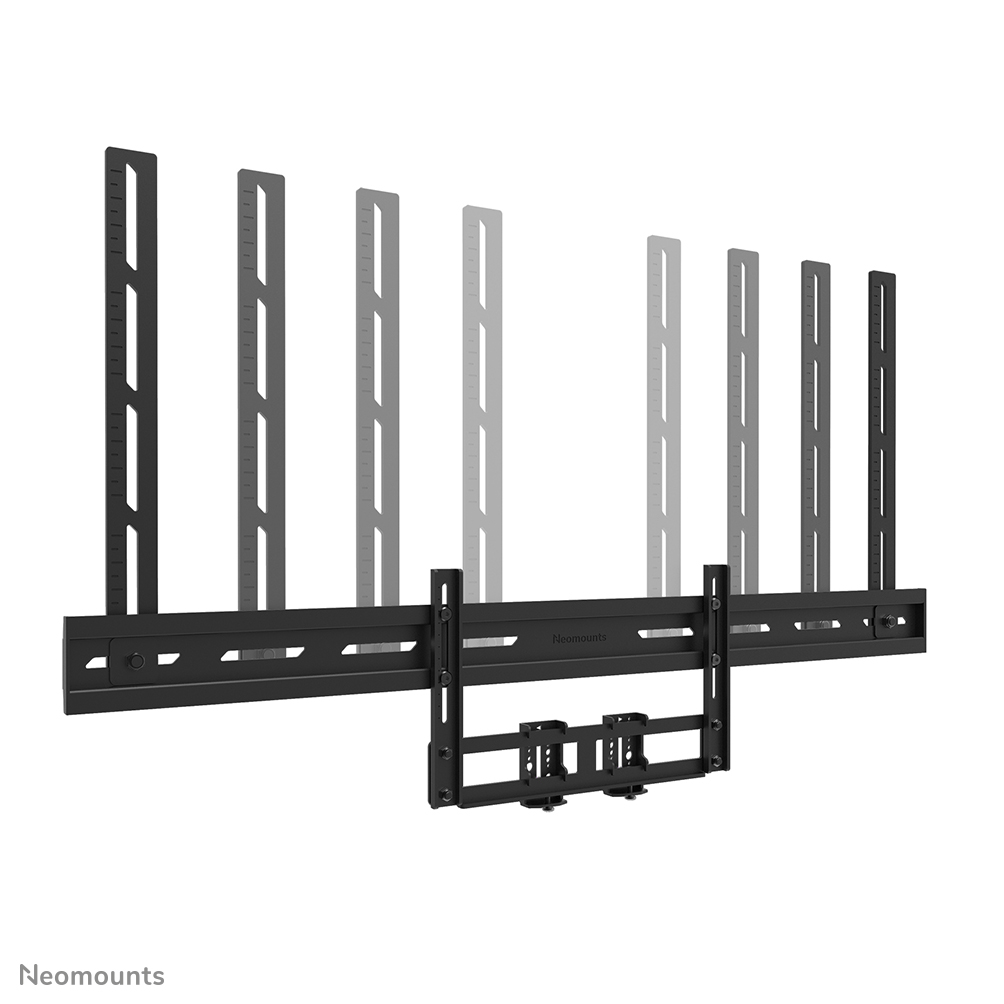

The Neomounts AV2-500BL is a universal videobar kit for screens with a minimal size of 43" and VESA hole pattern ranging from 200x200 to 800x600 mm. The very sturdy, stable and versatile kit has a maximum weight capacity of 10 kg and can be installed either above or below the screen. For maximum adaptability, both the videobar support and the backplate brackets can be independently adjusted in height.

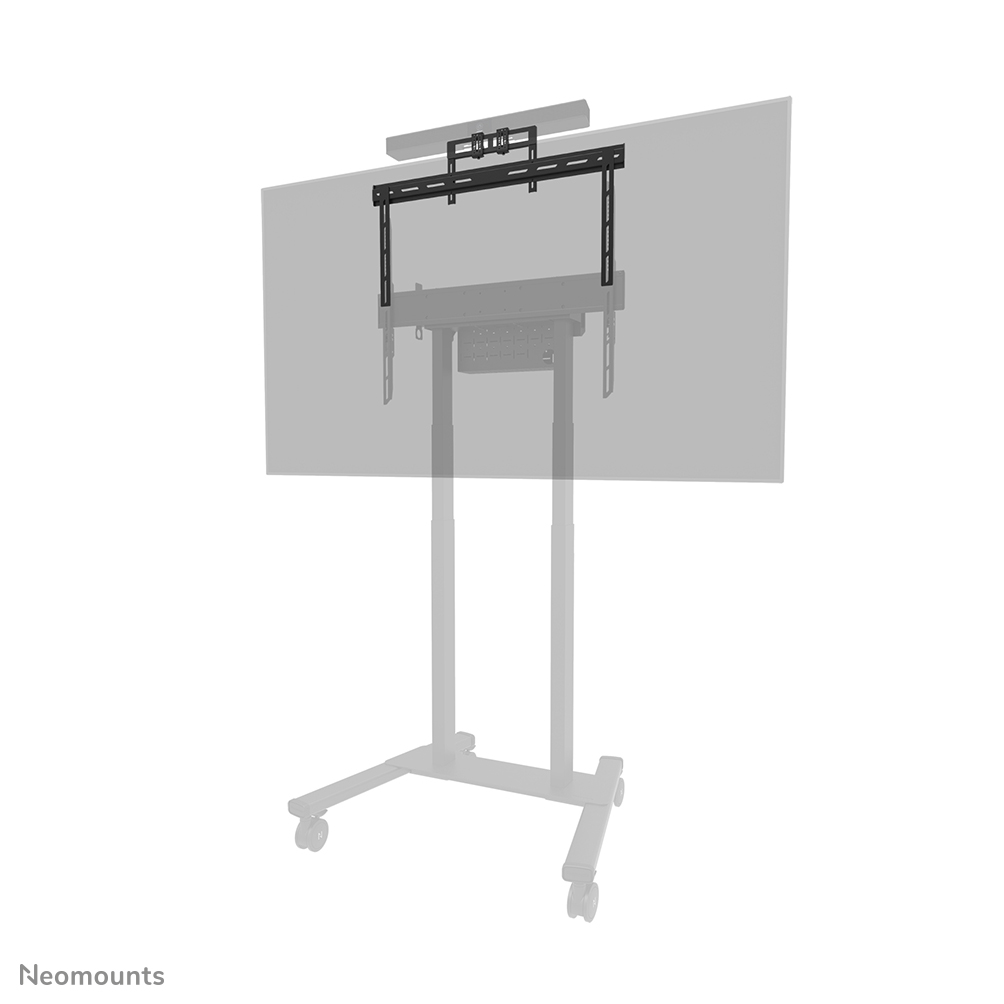

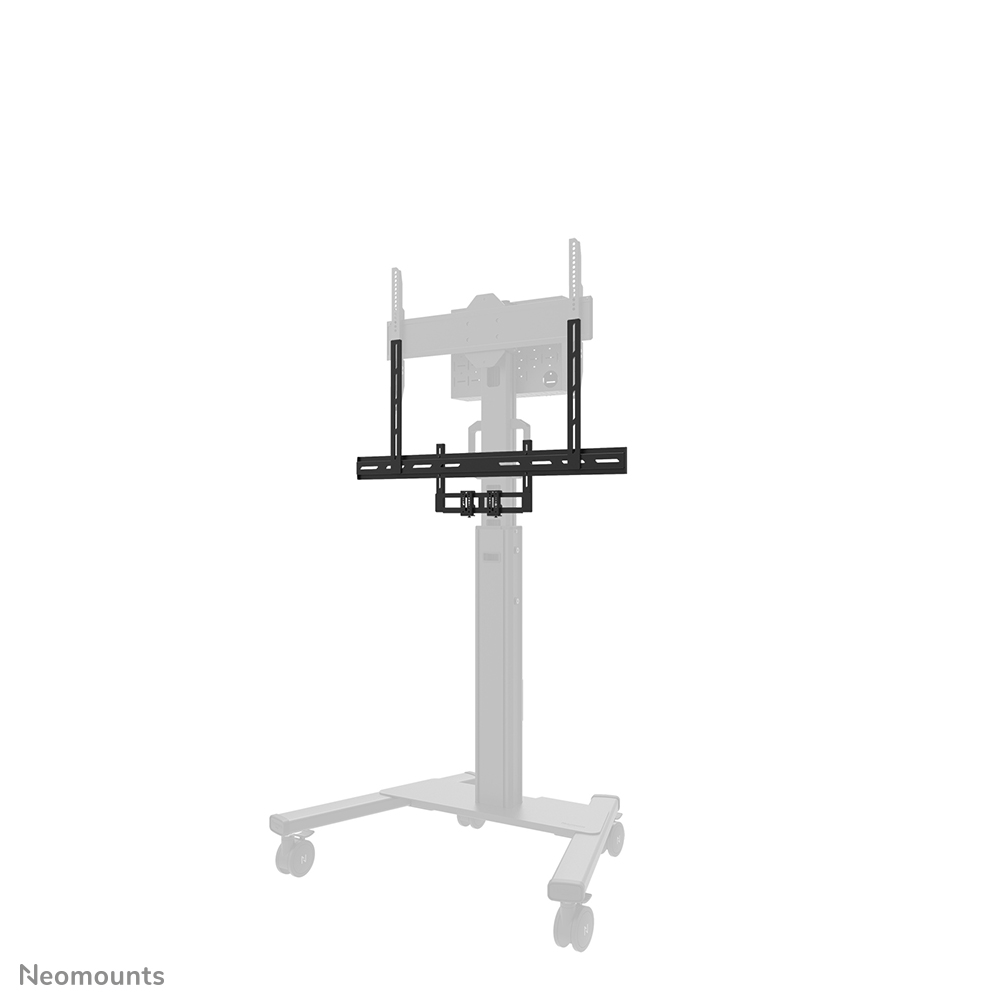

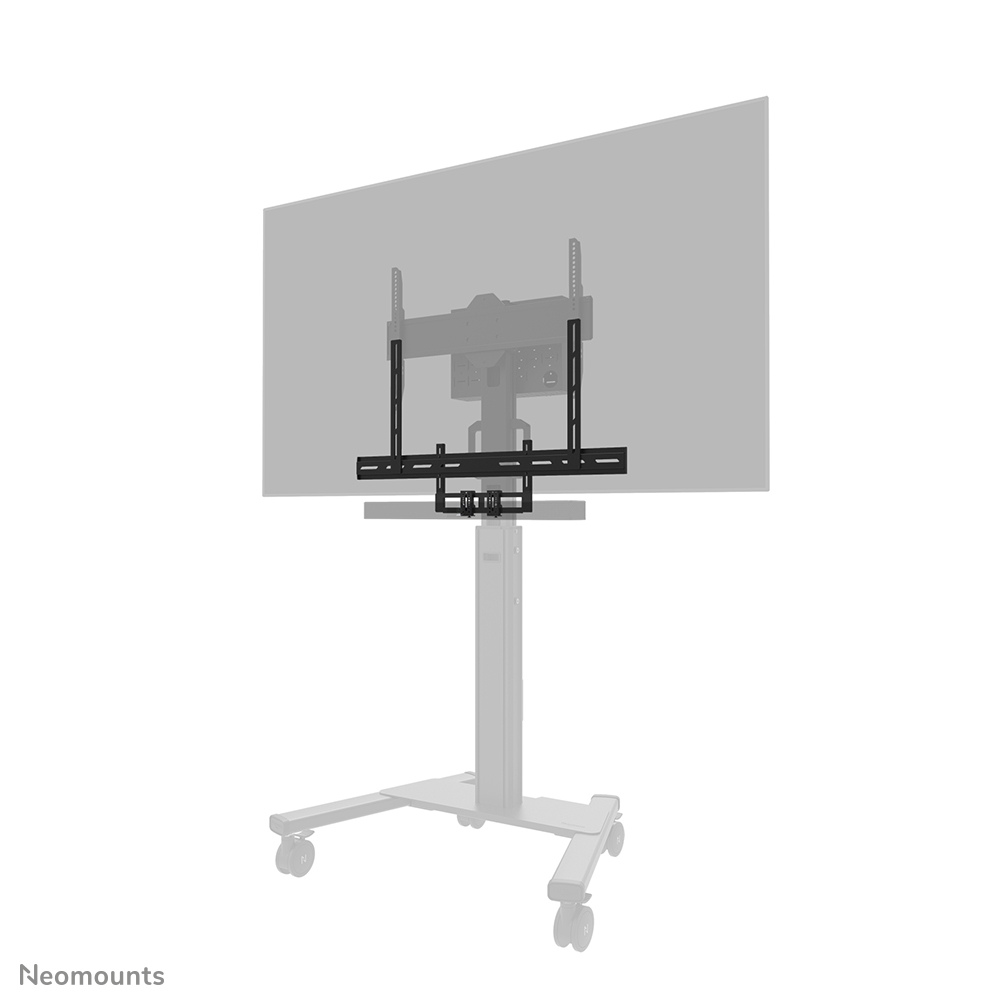

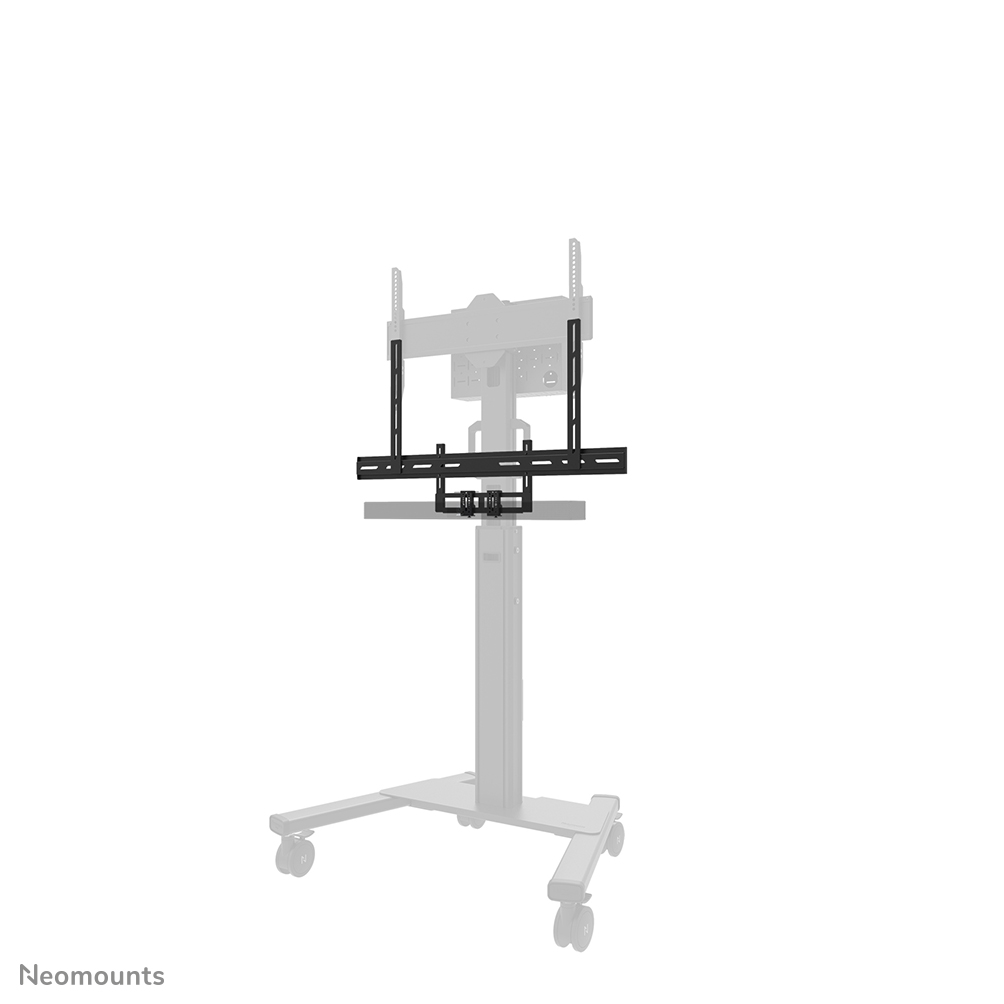

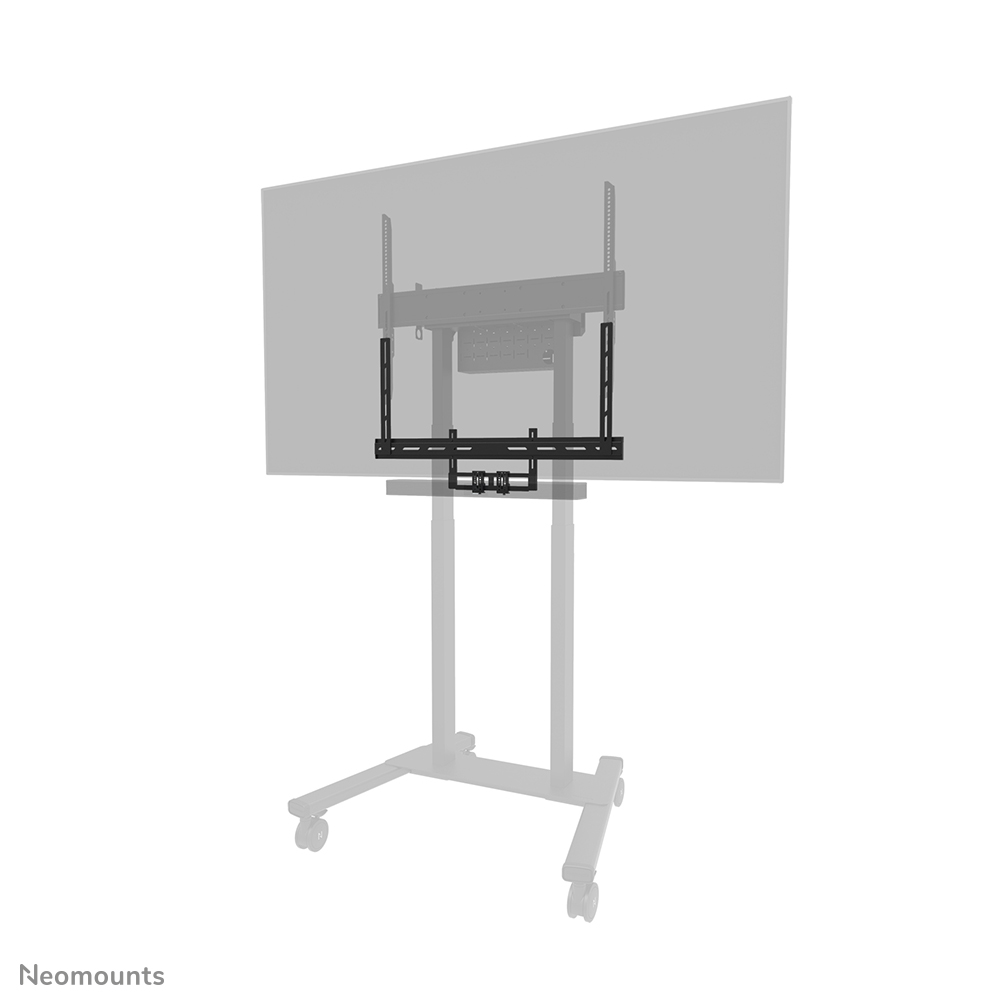

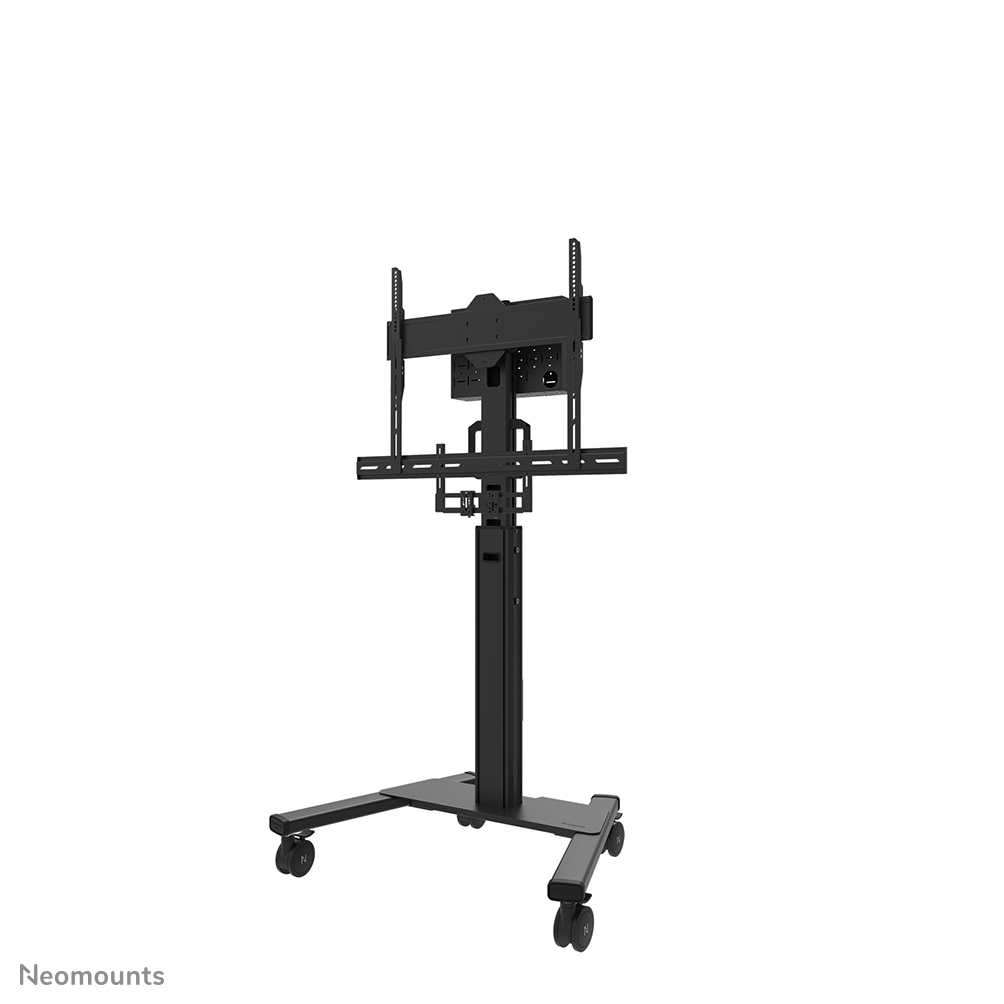

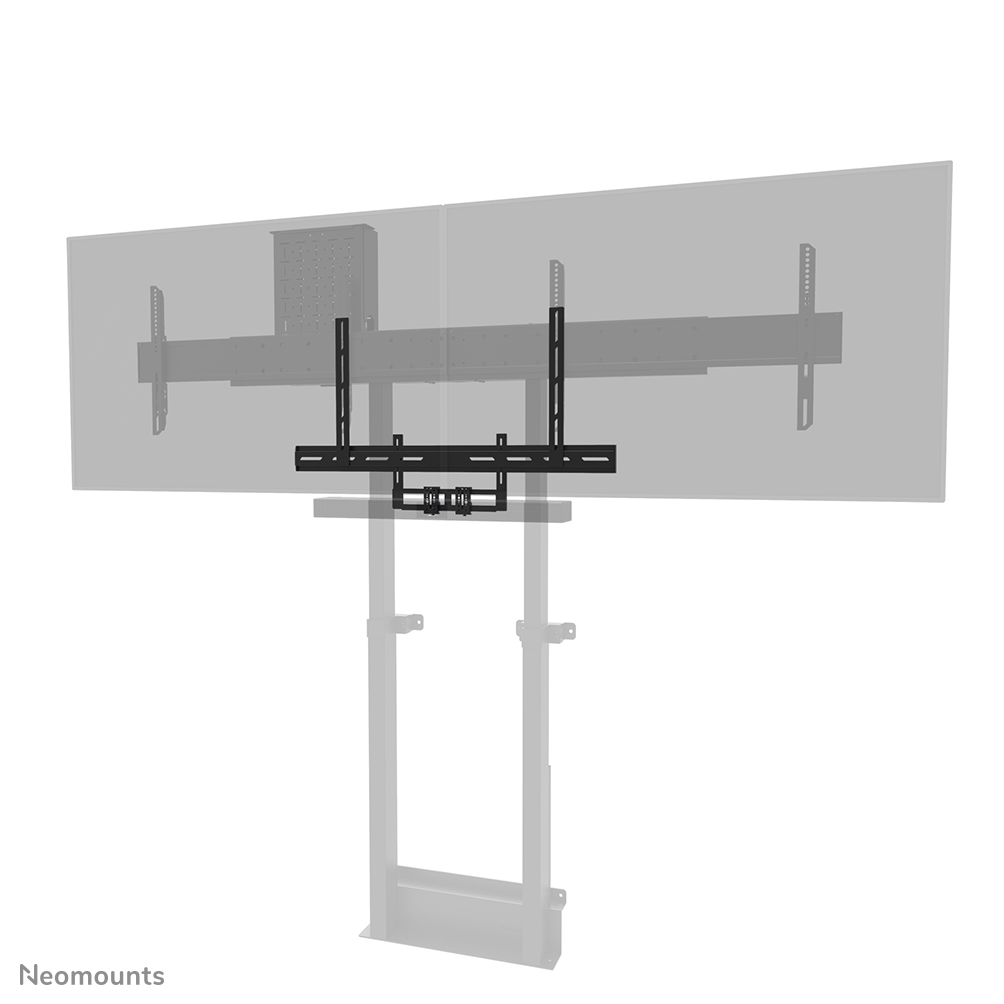

The AV2-500BL videobar kit is compatible with most videobars*, PTZ cams and soundbars, including Logitech Rally Plus speakers. To ensure a wide mounting applicability, the mounting holes can vary in width and height. The VESA frame can be adjusted both in height and width (200/400/600/800) and can be installed on wall, floor and even desk or ceiling mounts. Despite the numerous choices, installation is easy, aided by ruler-guided alignment for a seamless screen installation.

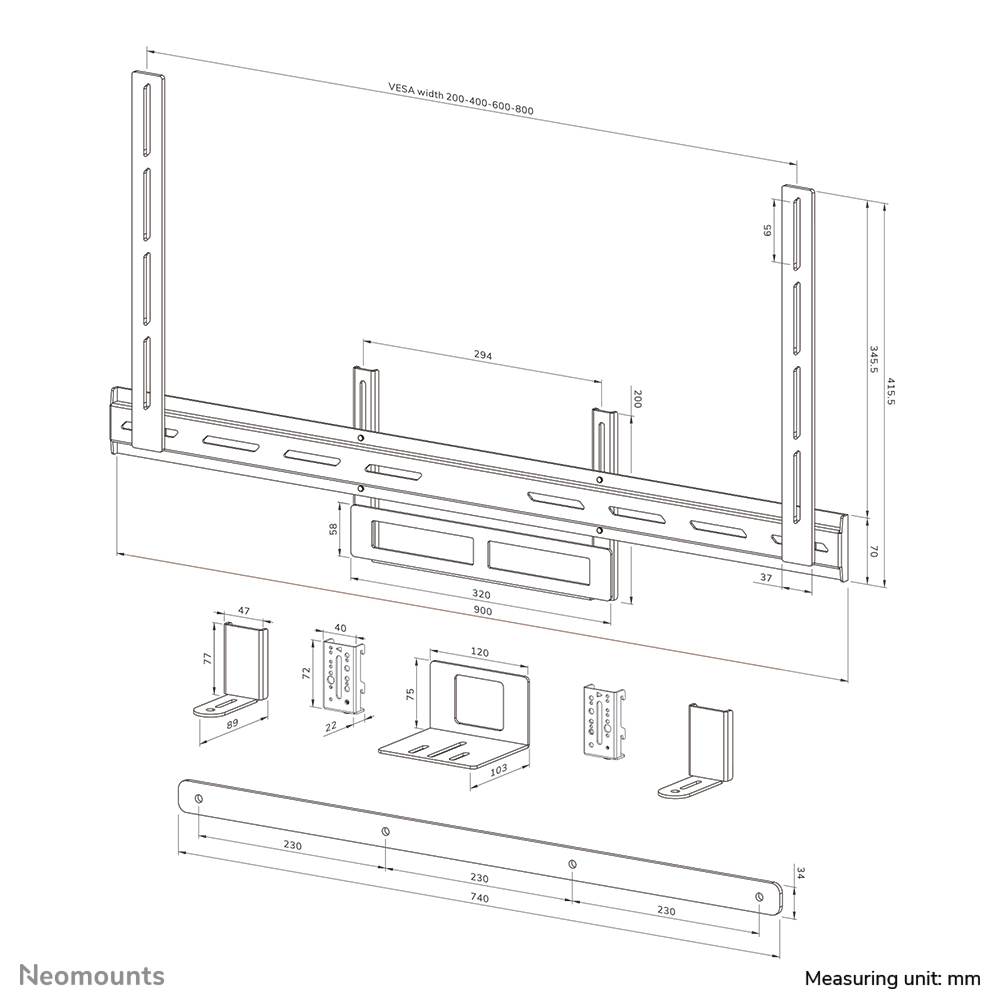

* The Neomounts AV2-500BL videobar kit is universal and suitable for any type of videobar, regardless of make or model, within the range of the mounting bracket (see line drawing). In addition, the AV2-500BL is optimised for the following specific videobars:

- Bose Professional VB1 and VB-S
- Neat Bar and Bar Pro
- Poly Studio, Studio X70 and Studio X30
- Jabra Panacast 50
- Logitech Meetup, Rally Bar, Rally Bar Mini, Rally Bar Huddle and Rally Plus
- Cisco Webex Room Kit Plus
- Yealink MSpeaker II, MeetingBar A30, MeetingEye 400 and MeetingEye 600

Refer to the online manual for specific model or mounting size compatibility.
