NMPRO-WMB4 Neomounts Pro menu board wall mount

Neomounts Pro Menuboard Wall mount for four 32"-55"/65" Screens - Black
Tell a friend

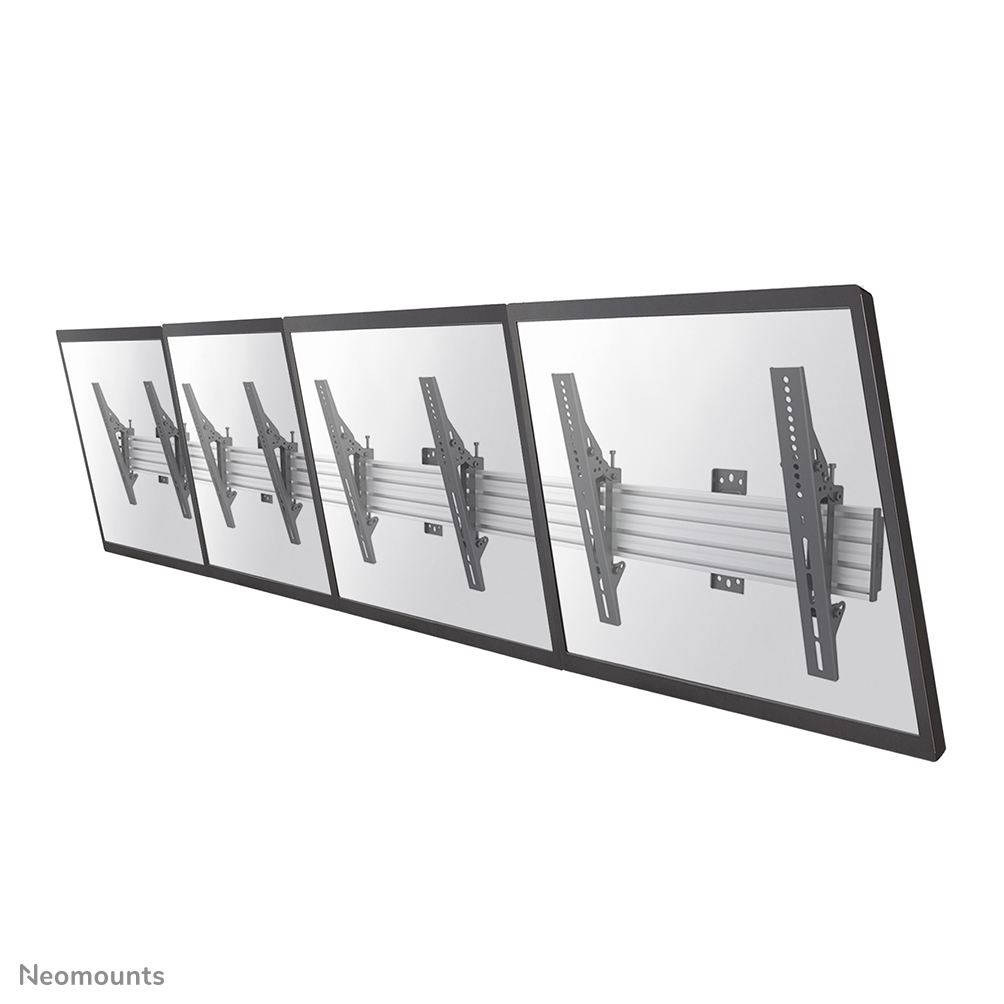

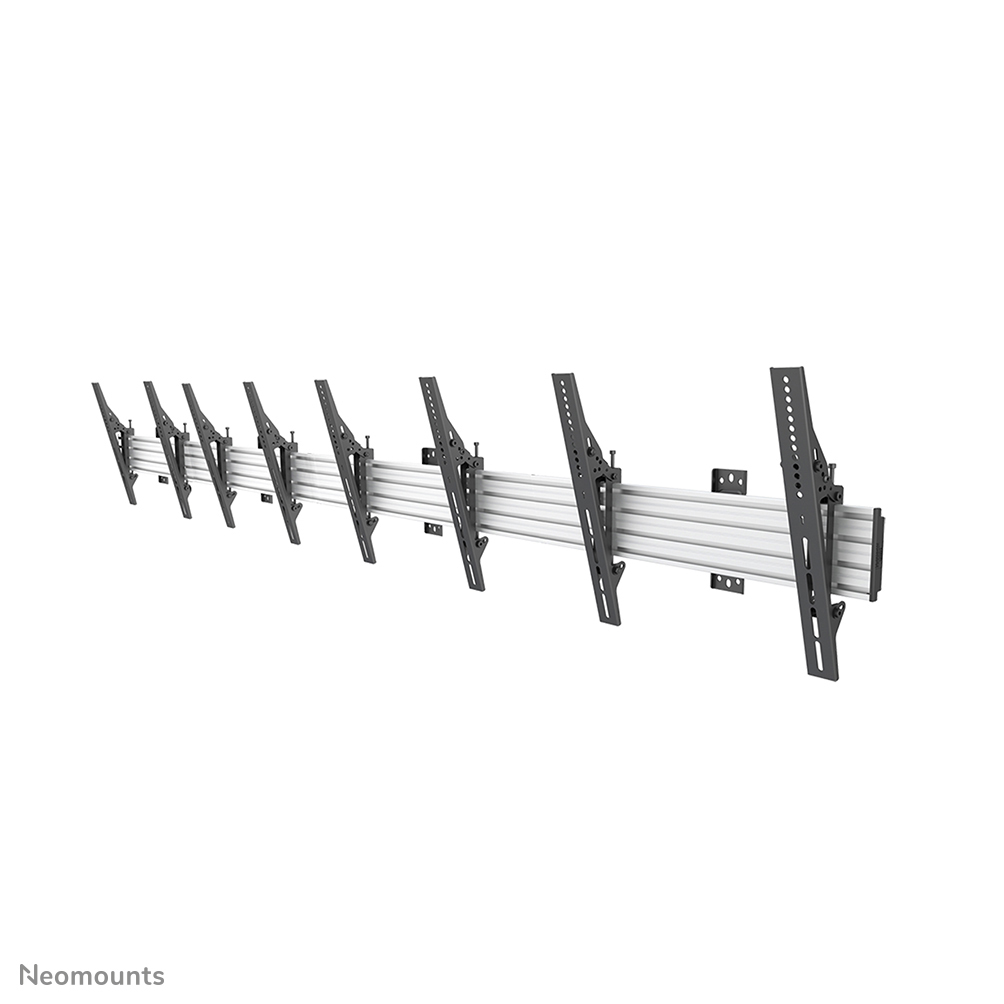

The Neomounts Pro menuboard wall mount, model NMPRO-WMB4, is a tiltable wall mount for four flat screens up to 55"/65". This mount is a great choice when you want the ultimate viewing flexibility with your flat screen. The Neomounts Pro tilt (0°/-6°/+15°) technology allows the mount to change to the best suitable viewing angle. Neomounts Pro NMPRO WMB-series is suitable for 1 to 4 screens. The weight capacity of this product is 30 kg each screen. The wall mount is suitable for screens that meet VESA 100x100 to 400x400mm (65") or VESA 100x100 to 600x400mm (55"). Depth of this mount is 5,6 centimetres. * All installation material is included with the product.
Read more

SpecificationsProduct informationProduct documentationAccessories

Specifications

General
Min. screen size*
:
32 inch
Max. screen size*
:
55 inch
Min. weight
:
0 kg (per screen)
Max. weight
:
30 kg (per screen)
Screens
:
4
VESA pattern
:
100x100, 100x150, 100x200, 200x100, 200x200, 200x300, 200x400, 300x100, 300x200, 300x300, 400x200, 400x300, 400x400, 400x600, 440x400, 500x400, 600x200, 600x300, 600x400 mm
VESA minimum
:
100x100 mm
VESA maximum
:
600x400 mm

Functionality
Type
:
Tilt, Fixed
Height adjustment
:
44 cm
Width adjustment
:
449 cm
Depth adjustment
:
6 cm
Tilt (degrees)
:
21°
Adjustment type
:
Micro adjustment

Information
Article number
:
NMPRO-WMB4

EAN
:
8717371447564

Color
:
Black

Main material
:
Aluminium

Warranty
:
5 year


*Please note: The inch sizes stated are just an indication, combined with the weight and VESA sizes. The maximum weight and VESA size are absolute restrictions for the products and should not be exceeded.
Min. screen size*32- 55 inch
Min. weight0 - 30 kg
VESA minimum100x100 - 600x400 mm
Height adjustment44 cm
Depth adjustment6 cm
Tilt (degrees)21°
Warranty5 year

Product information

The Neomounts Pro menuboard wall mount, model NMPRO-WMB4, is a tiltable wall mount for four flat screens up to 55"/65". This mount is a great choice when you want the ultimate viewing flexibility with your flat screen. The Neomounts Pro tilt (0°/-6°/+15°) technology allows the mount to change to the best suitable viewing angle.

Neomounts Pro NMPRO WMB-series is suitable for 1 to 4 screens. The weight capacity of this product is 30 kg each screen. The wall mount is suitable for screens that meet VESA 100x100 to 400x400mm (65") or VESA 100x100 to 600x400mm (55"). Depth of this mount is 5,6 centimetres.

* All installation material is included with the product.

Product documentation

Download the available product documentation here. In case of any further questions please do not hesitate to contact our service & support desk by email: info@neomounts.com.

productsheet
Product sheet
manual
Manual
linedrawing

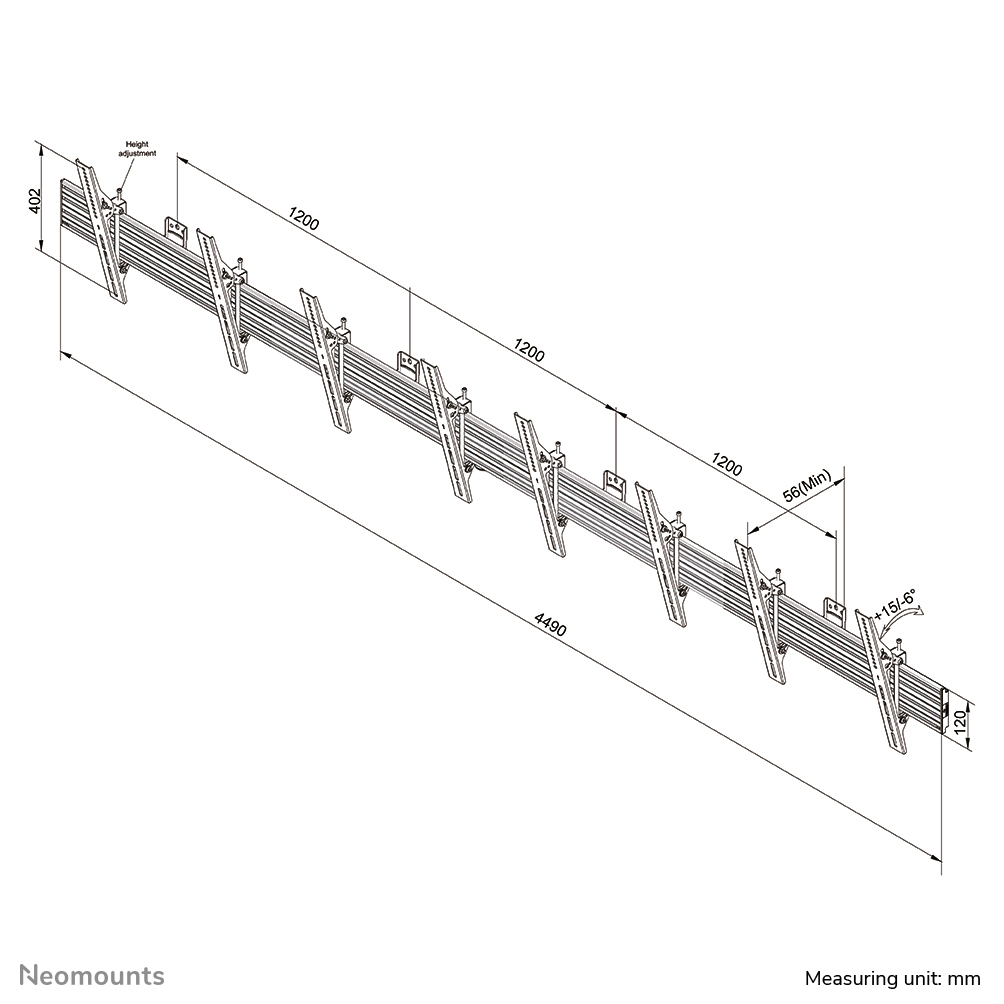

Line drawing
