WL55-875BL1 Neomounts by Newstar motorised wall mount

Neomounts by Newstar WL55-875BL1 motorised wall mount for 37-100" screens - Black
Colours:
Black
White

Variants:
FL55-875BL1

Tell a friend

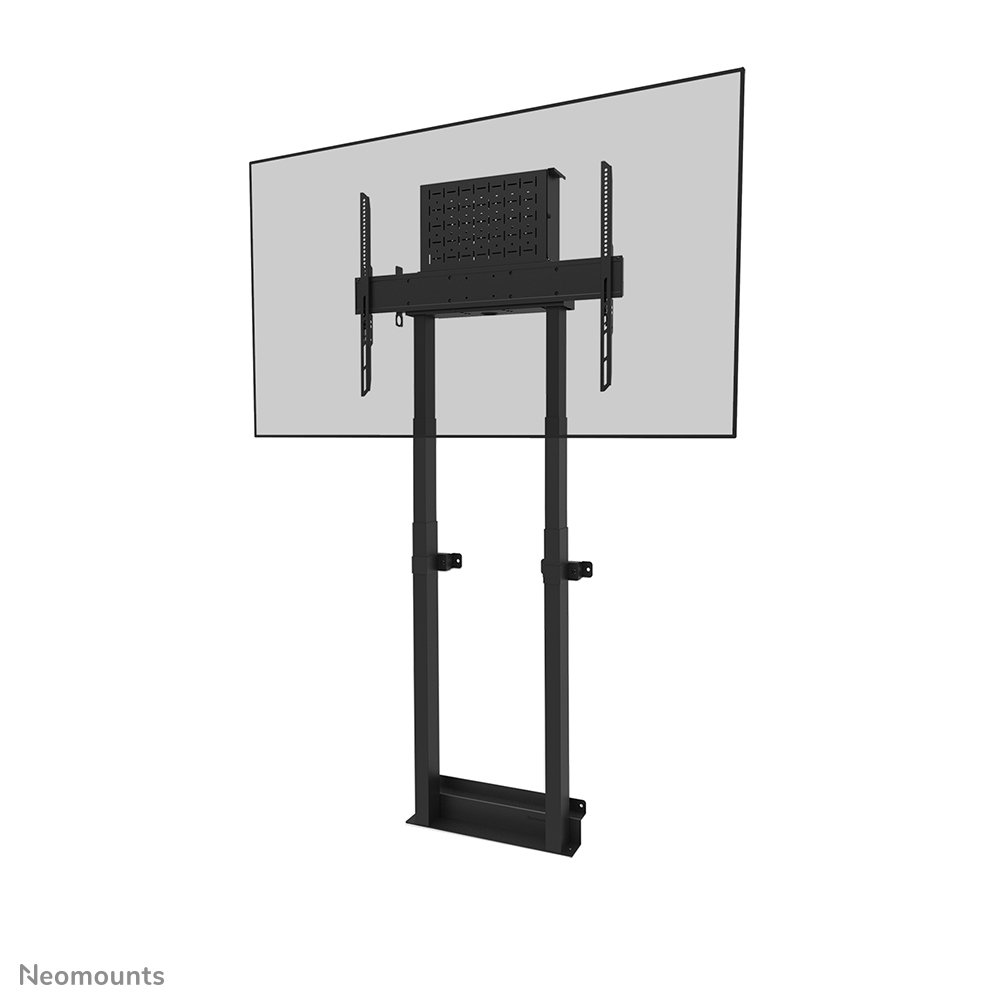

The Neomounts by Newstar WL55-875BL1 is a wall mount for displays up to 100" with a maximum weight capacity of 110 kg. The mount has 65 cm motorized height adjustment (35 mm/second), is operated with a wired remote control and features an anti-collision system for extra safety. A lockable, ventilated hardware compartment with cable opening is included and optional for installation. The floor plate of the mount, with space for floor baseboards, ensures solid and secure installation. The included cable duct, optional to install, conceal and route cables from wall mount to screen. The wall mount is packed partially pre-assembled, to ensure fast and easy installation and can be locked using a padlock (not included). Additionally, the WL55-875BL1 is compactly packed for optimized transportation and storage. The AFL-875BL1 videobar & multimedia kit is optionally available and enables the installation of a separate cam shelf and multimedia device shelf to the trolley. Included to the kit is an adapter for the Logitech Rally Bar (Mini). In addition, the multimedia shelf is suitable for installation of i.a. the Logitech Tap.
Read more

SpecificationsProduct informationProduct documentationAccessories

Specifications

General
Min. screen size*
:
37 inch
Max. screen size*
:
100 inch
Max. weight
:
110 kg
Screens
:
1
VESA pattern
:
100x100, 100x150, 100x200, 120x120, 200x100, 200x200, 200x300, 200x400, 300x100, 300x200, 300x300, 350x350, 400x200, 400x300, 400x400, 400x500, 400x600, 440x400, 500x400, 600x200, 600x300, 600x400, 600x500, 600x600, 680x300, 800x200, 800x400, 800x500, 800x600 mm
VESA minimum
:
100x100 mm
VESA maximum
:
800x600 mm
Distance to wall
:
17,2 cm

Functionality
Type
:
Fixed

Height adjustment
:
98-163 cm

Height
:
200,4 cm

Width
:
88,8 cm

Adjustment type
:
Motorised

Depth
:
17,2 cm

Lockable
:
Lockable - Lock not included


Information
Article number
:
WL55-875BL1

EAN
:
8717371449735

Color
:
Black

Main material
:
Steel

Warranty
:
5 year


*Please note: The inch sizes stated are just an indication, combined with the weight and VESA sizes. The maximum weight and VESA size are absolute restrictions for the products and should not be exceeded.
Min. screen size*37- 100 inch
VESA minimum100x100 - 800x600 mm
Distance to wall17,2 cm
Height200,4 cm

Product information

The Neomounts by Newstar WL55-875BL1 is a wall mount for displays up to 100" with a maximum weight capacity of 110 kg. The mount has 65 cm motorized height adjustment (35 mm/second), is operated with a wired remote control and features an anti-collision system for extra safety. A lockable, ventilated hardware compartment with cable opening is included and optional for installation.

The floor plate of the mount, with space for floor baseboards, ensures solid and secure installation. The included cable duct, optional to install, conceal and route cables from wall mount to screen.

The wall mount is packed partially pre-assembled, to ensure fast and easy installation and can be locked using a padlock (not included). Additionally, the WL55-875BL1 is compactly packed for optimized transportation and storage.

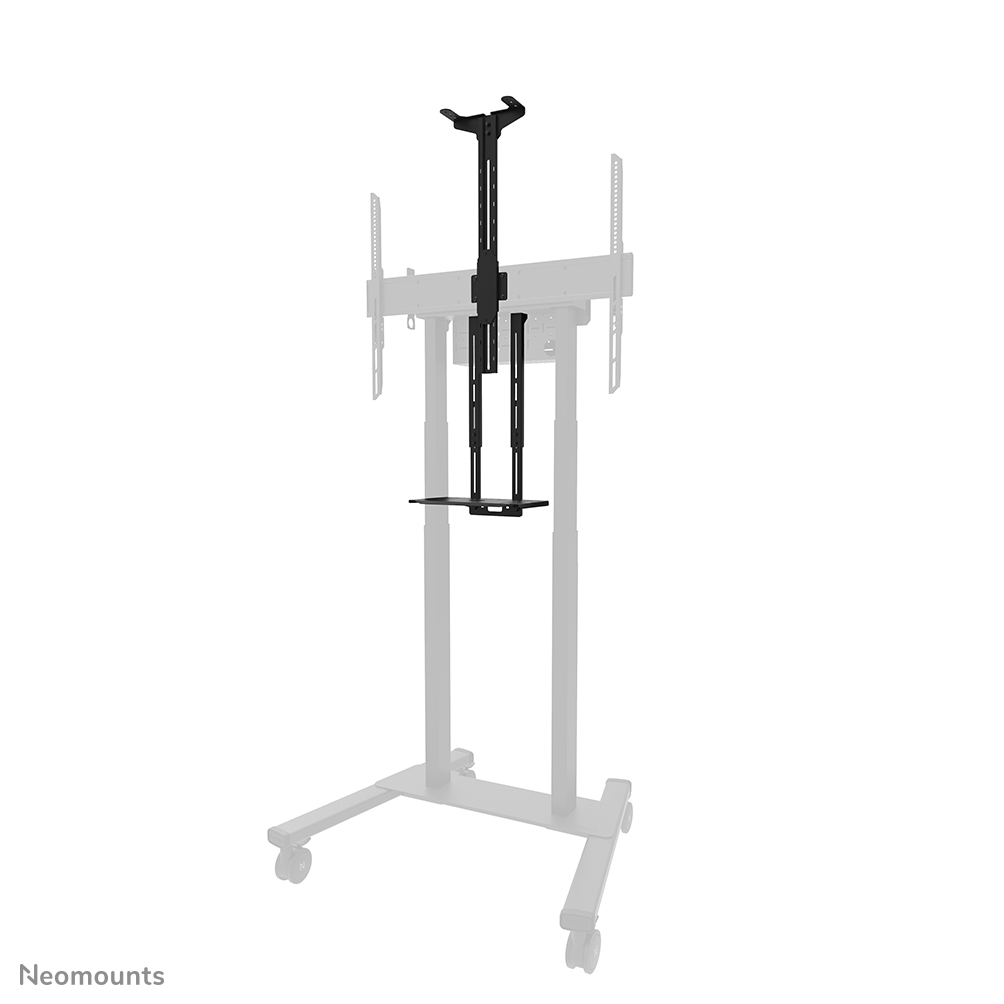

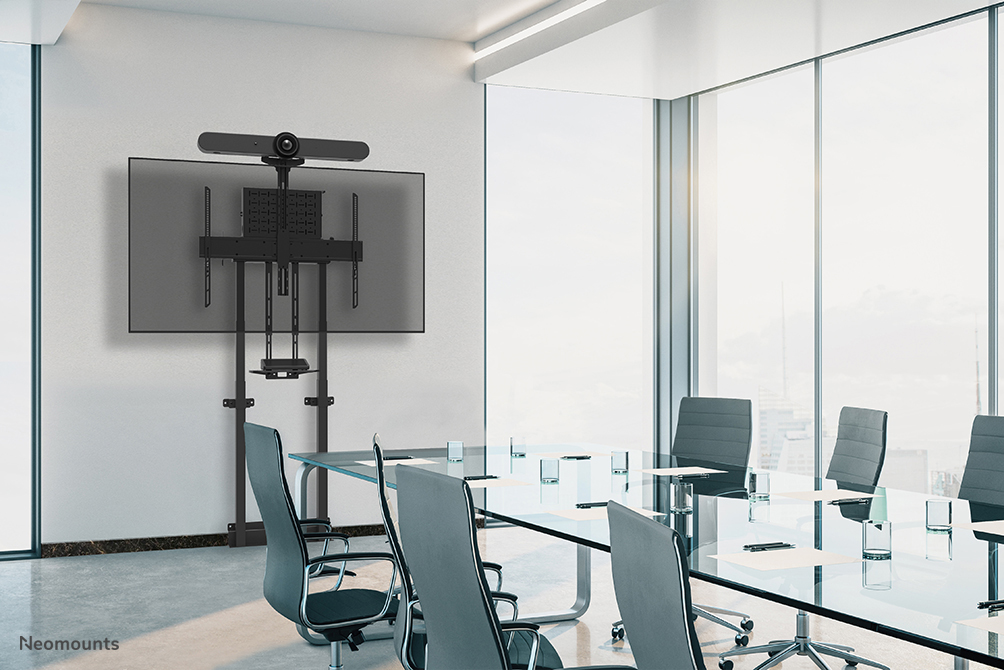

The AFL-875BL1 videobar & multimedia kit is optionally available and enables the installation of a separate cam shelf and multimedia device shelf to the trolley. Included to the kit is an adapter for the Logitech Rally Bar (Mini). In addition, the multimedia shelf is suitable for installation of i.a. the Logitech Tap.

Product documentation

Download the available product documentation here. In case of any further questions please do not hesitate to contact our service & support desk by email: info@neomounts.com.

productsheet
Product sheet
manual
Manual
linedrawing
Line drawing
