DS70-810BL2 Neomounts by Newstar monitor arm desk mount
Neomounts by Newstar DS70-810BL2 full motion Monitor Arm Desk Mount for 17-32" screens - Black

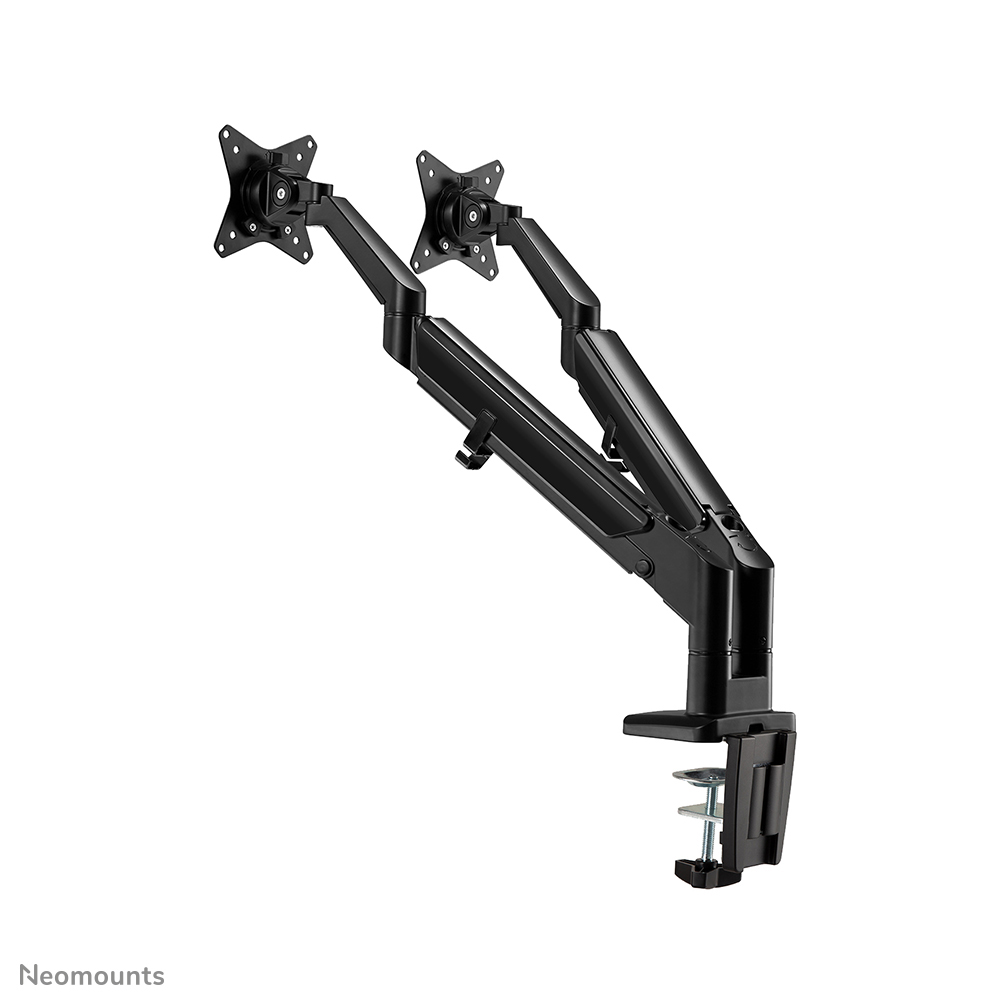

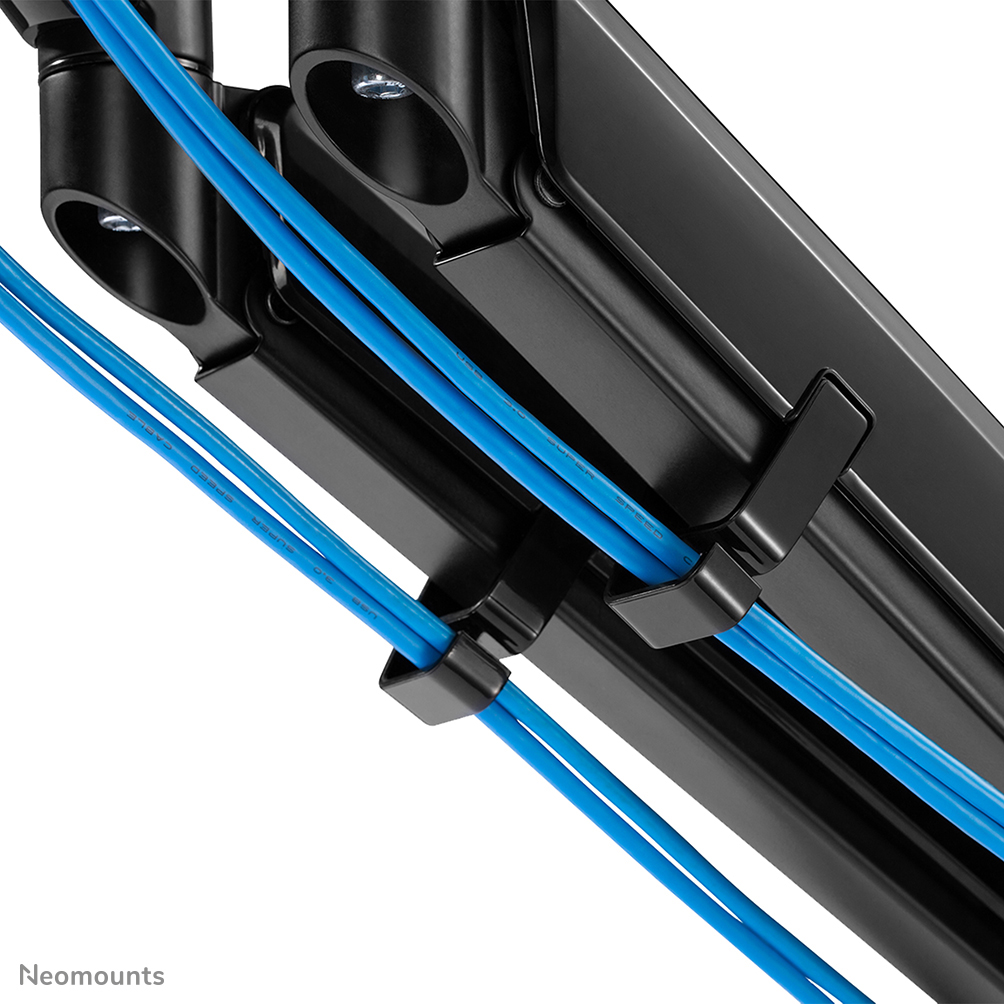

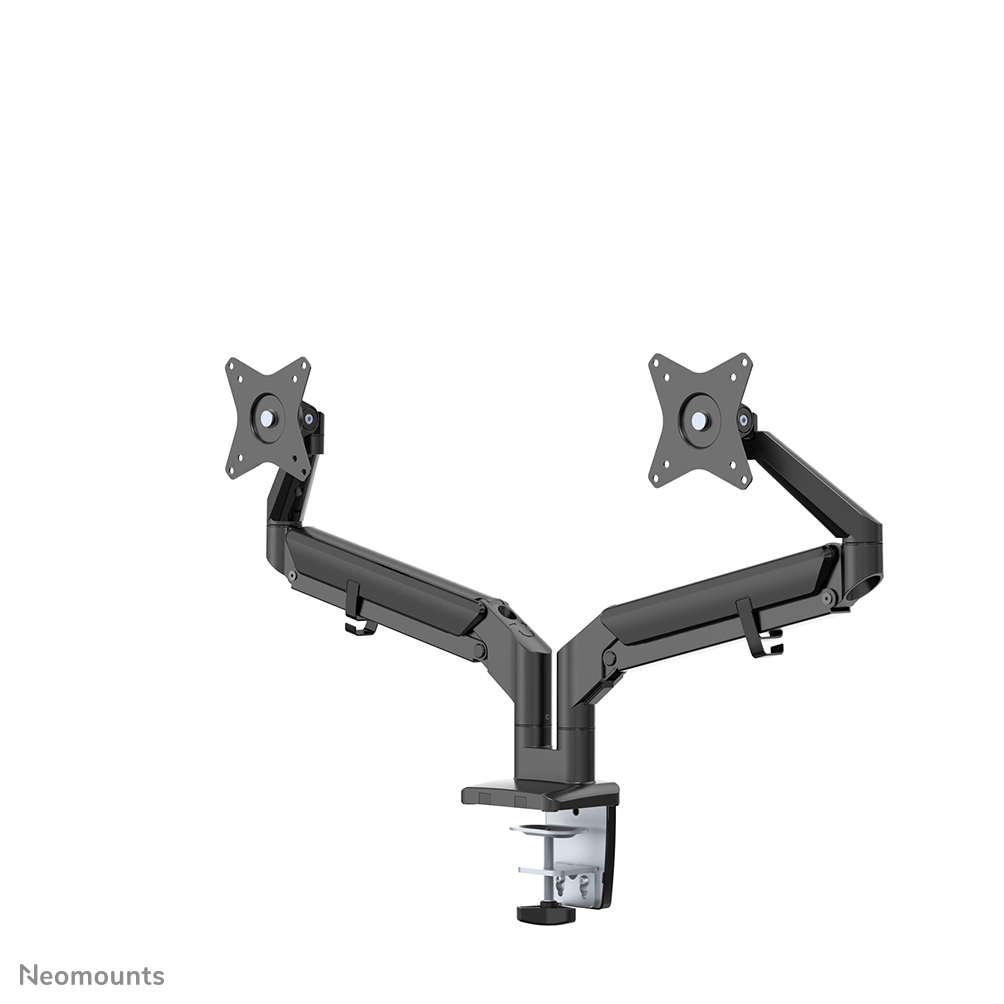

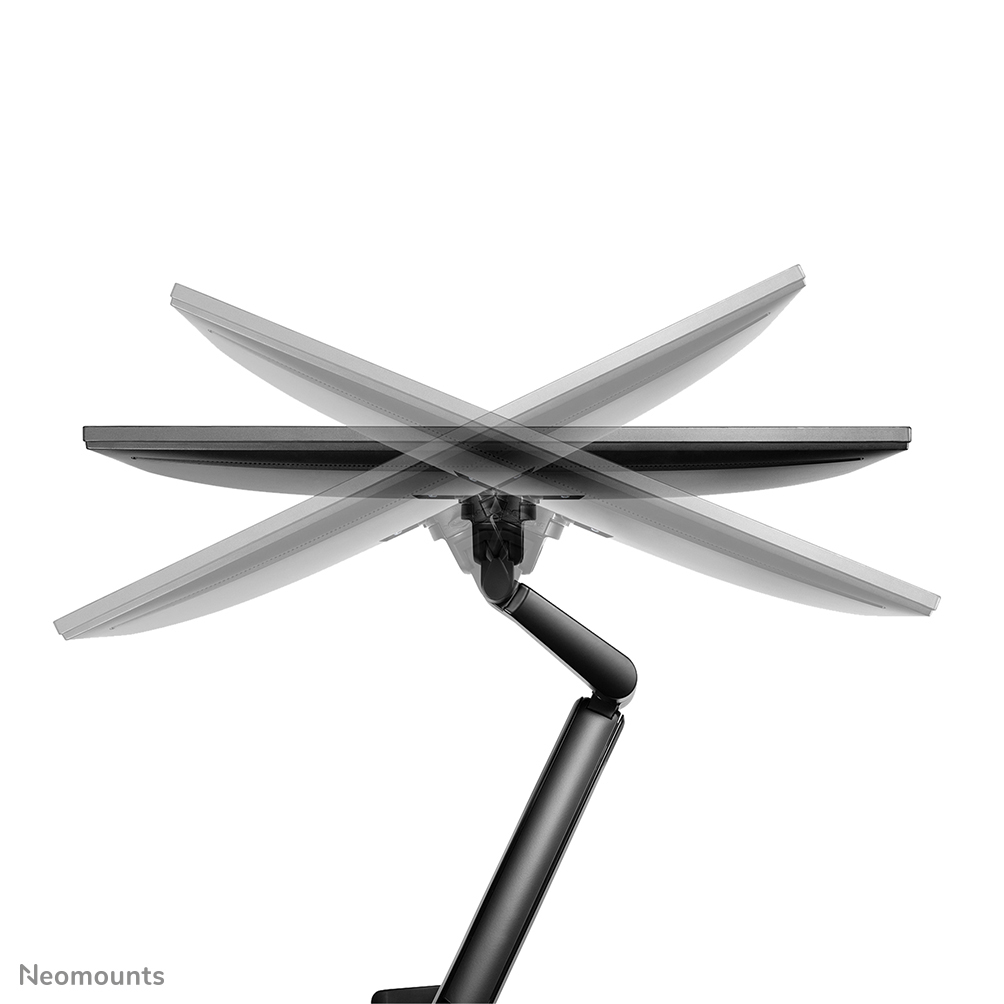

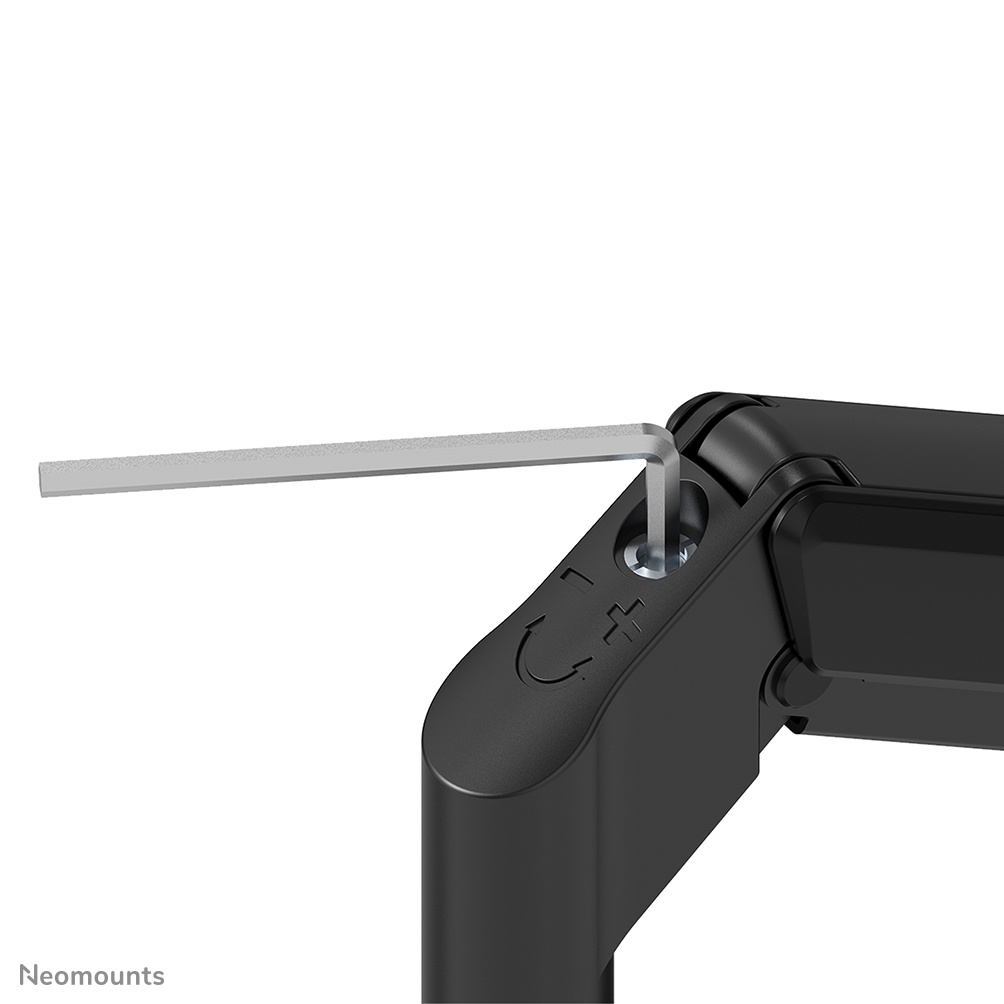

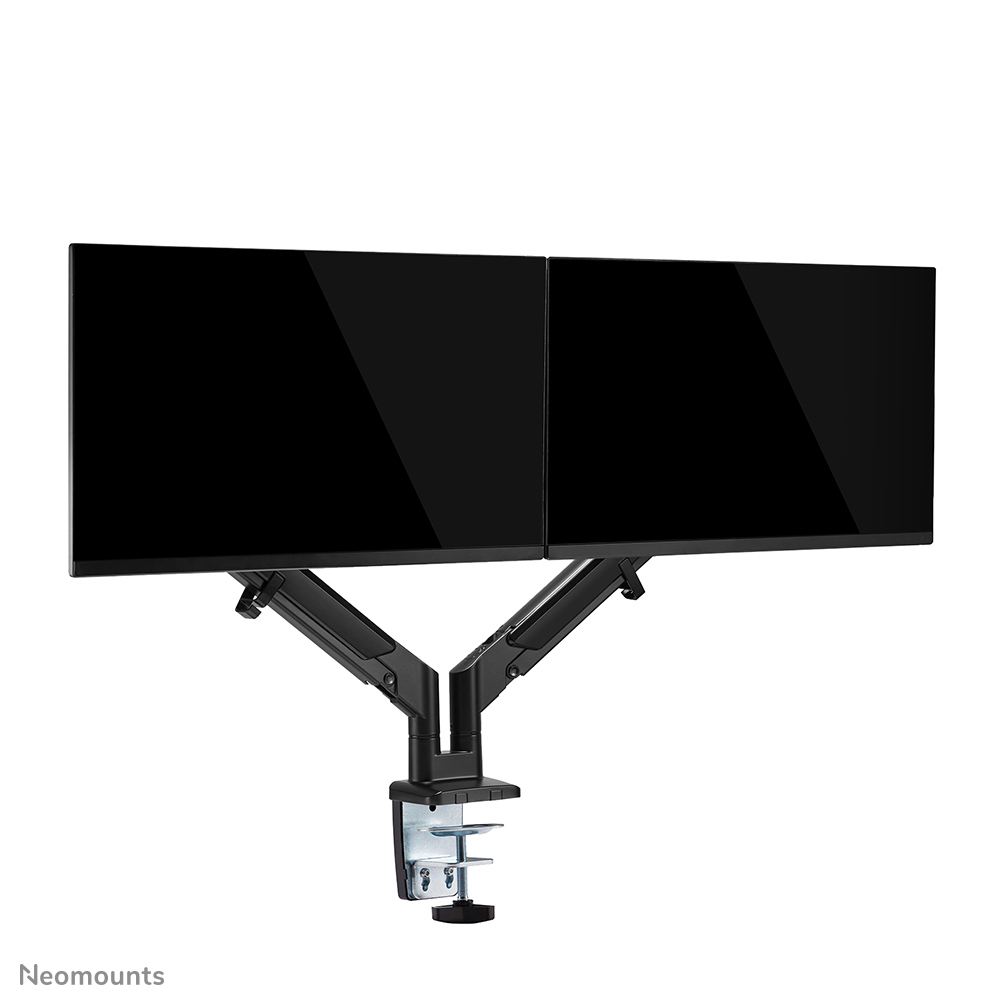

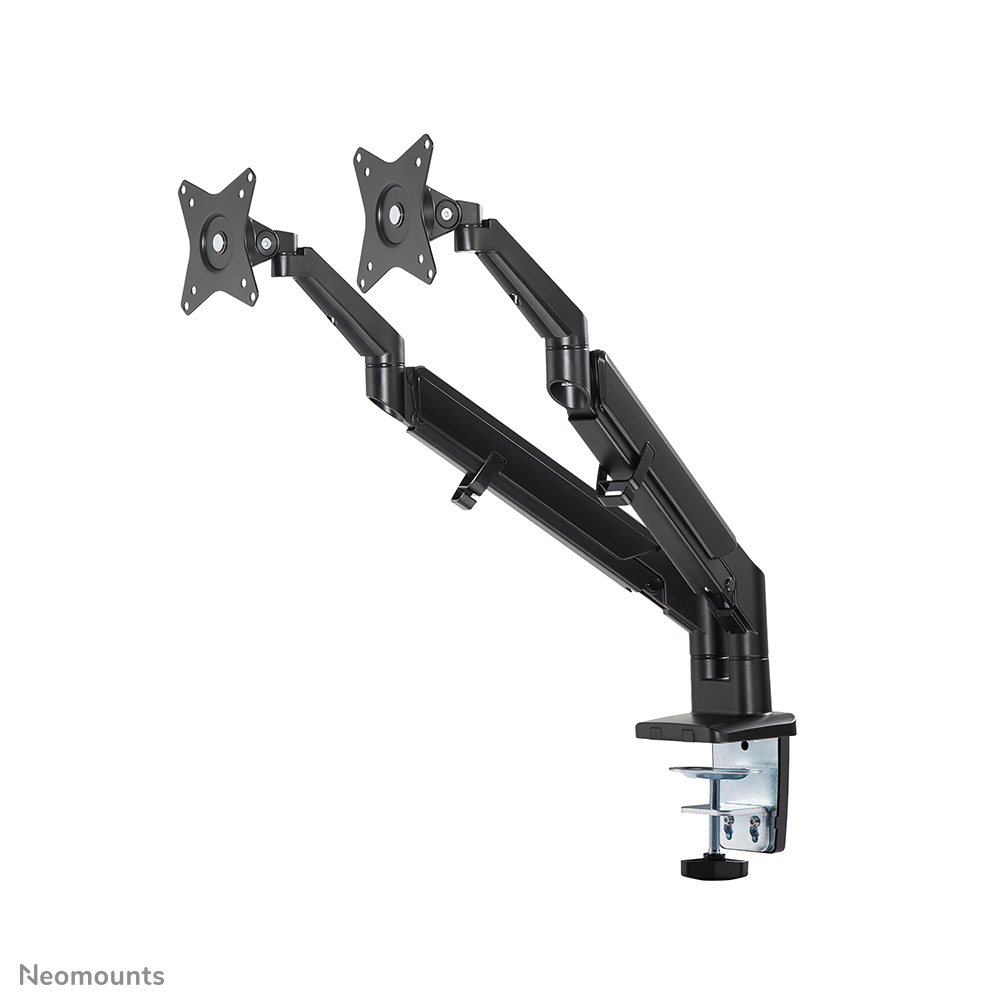

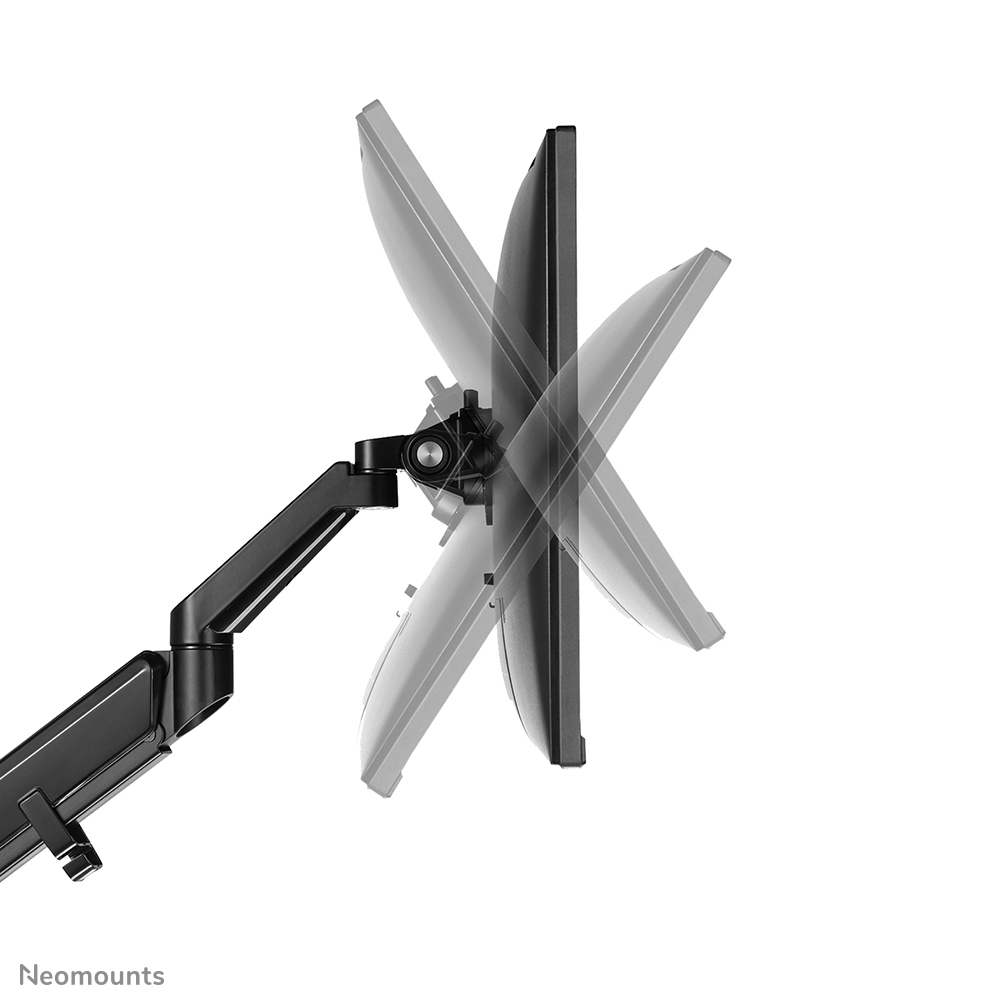

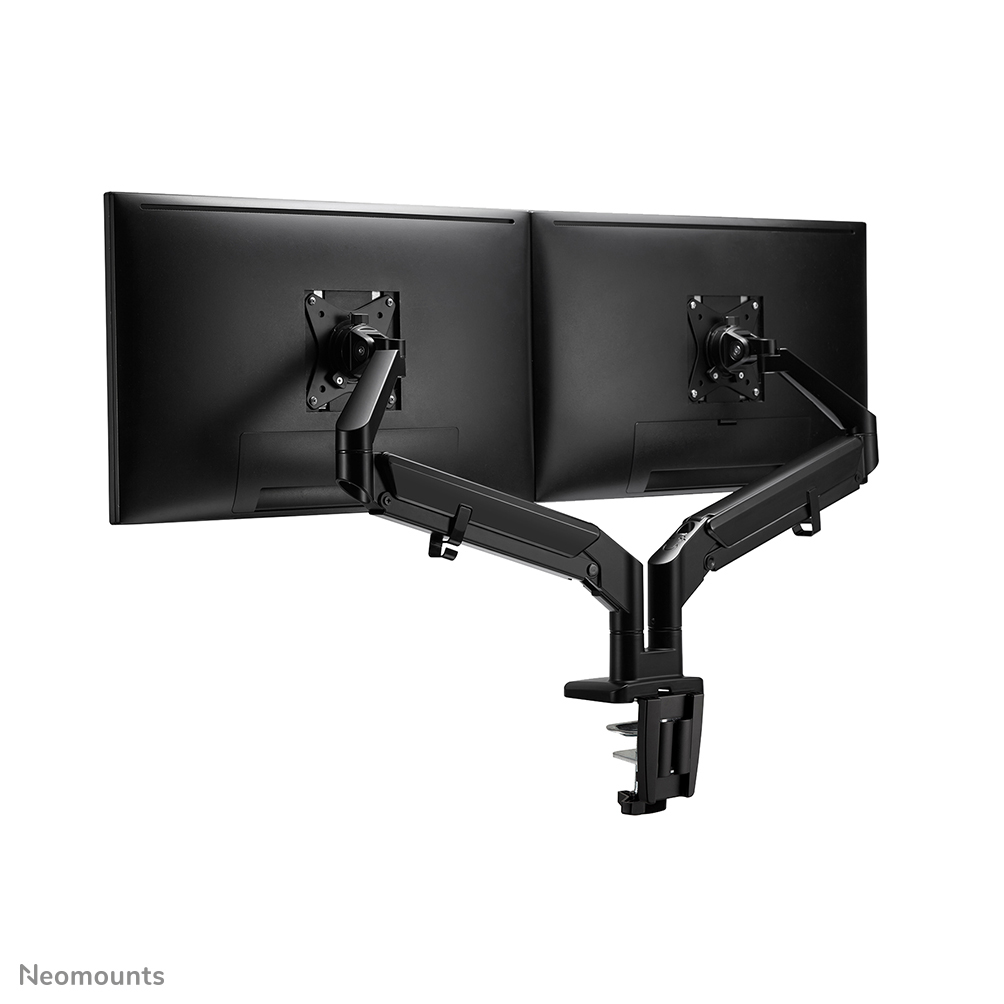

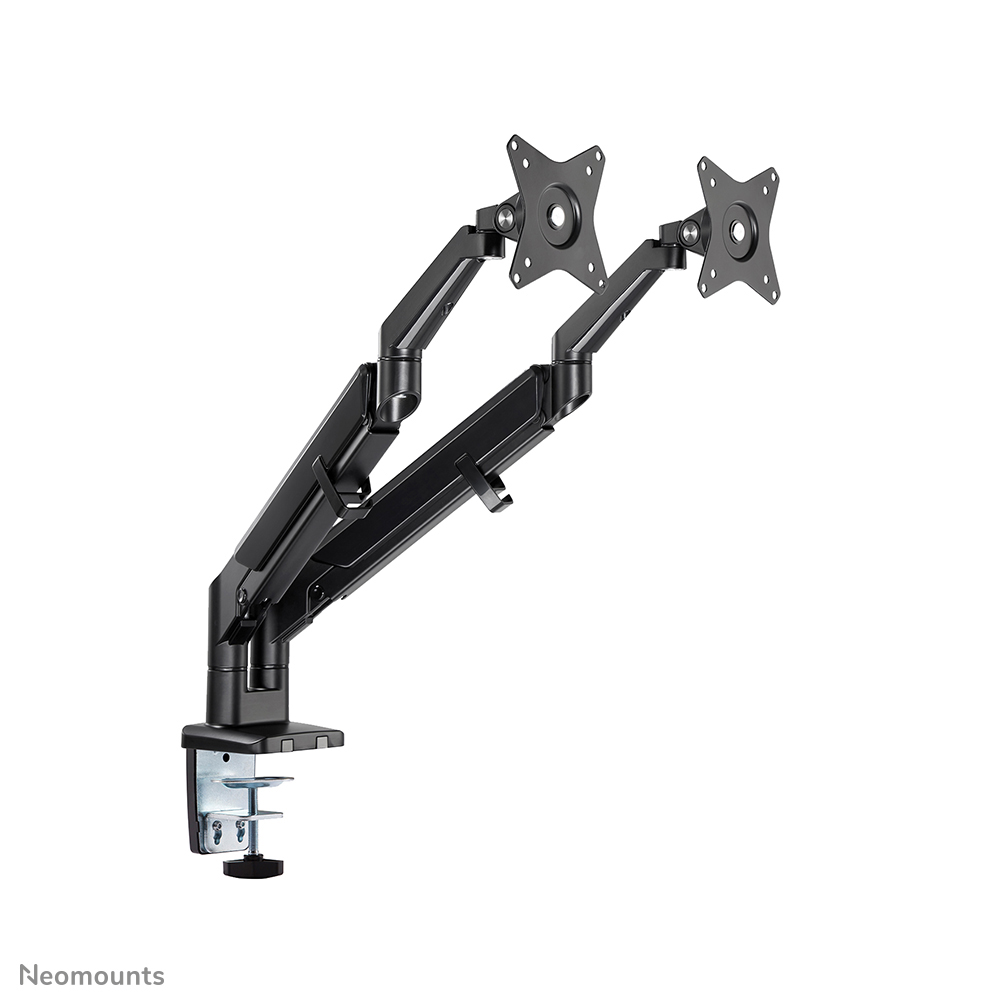

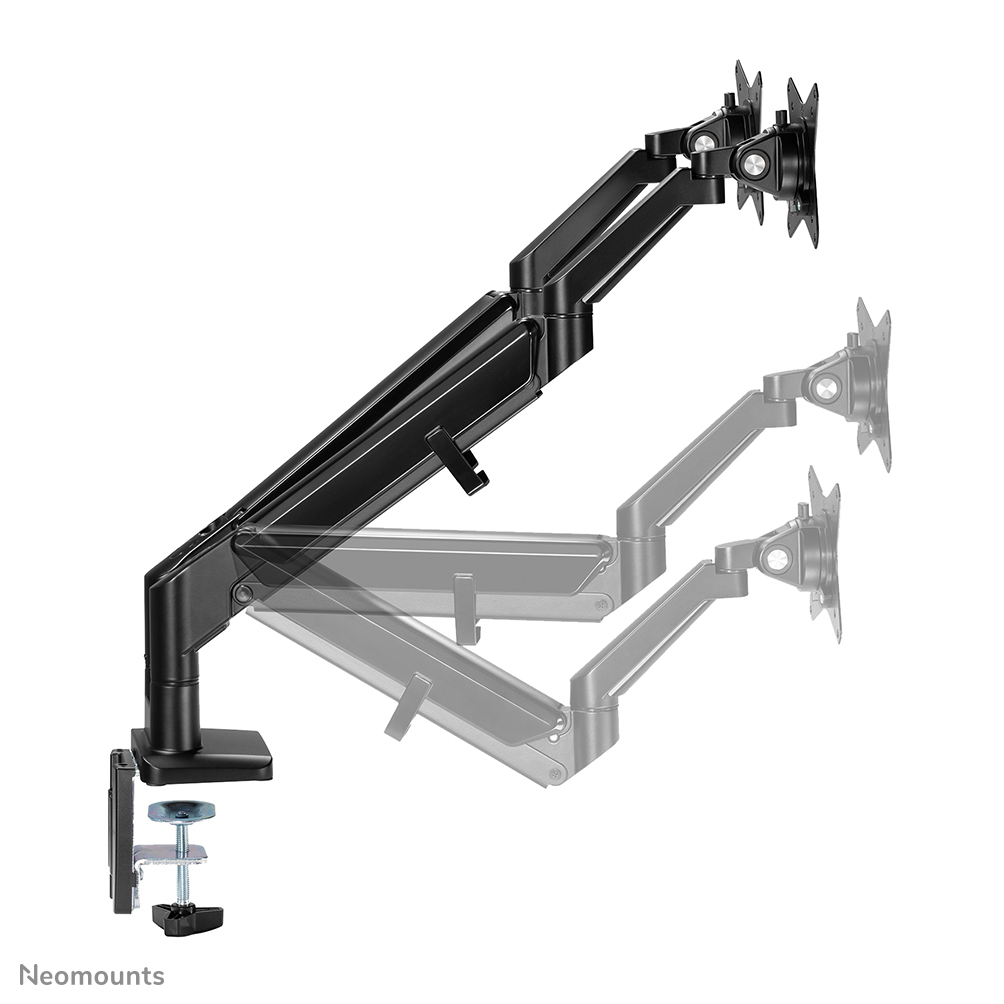

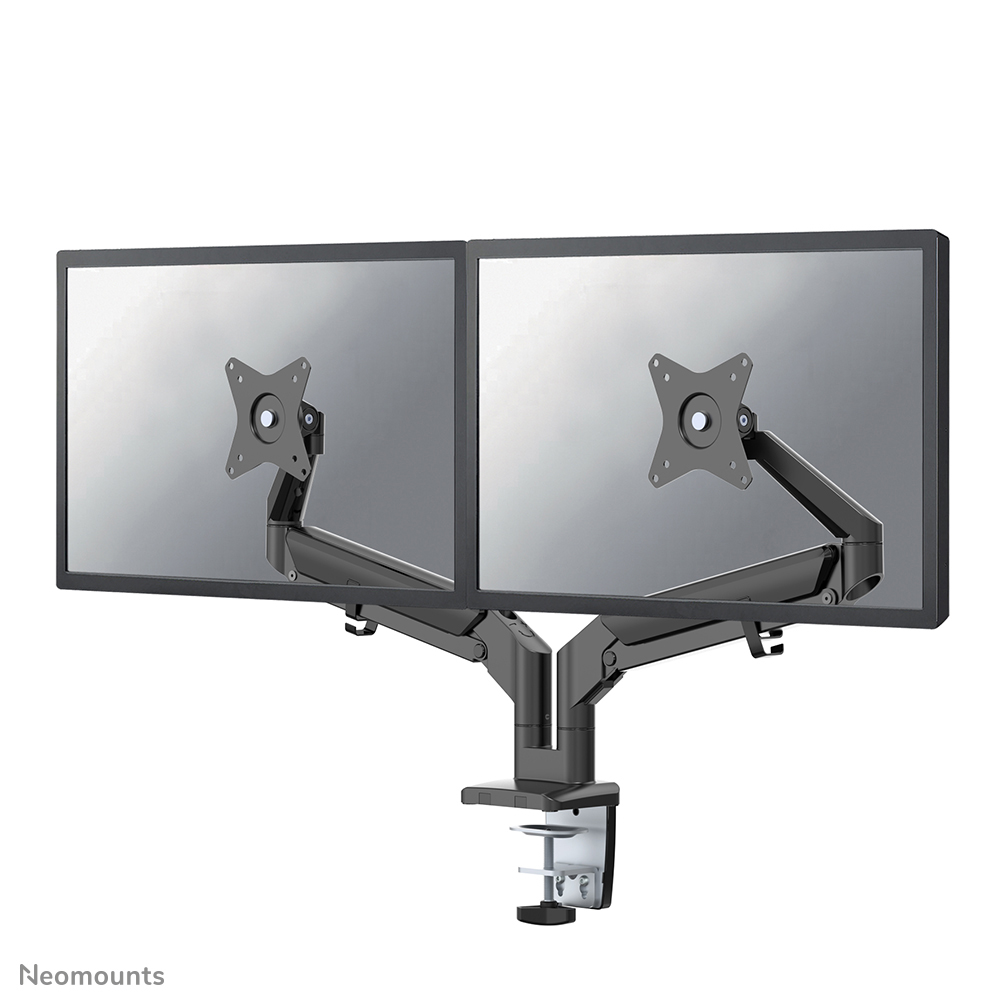

The Neomounts by Newstar DS70-810BL2 is a full motion desk mount for two flat screens up to 32" with a maximum weight capacity of 9 kg per screen. The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of your screens. Additionally, the mount features gas spring height adjustment (26,5-55 cm) and depth adjustment (0-49 cm), to create the perfect working position. Additionally, the DS70-810BL2 features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact. The smart cable management clips ensure orderly routing of the cables.

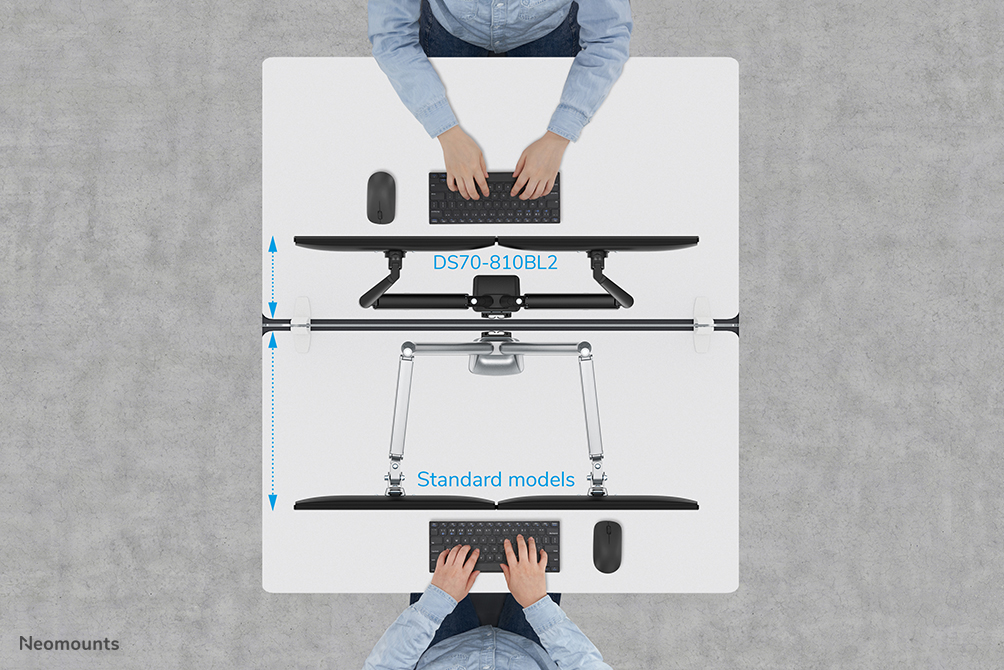

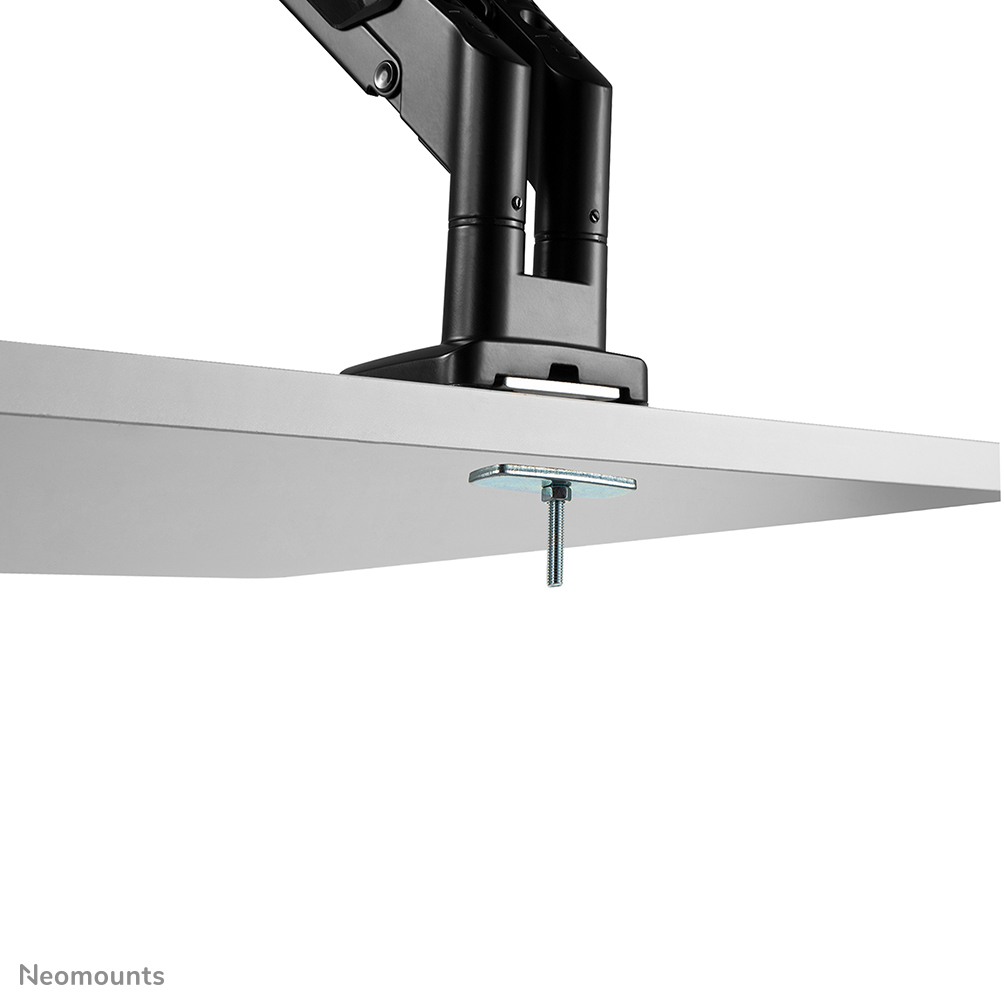

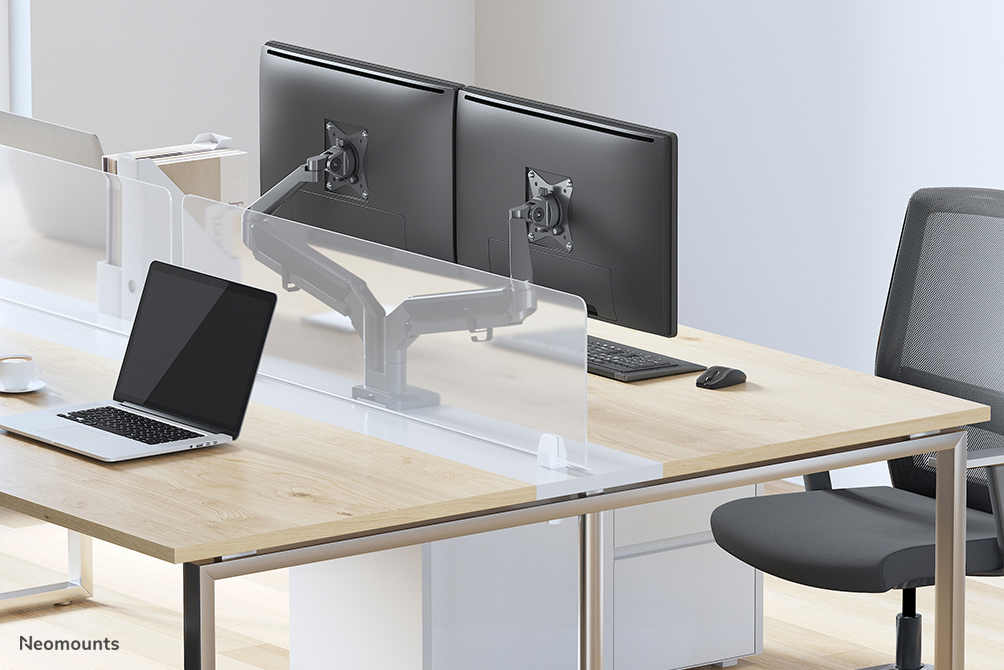

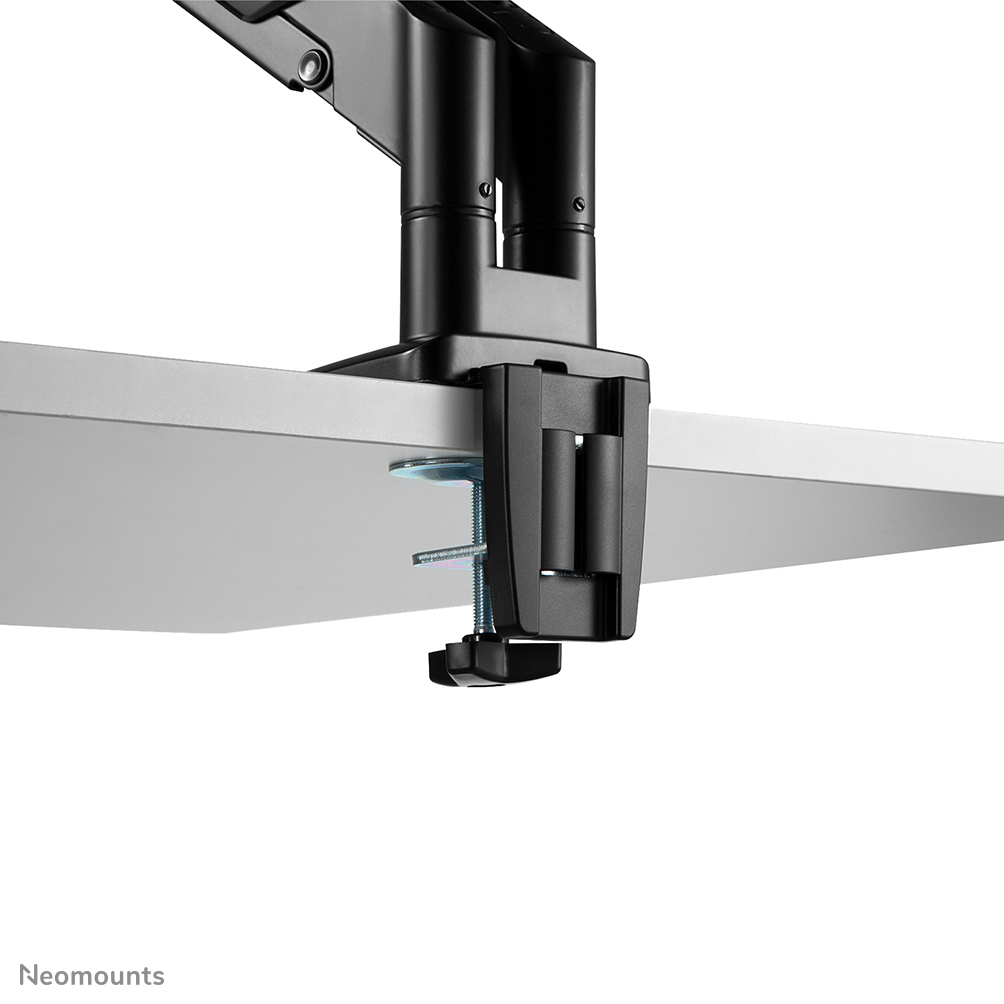

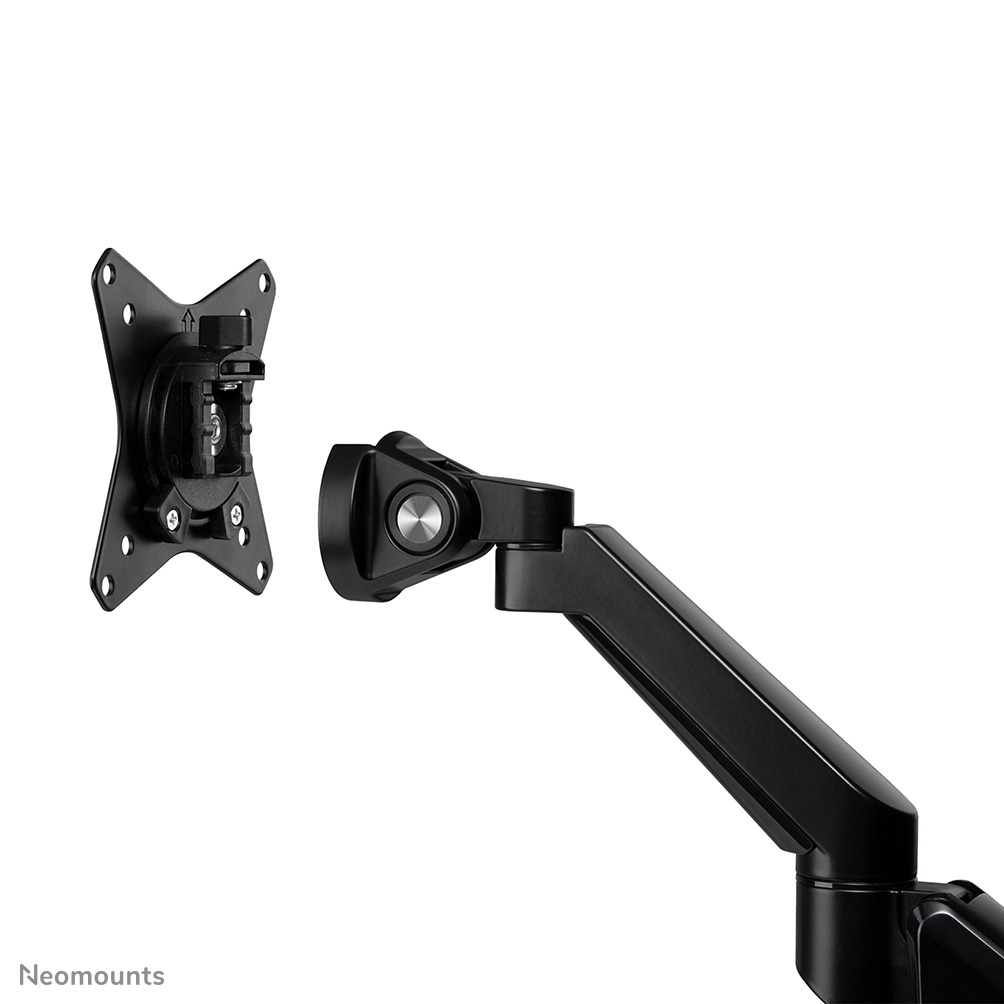

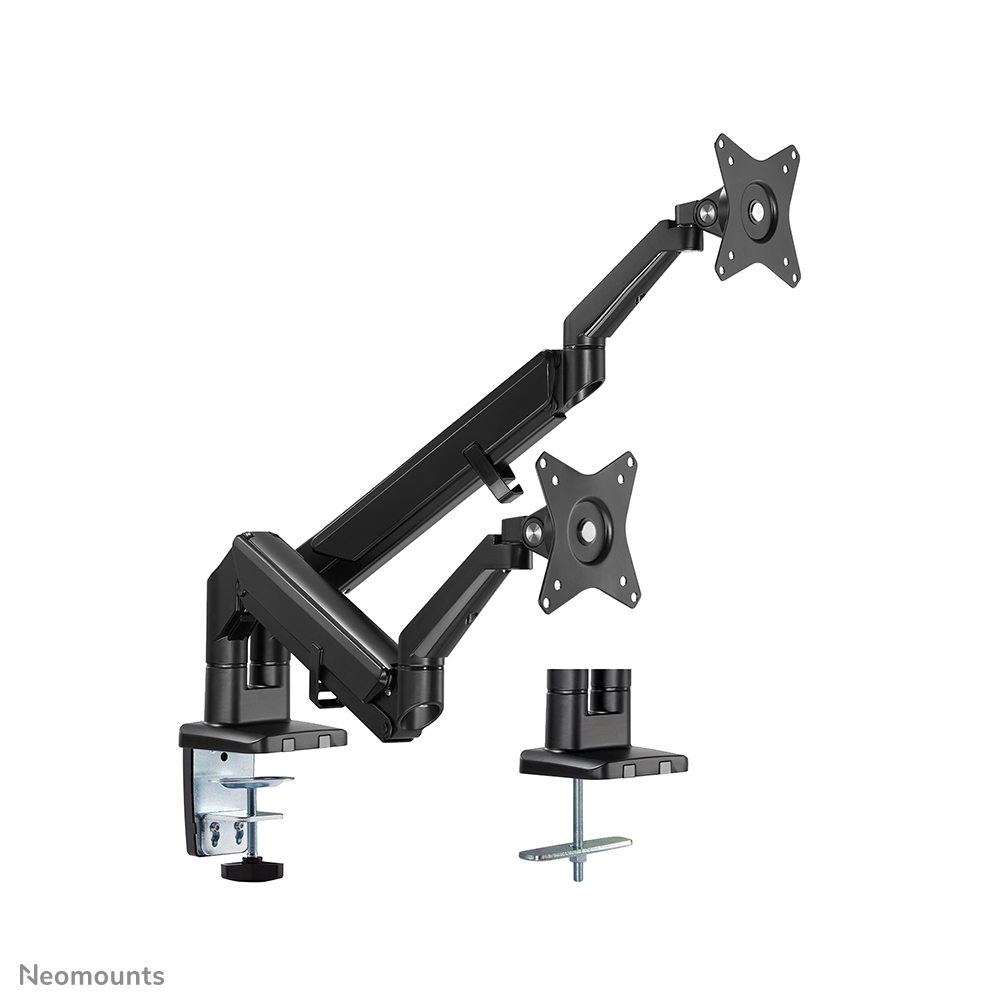

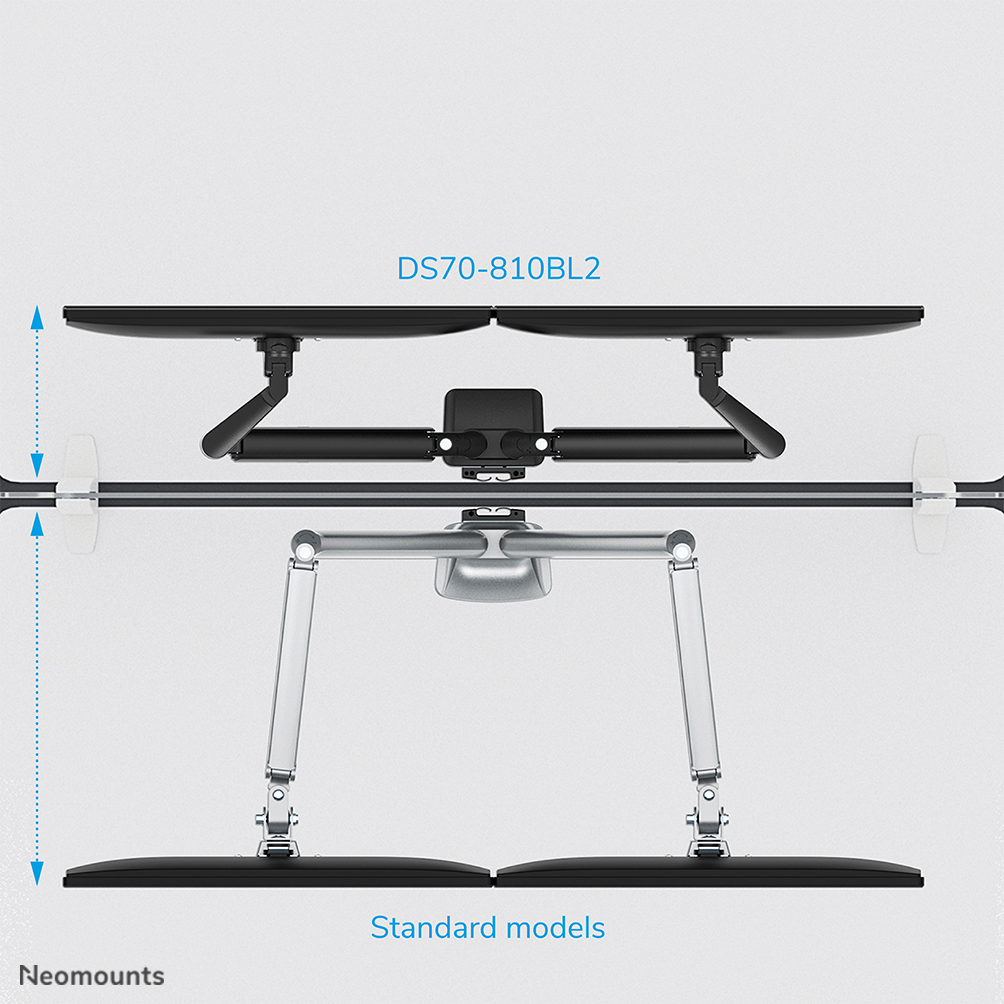

Due to the short T-Rex® upper arm, only minimal depth is required when placed near a wall or separation panel. The DS70-810BL2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Unused hole patterns can be covered using one of Neomounts by Newstar's VESA adapter plates. The DS70-810BL2 is equipped with an Quick-release VESA system for easy installation and comes with both desk clamp and grommet.
Read more

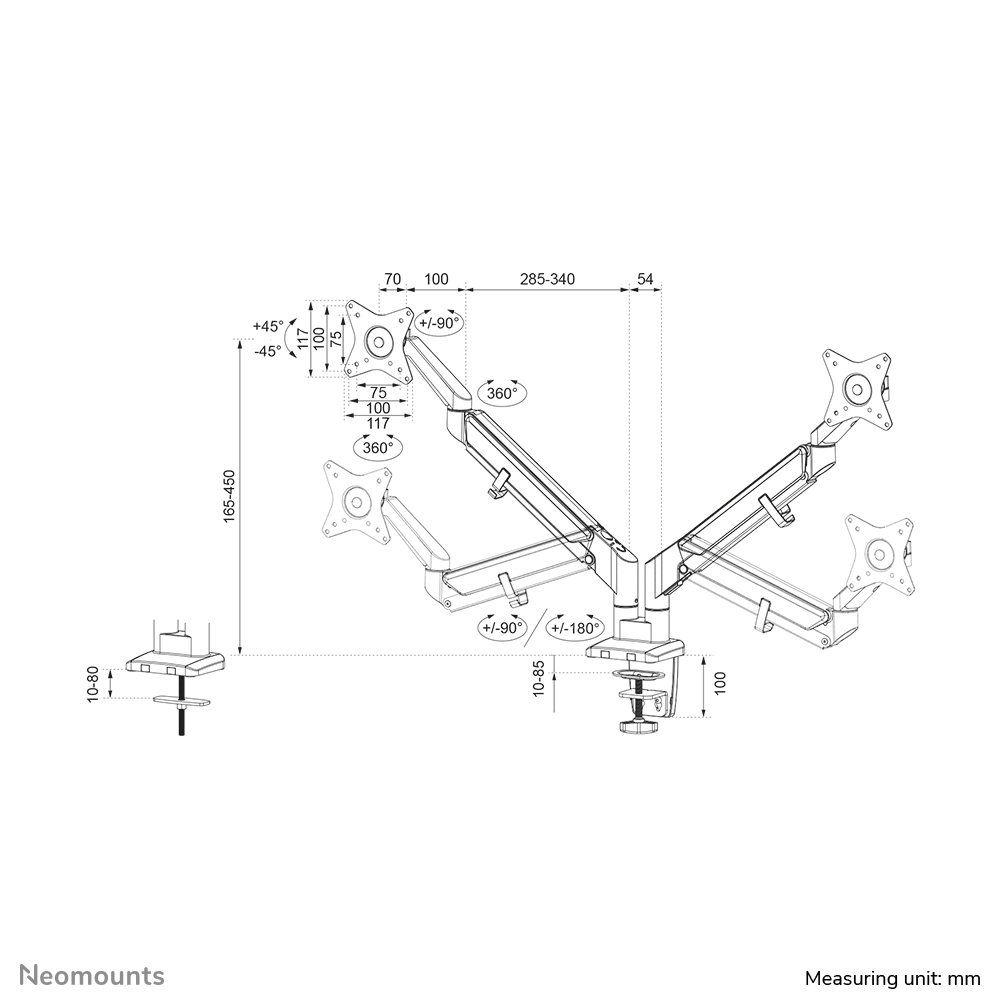

Specifications
General
Min. screen size*
: 17
inch
Max. screen size*
: 32
inch
Min. weight
: 1
kg (per screen)
Max. weight
: 9
kg (per screen)
VESA pattern
: 75x75, 100x100
mm
Desk mount
: Grommet, Clamp
FunctionalityType
: Full motion
Height adjustment
: 26,5-55 cm
Width adjustment
: 0-107 cm
Depth adjustment
: 0-49 cm
Tilt (degrees)
: +45°, -45°
Swivel (degrees)
: +90°, -90°
Rotate (degrees)
: +180°, -180°
Height
: 61,5 cm
Width
: 11,7 cm
Adjustment type
: Gas spring
Depth
: 55,5 cm
InformationArticle number
: DS70-810BL2
EAN
: 8717371449223
Color
: Black
Main material
: Steel
Warranty
: 5 year
*Please note: The inch sizes stated are just an indication, combined with the weight and VESA sizes. The maximum weight and VESA size are absolute restrictions for the products and should not be exceeded.
17- 32 inch
1 - 9 kg
75x75
- 100x100 mm
+45°, -45°
+90°, -90°
+180°, -180°
61,5 cm
Product information
The Neomounts by Newstar DS70-810BL2 is a full motion desk mount for two flat screens up to 32" with a maximum weight capacity of 9 kg per screen. The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of your screens. Additionally, the mount features gas spring height adjustment (26,5-55 cm) and depth adjustment (0-49 cm), to create the perfect working position. Additionally, the DS70-810BL2 features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact. The smart cable management clips ensure orderly routing of the cables.
Due to the short T-Rex® upper arm, only minimal depth is required when placed near a wall or separation panel. The DS70-810BL2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Unused hole patterns can be covered using one of Neomounts by Newstar's VESA adapter plates. The DS70-810BL2 is equipped with an Quick-release VESA system for easy installation and comes with both desk clamp and grommet.
Product documentation
Download the available product documentation here. In case of any further questions please do not hesitate to contact our service & support desk by email: info@neomounts.com.
