WL30S-950BL19 Neomounts Select heavy duty TV wall mount

Neomounts Select WL30S-950BL19 fixed wall mount for 55-110" screens - Black
Variants:
WL35S-950BL19
WL40S-950BL18

Tell a friend

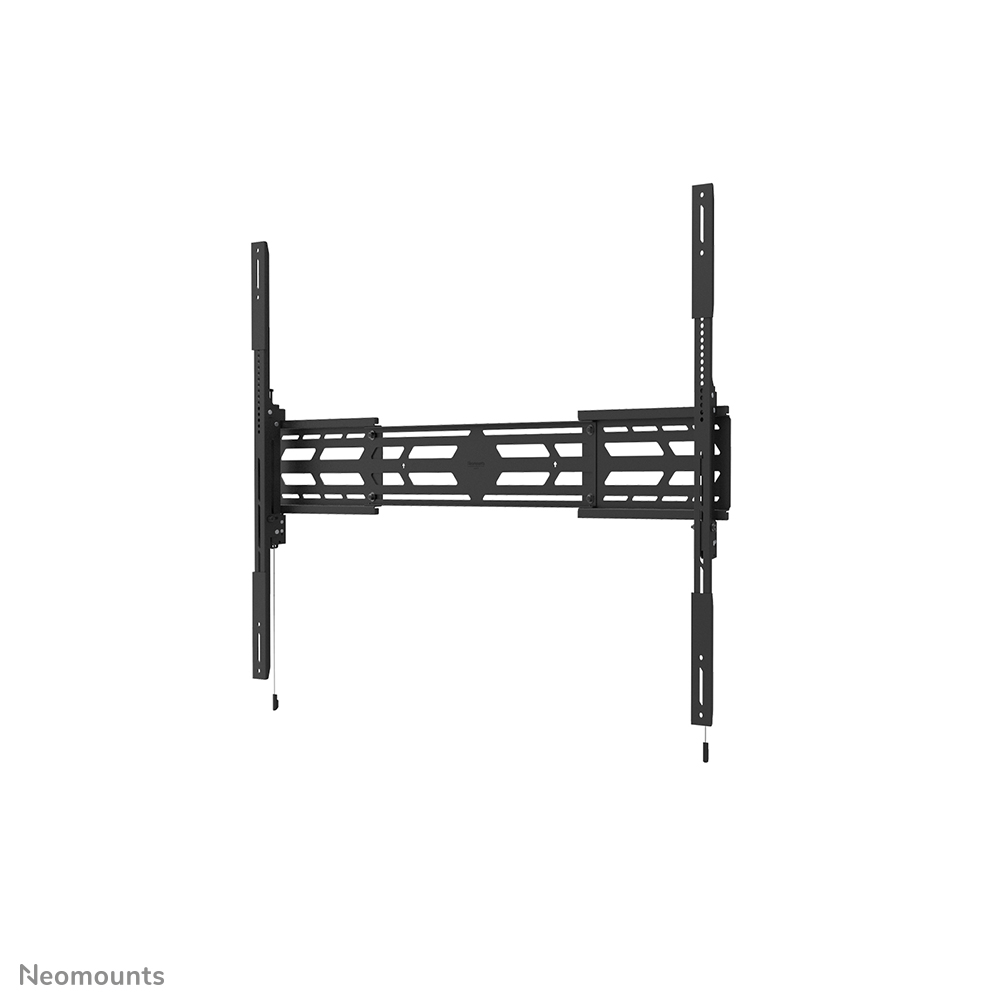

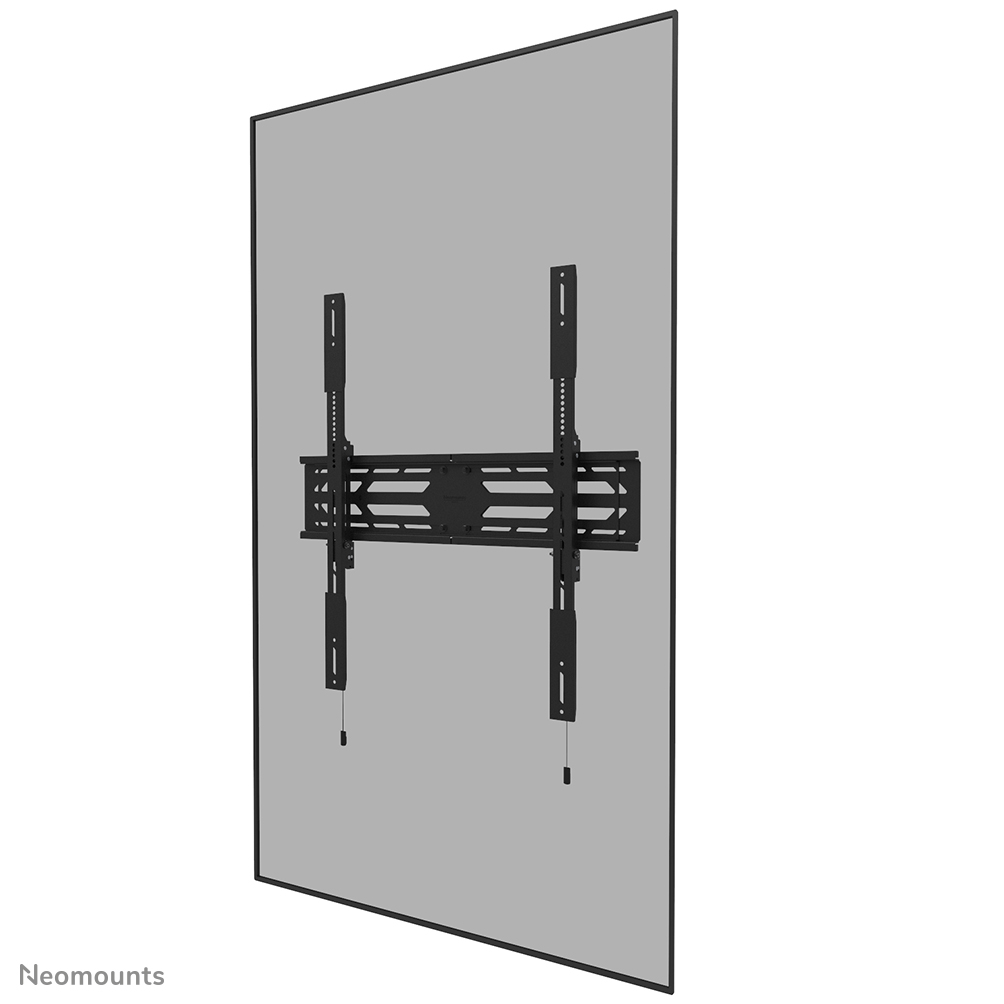

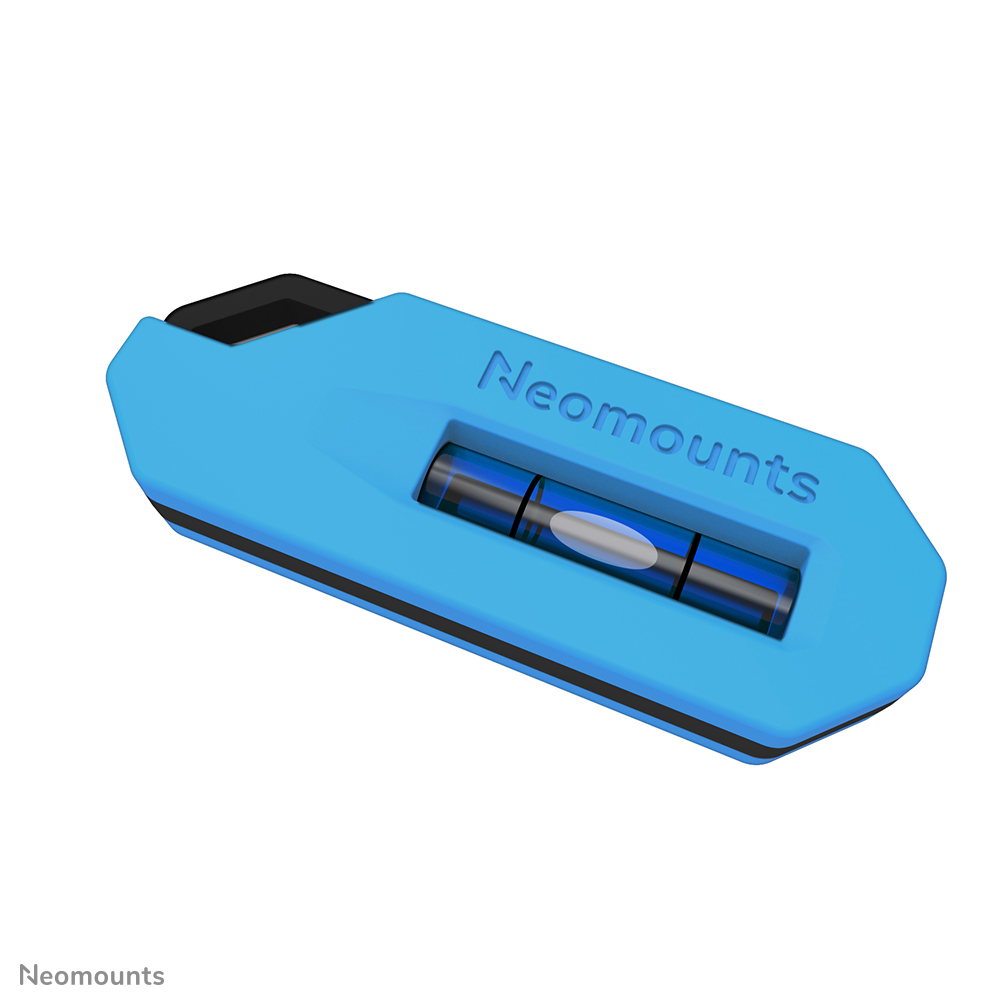

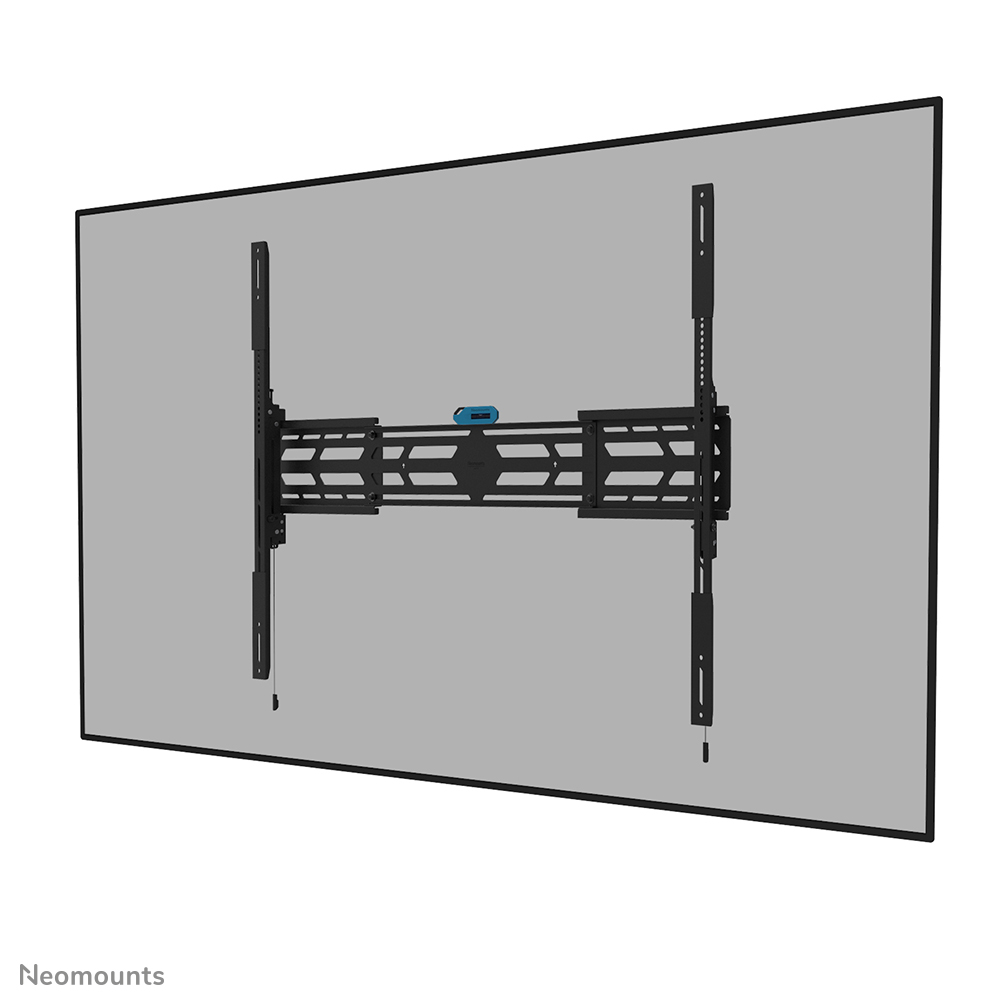

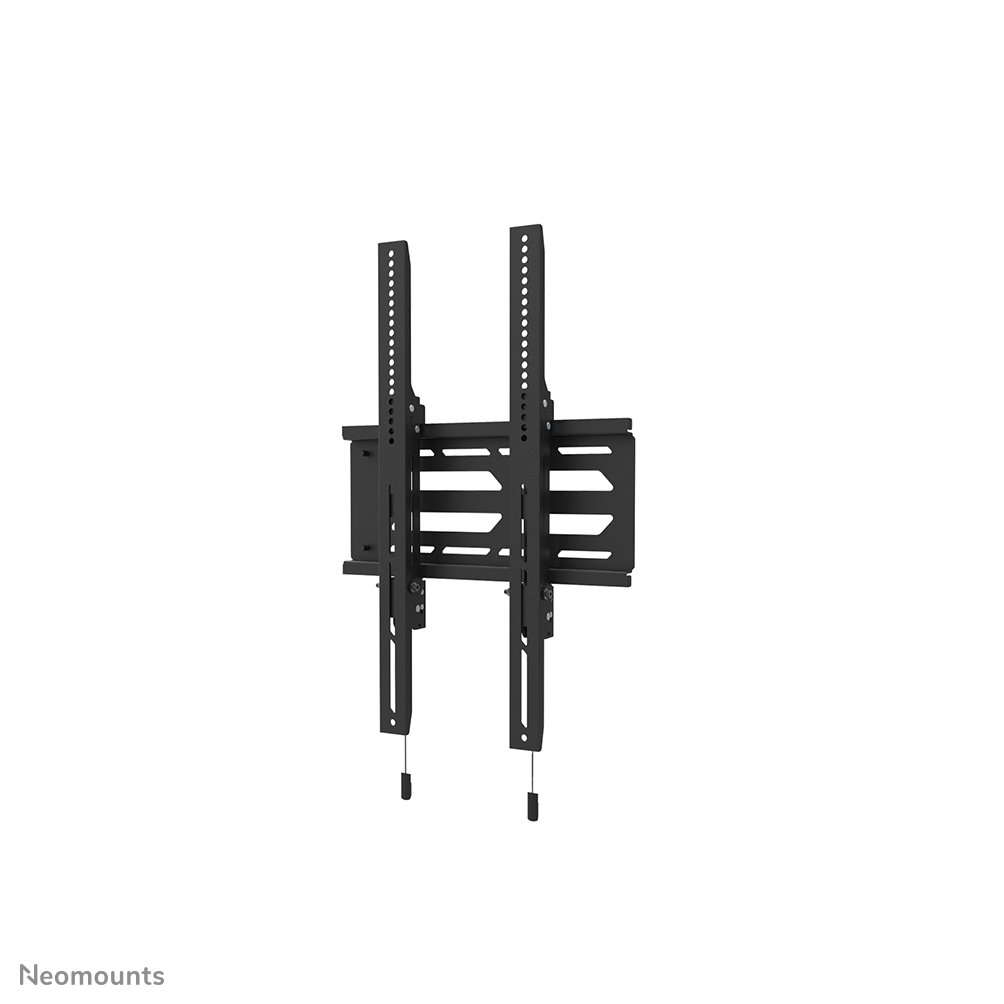

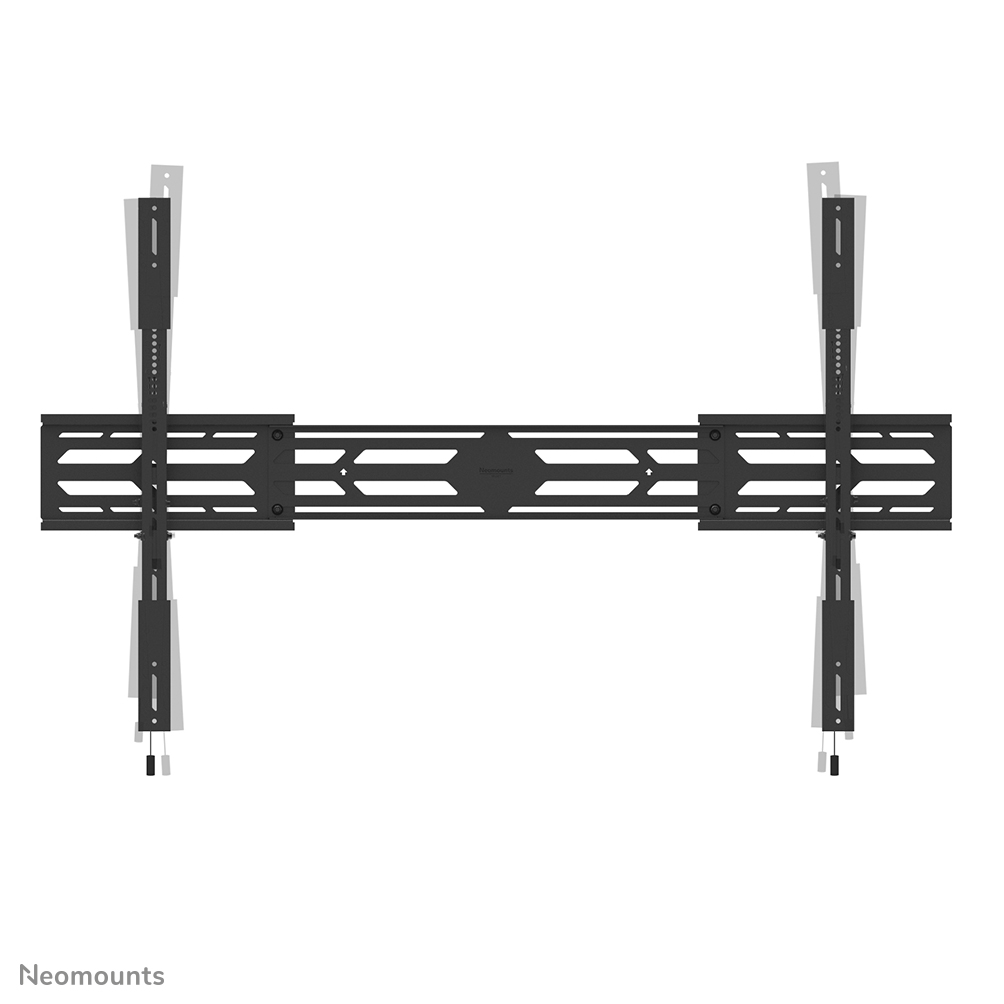

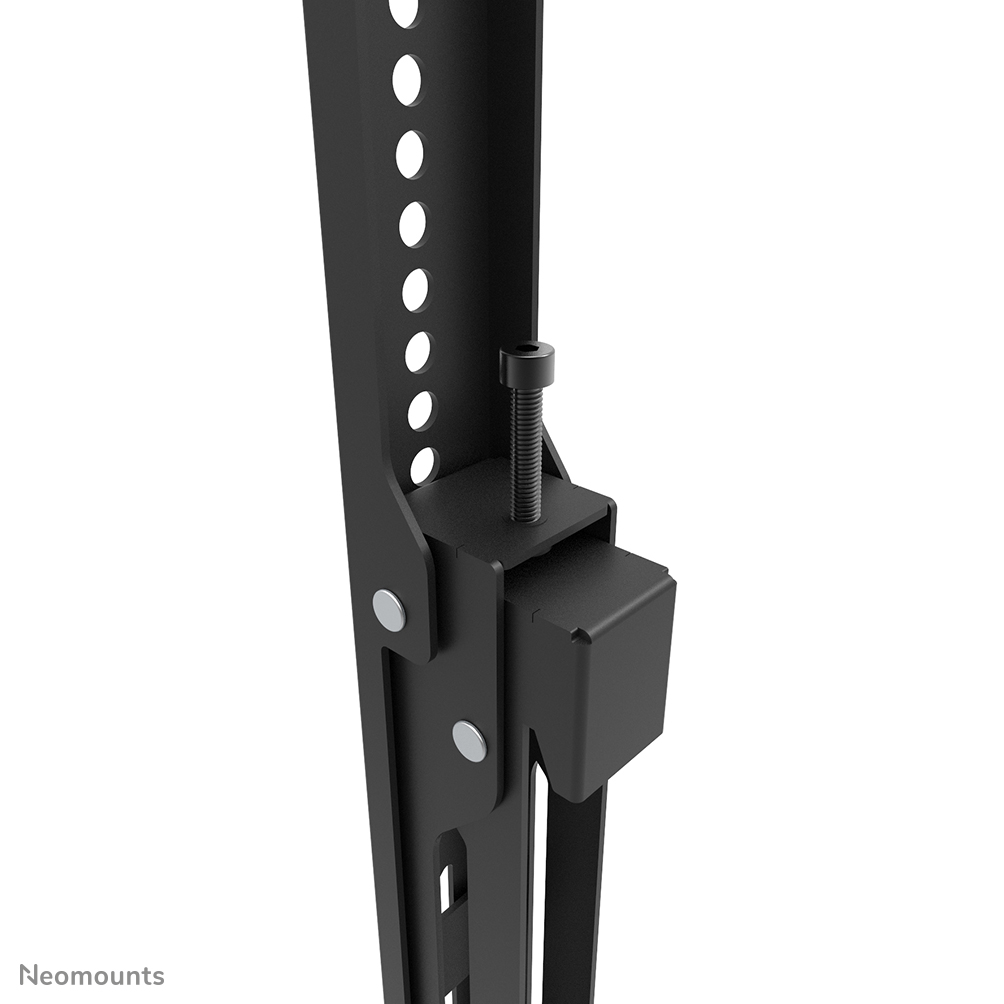

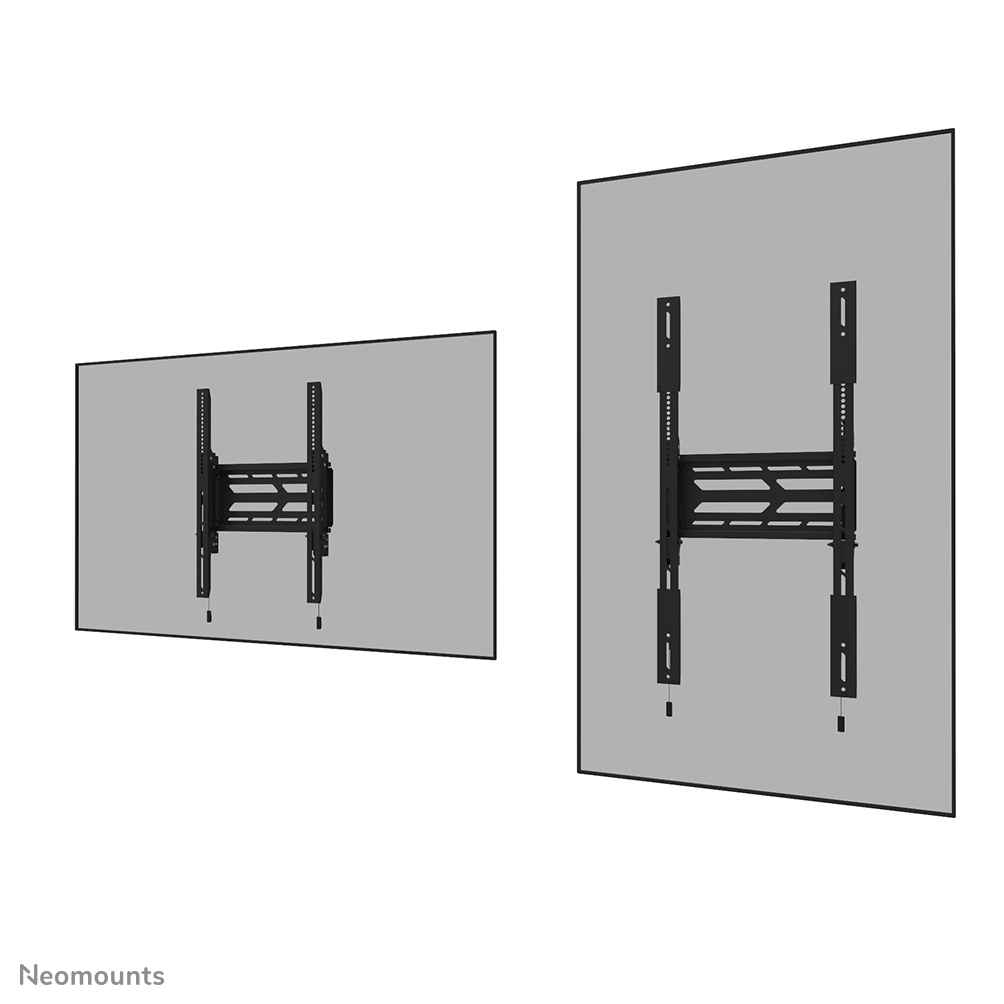

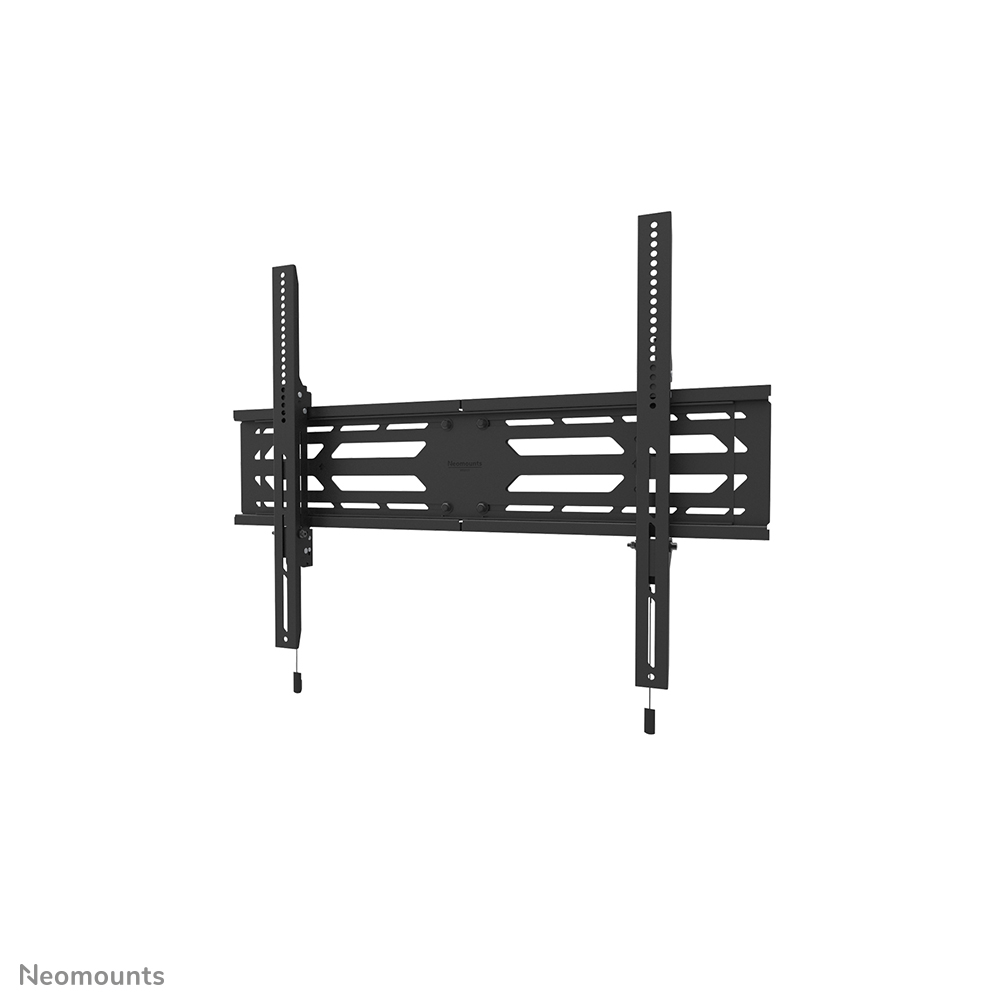

The Neomounts Select WL30S-950BL19 is a fixed heavy-duty wall mount for flat screens up to 110" with a maximum weight capacity of 160 kg. It is possible to install the screen in both portrait and landscape orientation. The mount features individual height adjustable brackets and level adjustment is available for the perfect installation. The WL30S-950BL19 has a depth of 6,5 cm and is, thanks to the included vertical extension brackets, suitable for screens that meet VESA hole pattern 100x100 to 1500x900 mm. Due to the unique extendable design, the mount can be adjusted to a wide range of screens dimensions; from 55" up to 110". It is possible to lock the mount using a padlock (not included). The mount features a nifty magnetic pull & release system, that allows you to attach the TV in a wink of an eye and secure the TV in safe and solid manner. Afterwards, the pull & release straps can be easily hidden behind the screen by clicking the magnet to the mount. A separate spirit level tool is included with the wall mount to ensure easy installation of the mount.
Read more

SpecificationsProduct informationProduct documentation

Specifications

General
Min. screen size*
:
55 inch
Max. screen size*
:
110 inch
Max. weight
:
160 kg
Screens
:
1
VESA pattern
:
100x100, 100x150, 100x200, 200x100, 200x200, 200x300, 200x400, 300x100, 300x200, 300x300, 300x900, 350x350, 400x200, 400x300, 400x400, 400x500, 400x600, 440x400, 460x640, 500x400, 600x200, 600x300, 600x400, 600x500, 600x600, 680x300, 800x200, 800x400, 800x500, 800x600, 800x800, 900x600, 1000x400, 1000x600, 1000x700, 1000x800, 1200x600, 1200x800, 1200x900, 1400x800, 1500x600 mm
VESA minimum
:
100x100
VESA maximum
:
1500x900
Distance to wall
:
6,7 cm

Functionality
Type
:
Fixed
Height adjustment
:
0-2 cm
Width adjustment
:
89,3-160 cm
Rotate (degrees)
:
+3°, -3°
Height
:
93,6 cm
Width
:
160 cm
Depth
:
6,7 cm
Adjustment type
:
Micro adjustment
Lockable
:
Lockable - Security screw included

Information
Article number
:
WL30S-950BL19

EAN
:
8717371449551

Color
:
Black

Main material
:
Steel

Warranty
:
5 year


*Please note: The inch sizes stated are just an indication, combined with the weight and VESA sizes. The maximum weight and VESA size are absolute restrictions for the products and should not be exceeded.
Min. screen size*55- 110 inch
VESA minimum100x100 - 1500x900
Height adjustment0-2 cm
Distance to wall6,7 cm
Rotate (degrees)+3°, -3°
Warranty5 year

Product information

The Neomounts Select WL30S-950BL19 is a fixed heavy-duty wall mount for flat screens up to 110" with a maximum weight capacity of 160 kg. It is possible to install the screen in both portrait and landscape orientation. The mount features individual height adjustable brackets and level adjustment is available for the perfect installation.

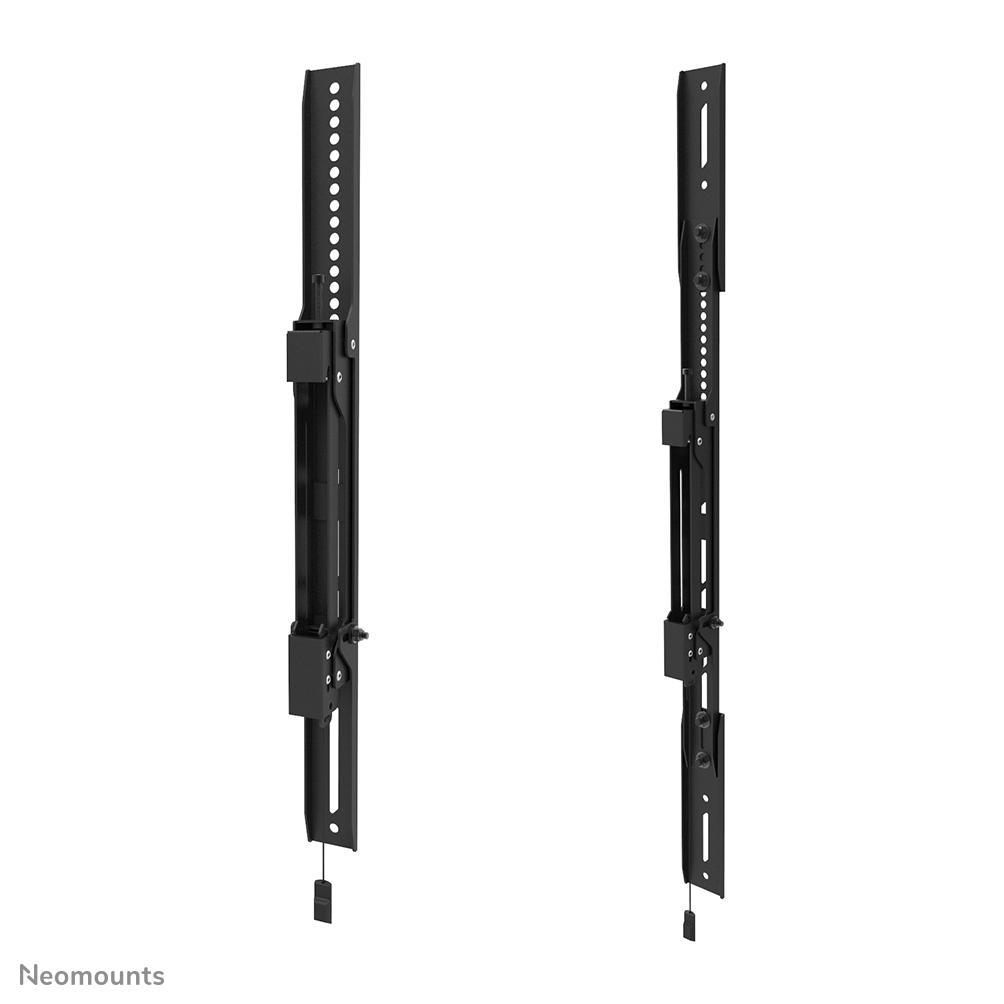

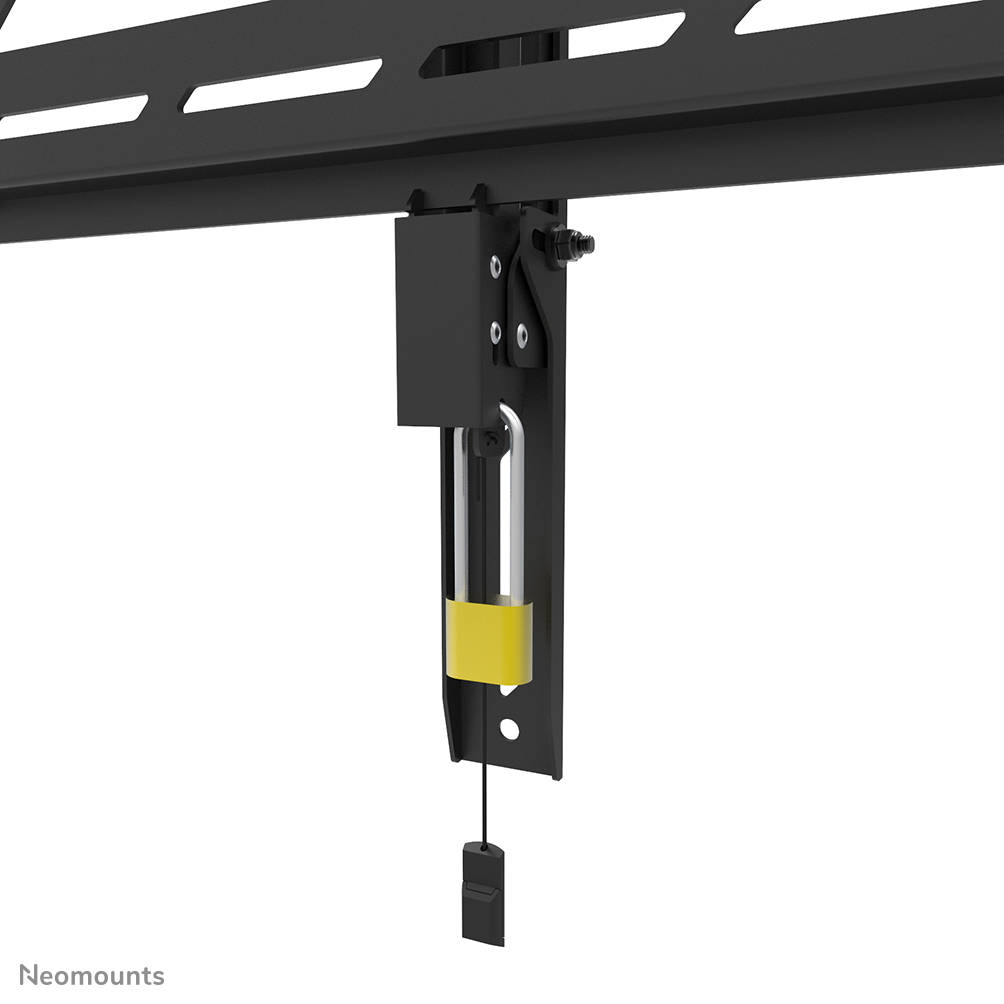

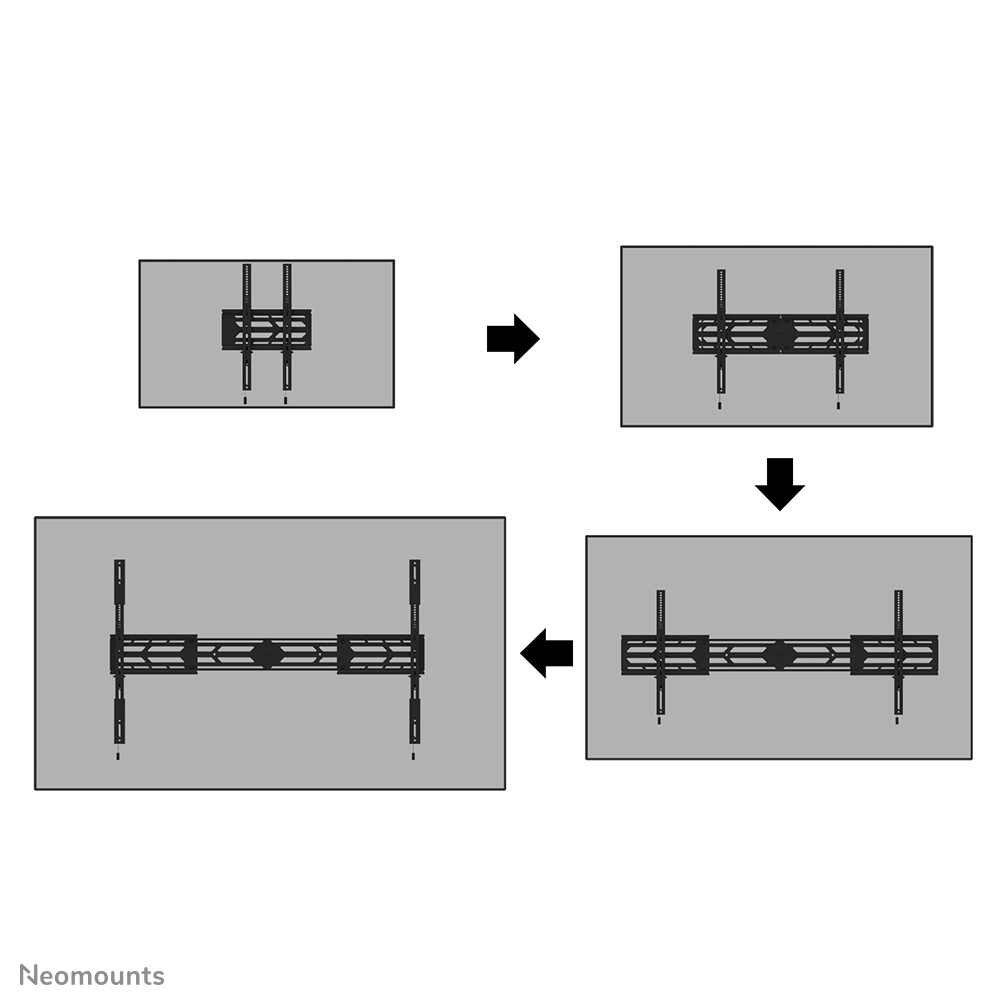

The WL30S-950BL19 has a depth of 6,5 cm and is, thanks to the included vertical extension brackets, suitable for screens that meet VESA hole pattern 100x100 to 1500x900 mm. Due to the unique extendable design, the mount can be adjusted to a wide range of screens dimensions; from 55" up to 110". It is possible to lock the mount using a padlock (not included).

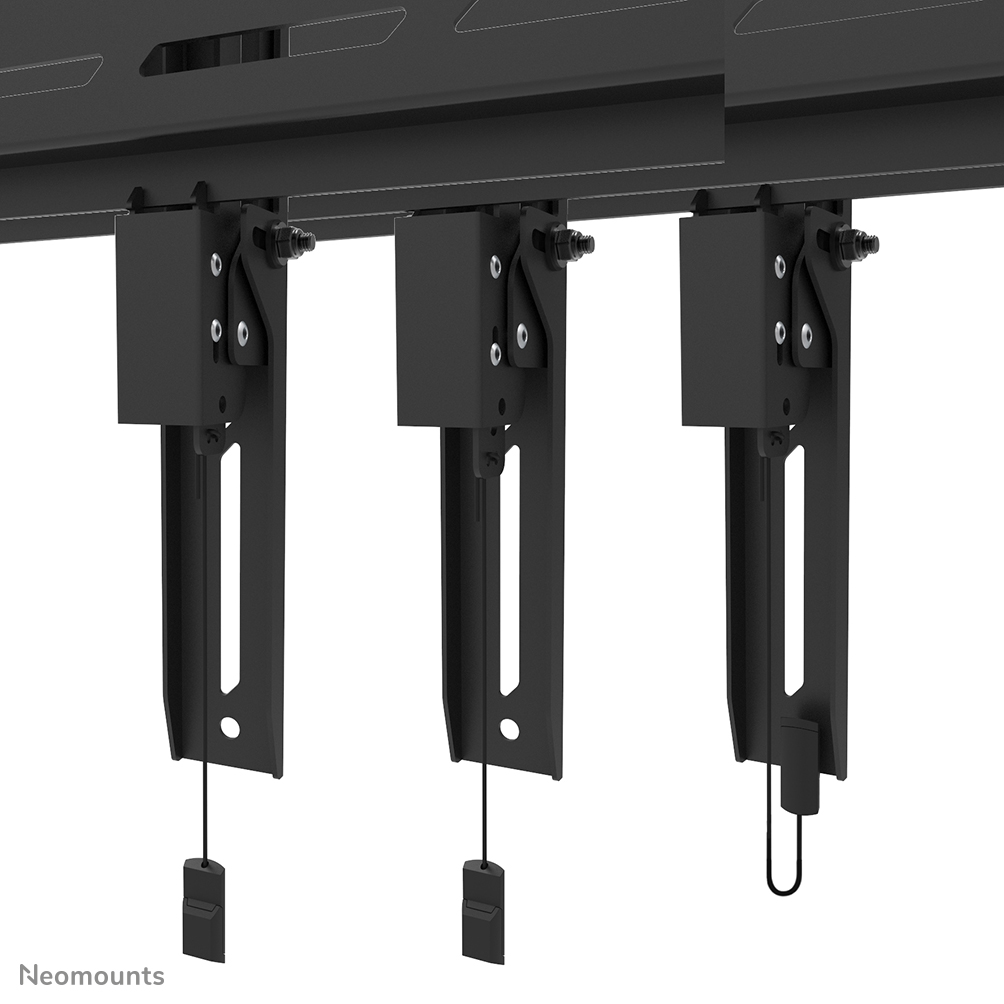

The mount features a nifty magnetic pull & release system, that allows you to attach the TV in a wink of an eye and secure the TV in safe and solid manner. Afterwards, the pull & release straps can be easily hidden behind the screen by clicking the magnet to the mount. A separate spirit level tool is included with the wall mount to ensure easy installation of the mount.

Product documentation

Download the available product documentation here. In case of any further questions please do not hesitate to contact our service & support desk by email: info@neomounts.com.

productsheet
Product sheet
manual
Manual
linedrawing

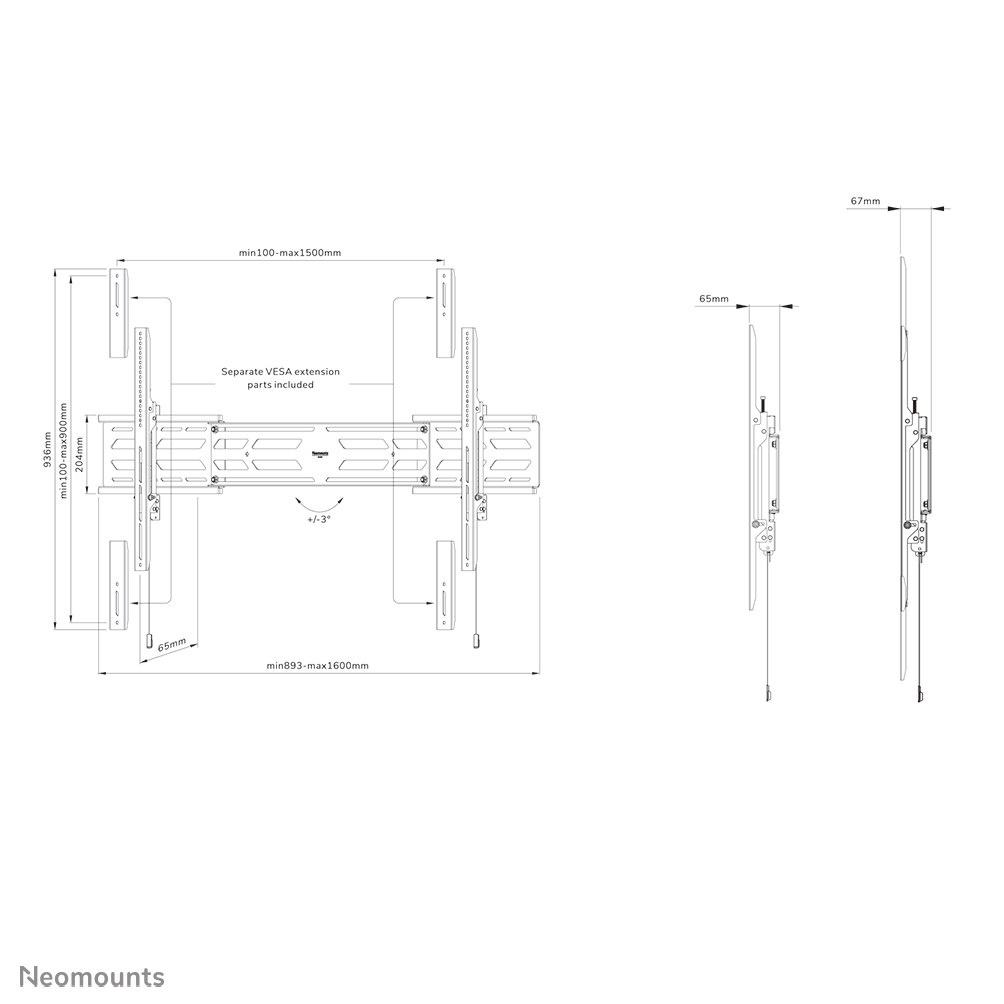

Line drawing
